Hazard Relay On-Vehicle Inspection

Check that relay clicks continuously when battery and tester are connected as shown in figure.

Unless a continued click sound is heard, replace relay.

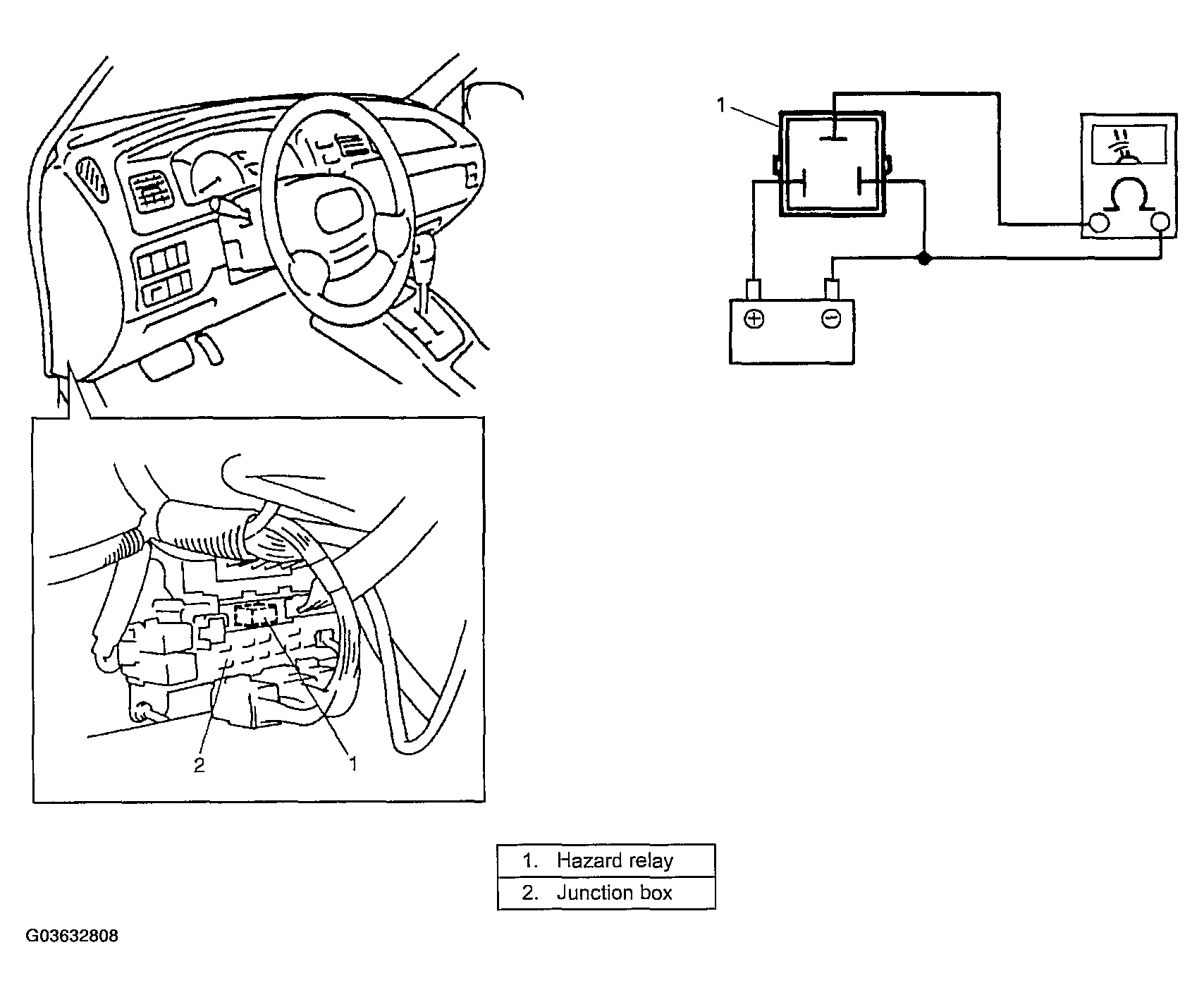

Fig 1: Inspecting Hazard Relay

Courtesy of SUZUKI OF AMERICA CORP.
