Cruise Cable Play Inspection and Adjustment
- Remove actuator cap.

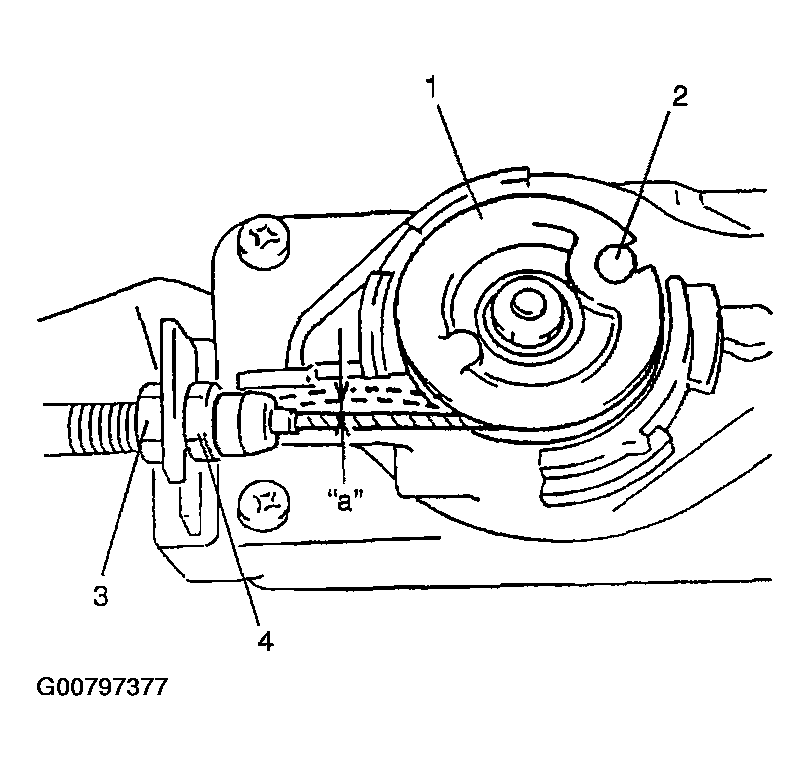

- With actuator lever (1) returned at original position (2) (Where lever does not move clockwise any further), check cruise cable for play. If it is out of specification, adjust it as follows.
Cruise cable play
"a": 1 - 2 mm (0.04 - 0.08 in.)
- Loosen cable lock nut (3).
- Adjust cable play to specified value by turning adjusting nut (4).
- Tighten lock nut (3) securely after adjustment.
