Transmission Range Switch (Park/Neutral Position Switch) Circuit Check

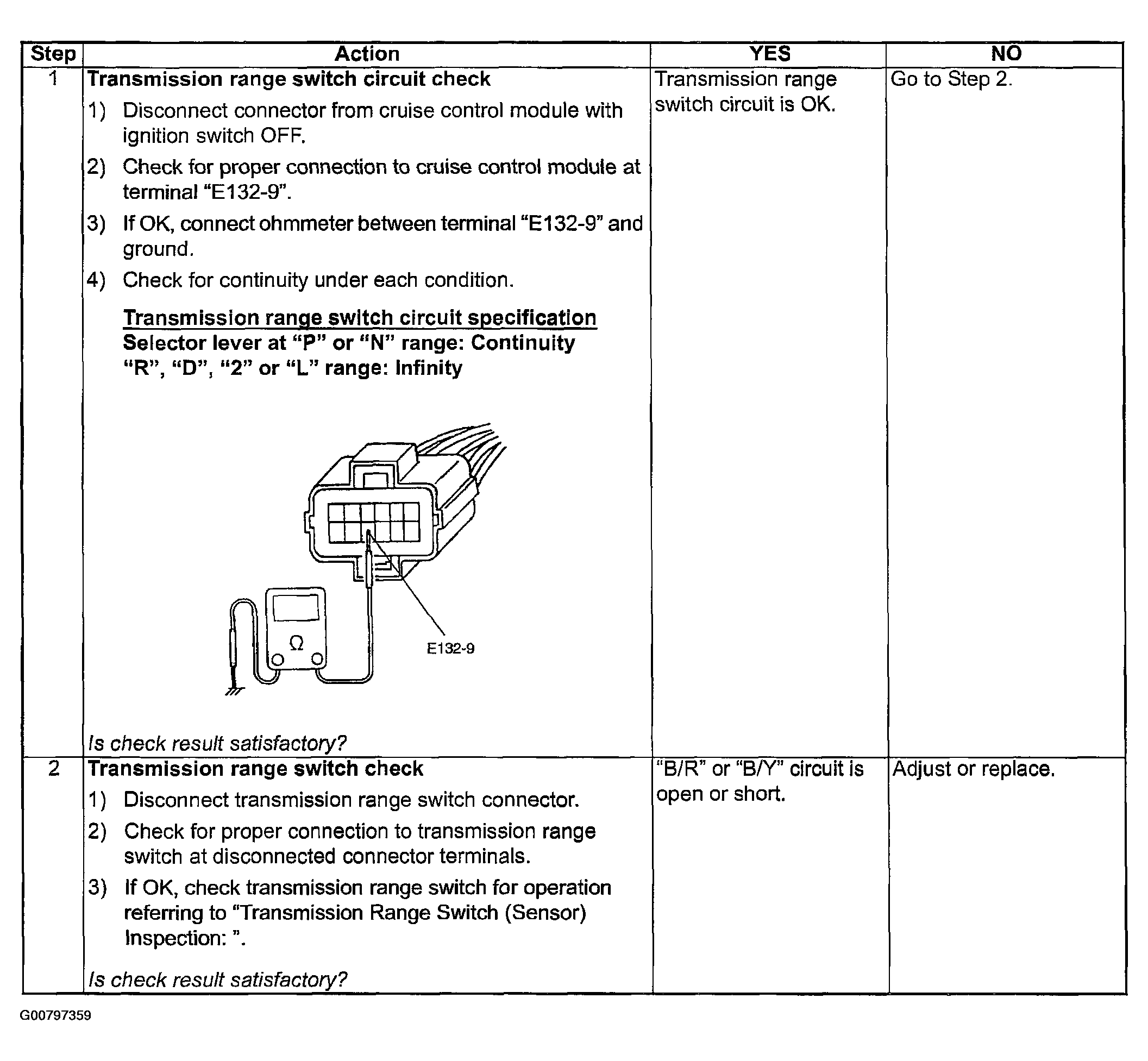

Fig 1: Transmission Range Switch (Park/Neutral Position Switch) Circuit Checking Chart
G00797359Courtesy of SUZUKI OF AMERICA CORP.
