Power Mode for H25 Engine

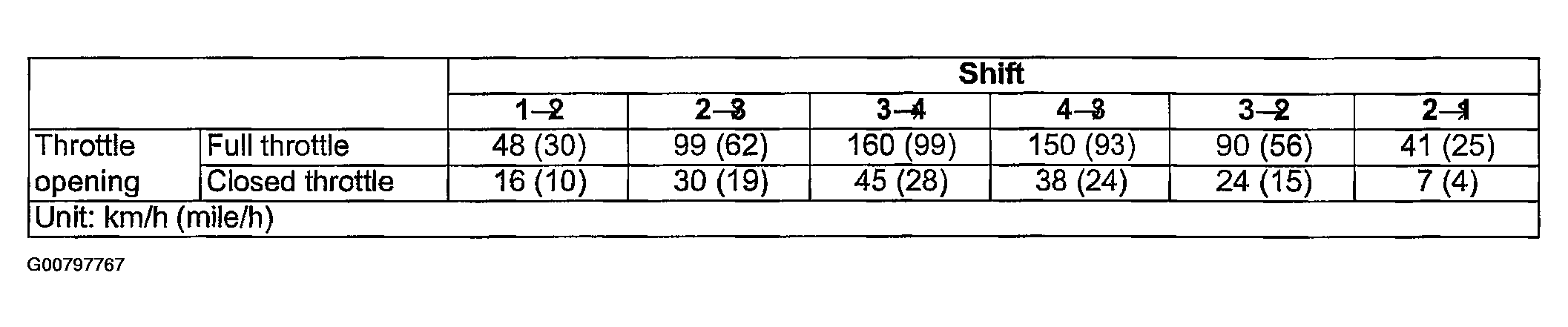

Fig 1: Shift Pattern (Power Mode For H25 Engine)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
