Center Support Components

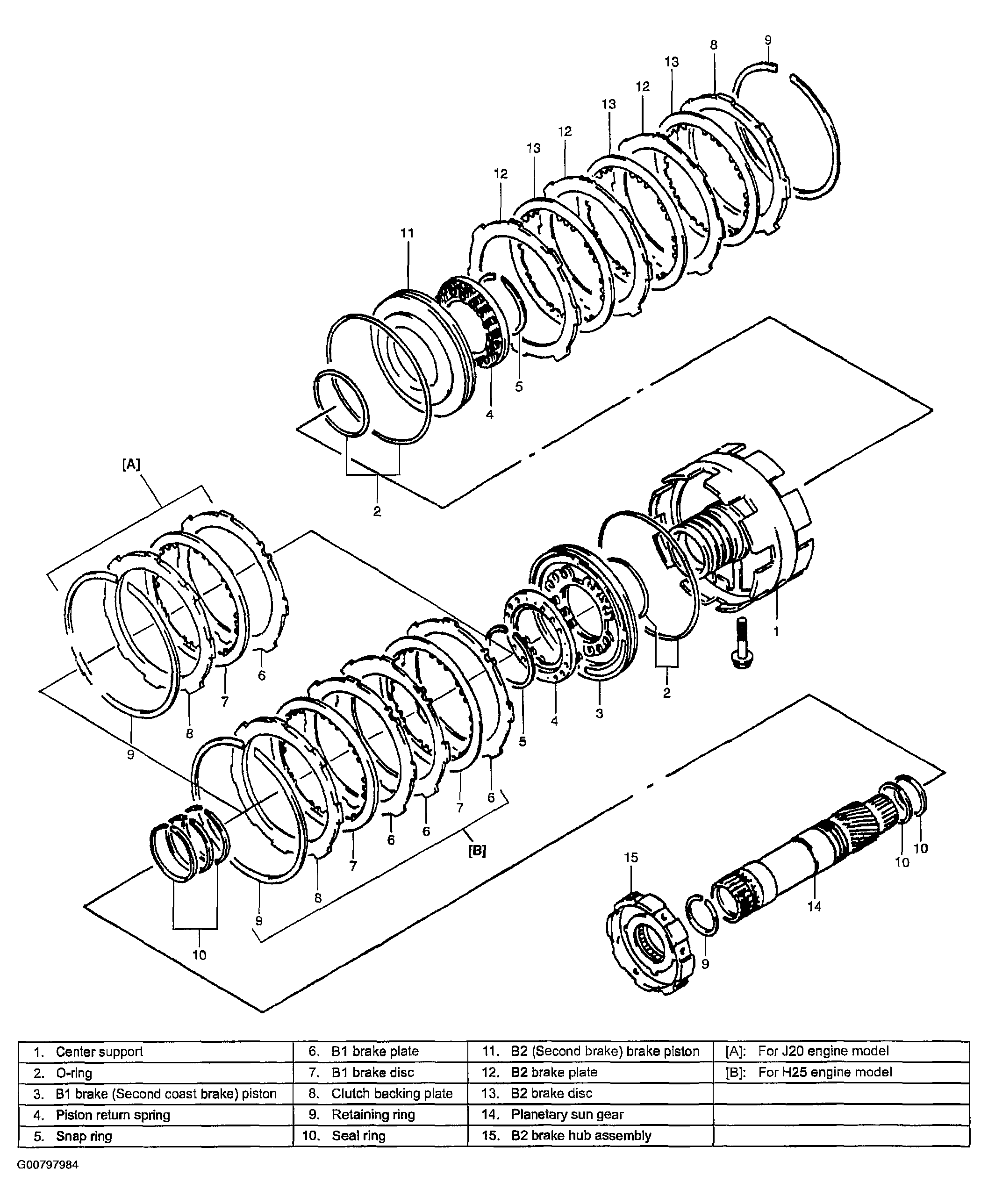

Fig 1: Identifying Center Support Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
