Automatic Transmission Unit Assembly

After applying A/T fluid to new O-rings, install them to reverse brake piston (3), reaction sleeve (2) and secondary reverse piston (1).

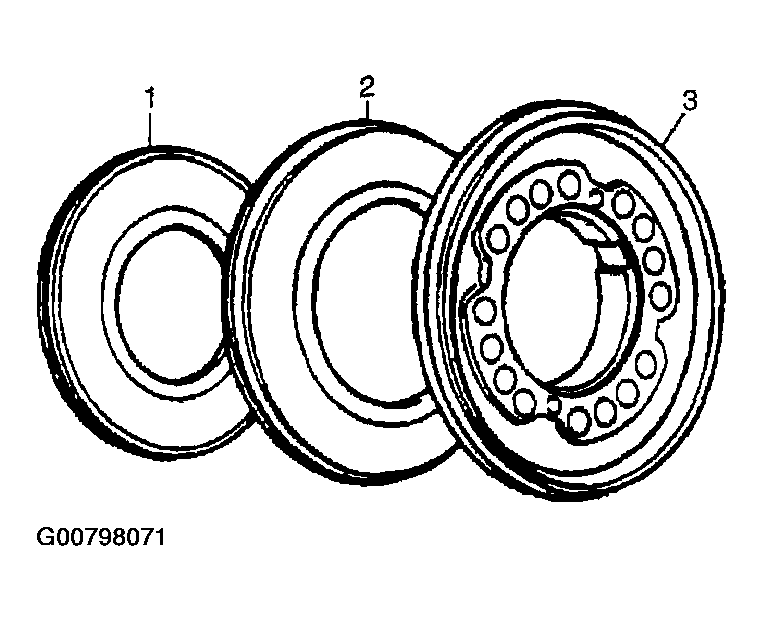

Fig 1: Identifying Reverse Brake Piston, Reaction Sleeve And Secondary Reverse Piston
Courtesy of SUZUKI OF AMERICA CORP.
Install reverse brake piston assembly and brake piston return spring to transmission case, using care not to damage O-ring. Then install snap ring (1) with special tool.
NOTE:
- Install so that opening in snap ring (1) will not align with any of 3 lugs of spring seat.
- Do not compress spring more than necessary and do not allow it fall or tilt.
Special tool

(A): 09926-98320

(B): 09941-84510

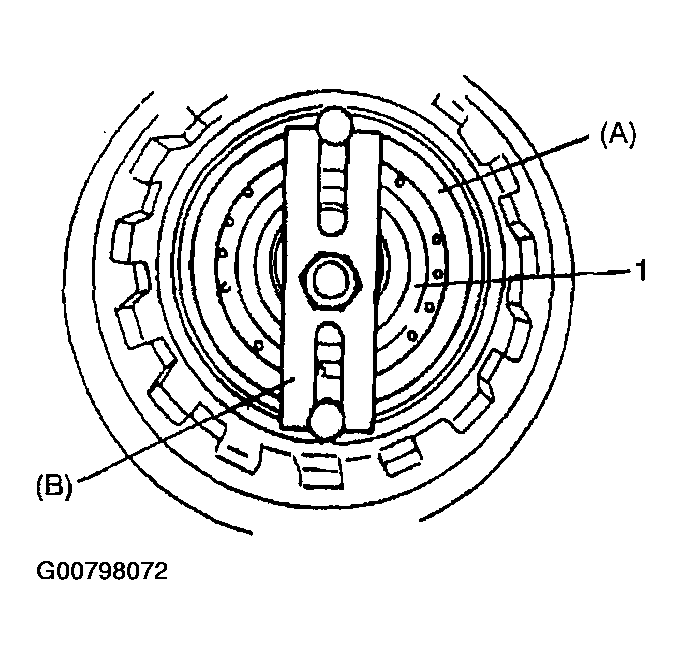

Fig 2: Identifying Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Prepare a stand as shown. It is necessary because work will be done with transmission case set upright from this step on.
NOTE:
- To protect transmission case against damage, spread cloth on stand where case contacts.
- A stand of such size as shown in the figure will facilitate work.
Fig 3: Identifying Transmission Stand Specification
Courtesy of SUZUKI OF AMERICA CORP.

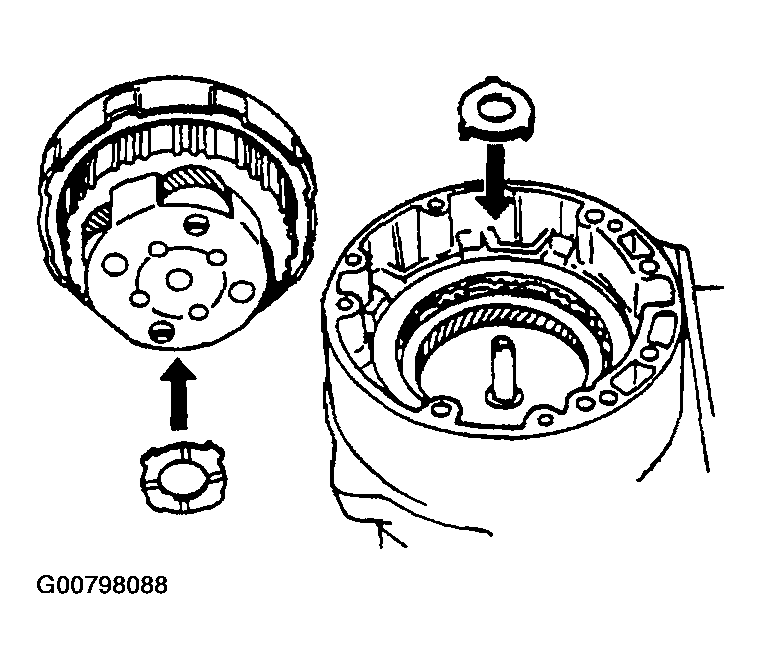

Install thrust output shaft bearing and thrust bearing output shaft race after lubricating them with grease.
NOTE: Make sure that thrust bearing output shaft race is installed in proper direction.

Fig 4: Installing Thrust Output Shaft Bearing And Thrust Bearing Output Shaft Race
Courtesy of SUZUKI OF AMERICA CORP.

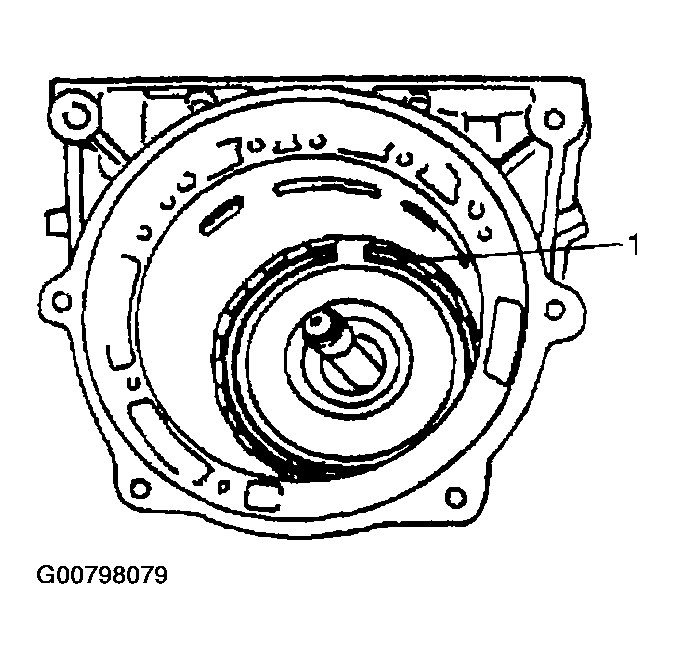

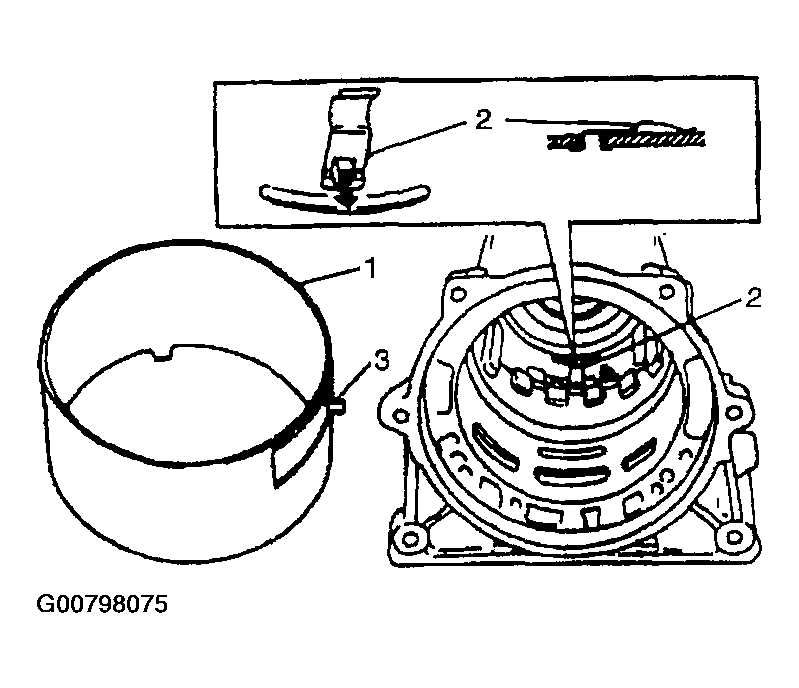

Install brake applying tube (1) so that its lug fits in a in transmission case. After installation, check that 4 lugs (3) along the underside of brake applying tube fit inside of reverse brake piston and leaf spring (2) is installed properly.

Fig 5: Identifying Brake Applying Tube, Lugs And Leaf Spring
Courtesy of SUZUKI OF AMERICA CORP.

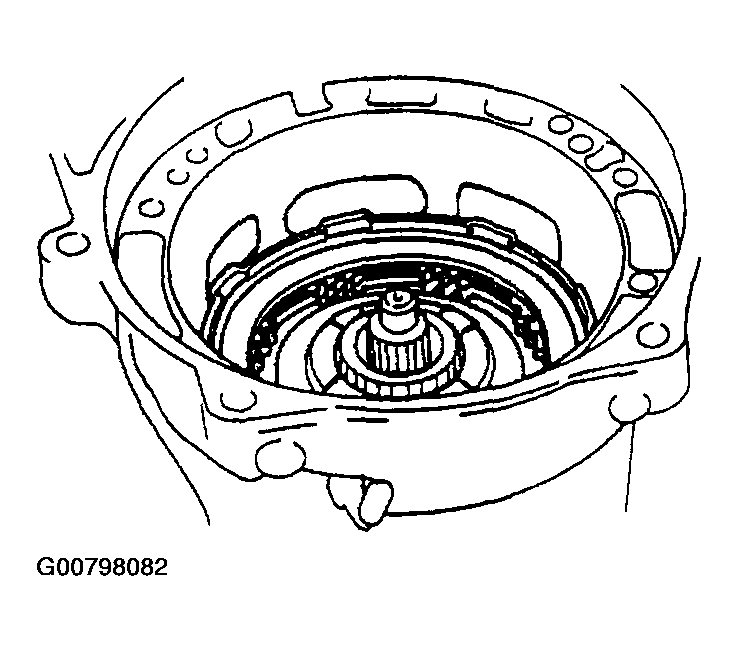

Remove reverse brake reaction plate of planetary gear assembly and align lugs of reverse brake plate, reverse brake disc and reverse brake packing plate. Install planetary gear assembly to transmission case so that aligned lugs fit in groove in transmission case.

Fig 6: Installing Planetary Gear Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Measure clearance between reverse brake plate and lugs of transmission case.
If measured value is less than standard range, it is possible that something is installed improperly or dust or fluid is on reverse brake disc, etc. If it exceeds standard range for J20 engine model, replace reverse brake disc, reverse brake plate or reverse brake backing plate. If it exceeds standard range for H25 engine model, adjust it to standard clearance with selective reverse brake backing plates as shown after making sure reverse brake disc, reverse brake plate and reverse brake backing plate are in good condition. If they are not in good condition, replace.

Standard clearance between reverse brake plate and lugs of transmission case

0.61 - 2.64 mm (0.024 - 0.104 in.)

Available plate thickness for H25 engine model only

3.25, 3.50, 3.75, 4.00, 4.25 mm (0.128, 0.138, 0.148, 0.157, 0.167 in.)

Fig 7: Measuring Clearance Between Reverse Brake Plate And Lugs Of Transmission Case
Courtesy of SUZUKI OF AMERICA CORP.
Install reverse brake reaction plate so that its lug with dent comes to the same position as leaf spring.

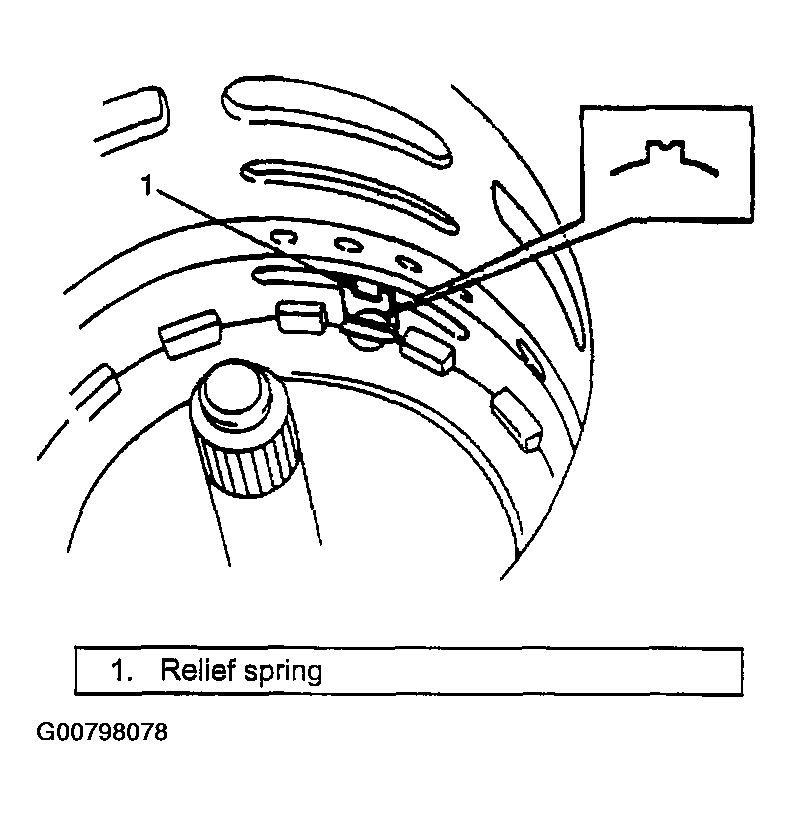

Fig 8: Installing Reverse Brake Reaction Plate
Courtesy of SUZUKI OF AMERICA CORP.

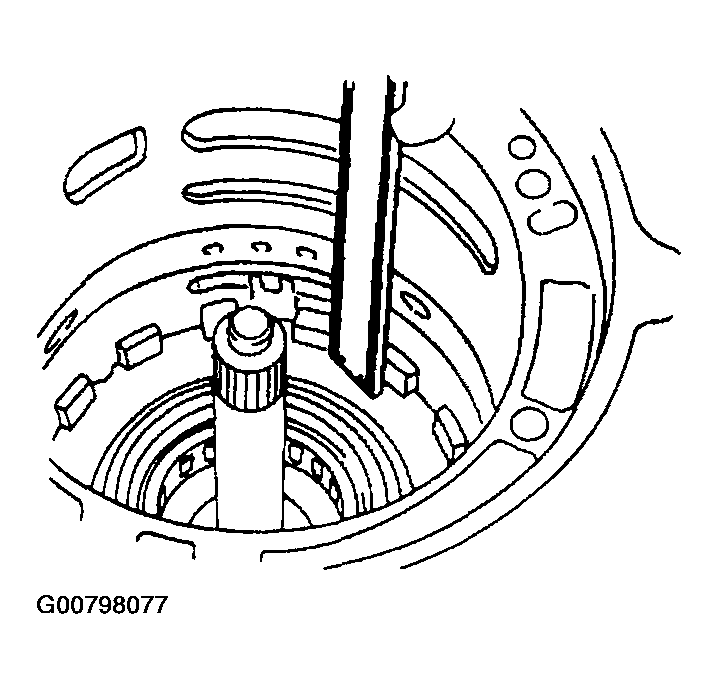

Using screwdriver with vinyl tape or the like wound at its tip, install retaining reaction plate ring (1). After installation, check that ring is in groove securely.

Fig 9: Installing Retaining Reaction Plate Ring
Courtesy of SUZUKI OF AMERICA CORP.
After confirming that lugs of all brake plates and brake discs are in grooves securely, hold retaining direct clutch ring (1) of planetary sun gear, install center support assembly by aligning fluid holes (2) in center support and transmission case.
NOTE: Unless retaining direct clutch ring of planetary sun gear is held, brake valve gets off center support and that will make it impossible to align fluid holes with bolt holes.

Fig 10: Identifying Retaining Direct Clutch Ring And Fluid Holes
Courtesy of SUZUKI OF AMERICA CORP.
Tighten center support bolts by certain amount at a time till specified tightening torque is obtained.
Tightening torque

Center support bolt: 26 N.m (2.6 kg-m, 19.0 lb-ft)

Fig 11: Tightening Center Support Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install direct clutch assembly by aligning splines in direct clutch cylinder with planetary sun gear.
NOTE: Ends of splines in direct clutch cylinder and planetary sun gear should come almost in match.

Fig 12: Installing Direct Clutch Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to forward clutch rear No. 1 race (1), thrust rear bearing (2), thrust bearing rear planetary ring race (3) and install thrust bearing planetary ring race (3) to direct clutch cylinder and forward clutch rear No. 1 race and thrust bearing to forward clutch hub.

Fig 13: Identifying Forward Clutch Rear Race, Thrust Rear Bearing, Thrust Bearing Rear Planetary Ring Race
Courtesy of SUZUKI OF AMERICA CORP.

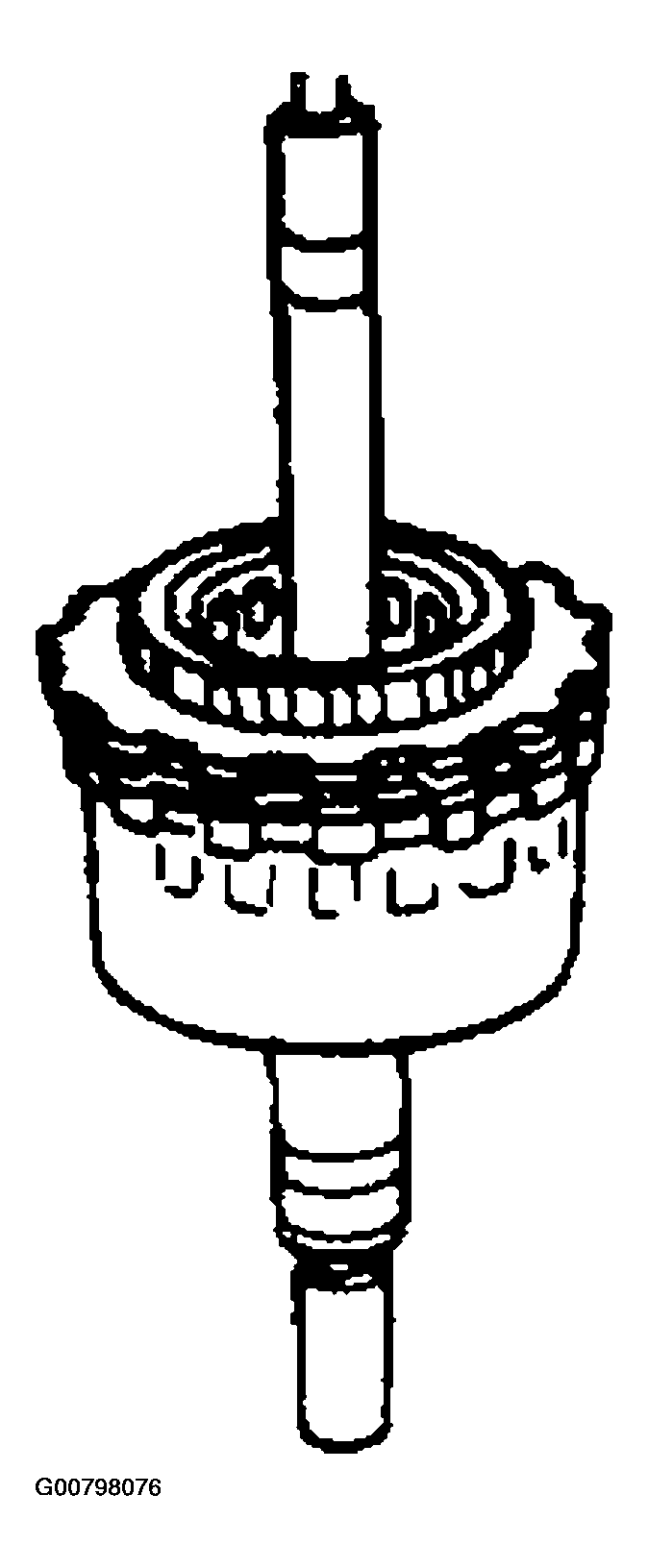

Install forward clutch assembly by putting all lugs of direct clutch disc hub together and matching them with groove cut in direct clutch input hub, and at the same time aligning splines in forward clutch hub with inner shaft.
NOTE: Use care not to let forward clutch rear No. 1 race and thrust bearing installed to forward clutch hub fall off.

Fig 14: Installing Forward Clutch Assembly
Courtesy of SUZUKI OF AMERICA CORP.
When clutch disc and plate have been replaced, check height difference between forward clutch input shaft and transmission case (1) by measuring as shown in the figure.
NOTE: If measured value is less than standard value, remove forward clutch assembly and install it again.

Standard height difference between forward clutch input shaft and transmission case

"a": About 2.0 mm (0.079 in.)

Fig 15: Checking Height Difference Between Forward Clutch Input Shaft And Transmission Case
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to thrust forward clutch bearing and install it to forward clutch input shaft. Also apply grease to thrust rear race and install it to O/D case.

Fig 16: Identifying Planetary Ring Gear Side And Forward Clutch Side
Courtesy of SUZUKI OF AMERICA CORP.
Install O/D case by aligning cutout in O/D case (1) and that in transmission case.
NOTE: Use care not to drop thrust rear race installed to O/D case.

Fig 17: Installing O/D Case
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to thrust planetary rear washer and install it to O/D planetary gear. Also apply grease to thrust planetary ring front race and install it to planetary ring gear and then install O/D input shaft assembly to O/D case.
NOTE:
- Fit claws of thrust planetary rear washer and thrust planetary ring front race into holes securely.
- Use care not to drop thrust planetary rear washer installed to O/D planetary gear.
Fig 18: Installing Planetary Rear Washer To O/D Planetary Gear
Courtesy of SUZUKI OF AMERICA CORP.
When clutch disc or plate has been replaced, check height difference between O/D case and O/D clutch cylinder by measuring it as shown in the figure.
NOTE: Measure at the highest point along inner circumference of O/D clutch cylinder.

Standard height difference between O/D case and O/D clutch cylinder

"a": About 3.5 mm (0.138 in.)

Fig 19: Checking Height Difference Between O/D Case And O/D Clutch Cylinder
Courtesy of SUZUKI OF AMERICA CORP.

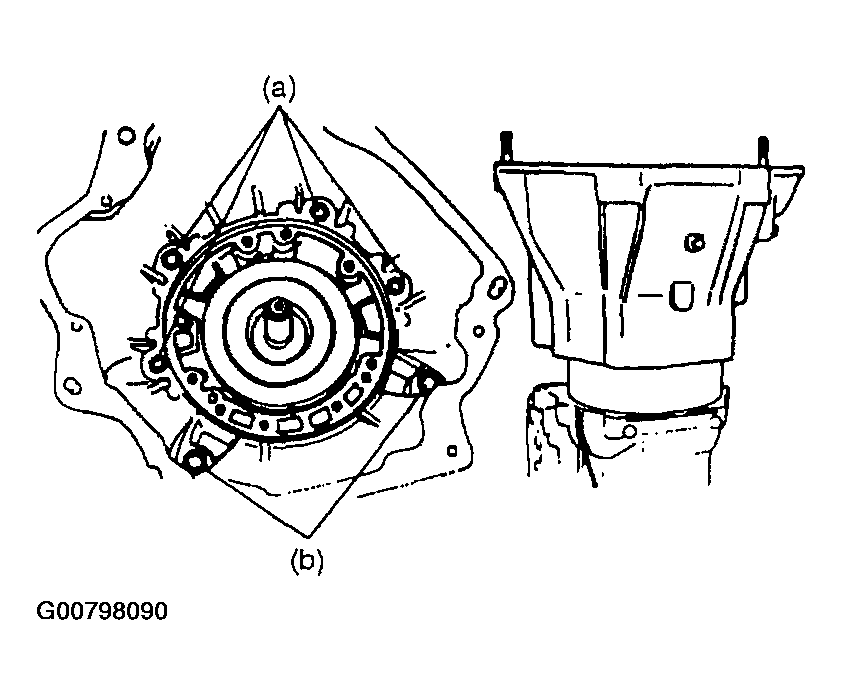

Apply A/T fluid to new housing O-ring and install it to O/D case. Then install converter housing and tighten housing bolt to specified torque.
Tightening torque

Torque converter housing bolt (a): 35 N.m (3.5 kg-m, 25.5 lb-ft)

Torque converter housing bolt (b): 58 N.m (5.8 kg-m, 42.0 lb-ft)

Fig 20: Tightening Torque Converter Housing Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to thrust front race and install it to O/D clutch cylinder.

Fig 21: Installing Thrust Front Race To O/D Clutch Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to front bearing assembly and install it to oil pump assembly. Also, apply A/T fluid to new oil pump cover O-ring and install it to oil pump assembly. Then install oil pump assembly aligning bolt holes in O/D case with those in transmission case oil pump assembly. Apply seal packing to oil pump assembly bolts and tighten them by certain amount of torque at each time one after another till specified torque is attained.
Tightening torque

Oil pump bolt (a): 22 N.m (2.2 kg-m, 16.0 lb-ft)

Fig 22: Tightening Oil Pump Bolt
Courtesy of SUZUKI OF AMERICA CORP.

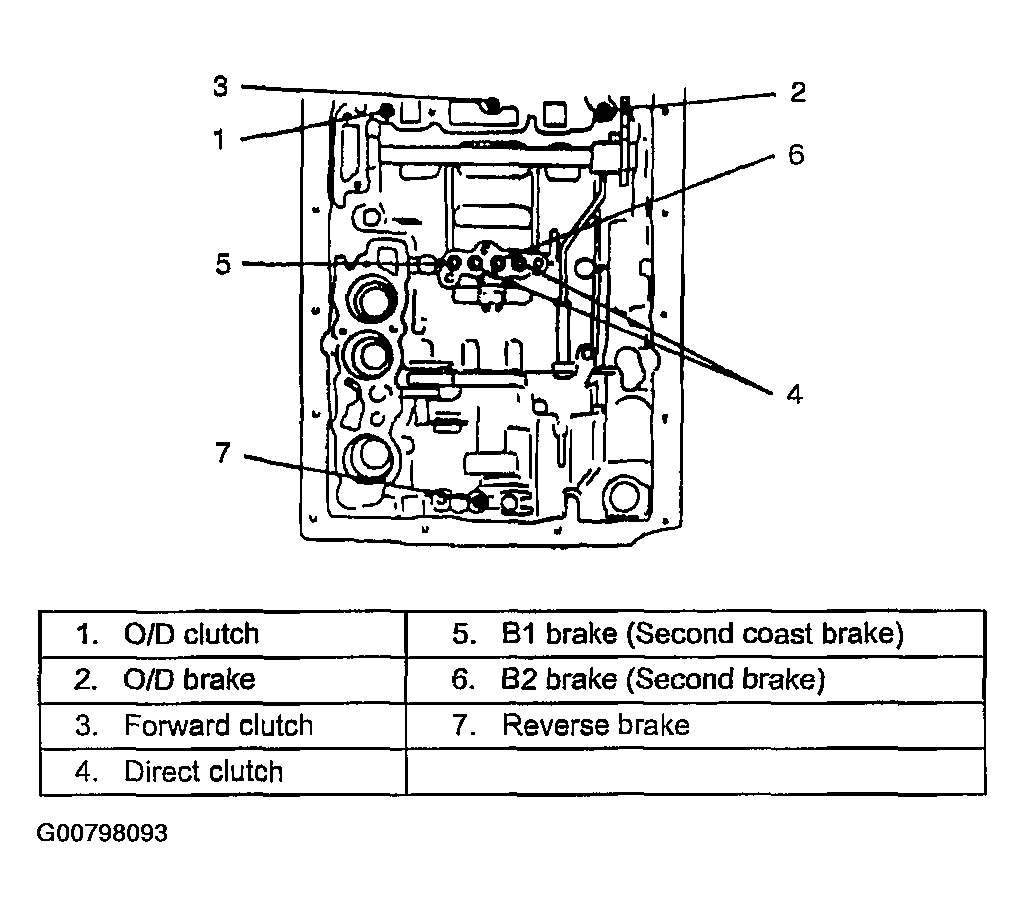

Apply 2 - 4 kg/cm² air pressure into fluid holes in the figure as numbered and check operation sound of each part.

Fig 23: Applying Air Pressure Into Fluid Holes
Courtesy of SUZUKI OF AMERICA CORP.
Take down transmission from stand and measure clearance in shaft direction by applying dial gauge (1) to output shaft as shown in the figure.
Standard clearance in shaft direction

0.3 - 0.9 mm (0.012 - 0.035 in.)

Fig 24: Measuring Standard Clearance In Shaft Direction
Courtesy of SUZUKI OF AMERICA CORP.
Check that inner shaft runs smoothly.
Install parking lock pawl (1), pawl pin (2) and pawl spring (3) to transmission case.

Fig 25: Installing Parking Lock Pawl, Pawl Pin And Pawl Spring
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to lip of new oil lip seal and drive in oil lip seal with special tool till it contacts transmission case.
Special tool

(A): 09943-88211

Fig 26: Identifying Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
After installing new sleeve cover to manual shift lever (1), install manual shift shaft (2) and manual shift lever (1) to transmission case.

Fig 27: Installing Manual Shift Shaft And Manual Shift Lever To Transmission Case
Courtesy of SUZUKI OF AMERICA CORP.
Align hole in manual shift shaft with that in manual shift lever and drive in new manual shift lever pin (1).

Fig 28: Aligning Hole In Manual Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Align hole in sleeve cover with dent in manual shift lever and caulk securely with pin punch (1). Then check that manual shift shaft turns smoothly.

Fig 29: Aligning Hole In Sleeve Cover
Courtesy of SUZUKI OF AMERICA CORP.
With parking lock rod (1) installed to manual shift lever, place parking lock rod (1) on parking lock pawl (2) as shown in the figure. Then install pawl bracket and tighten bracket screw to specified torque.
Tightening torque

Pawl bracket screw: 7.5 N.m (0.75 kg-m, 5.5 lb-ft)

Fig 30: Tightening Pawl Bracket Screw
Courtesy of SUZUKI OF AMERICA CORP.
Apply A/T fluid to new throttle cable O-ring (2) and install it to throttle cable then connect throttle cable (1) to transmission case (3).
NOTE: Do not turn transmission case toward position where throttle cable is connected so as to protect retainer of throttle cable.

Fig 31: Installing Throttle Cable O-Ring To Throttle Cable
Courtesy of SUZUKI OF AMERICA CORP.

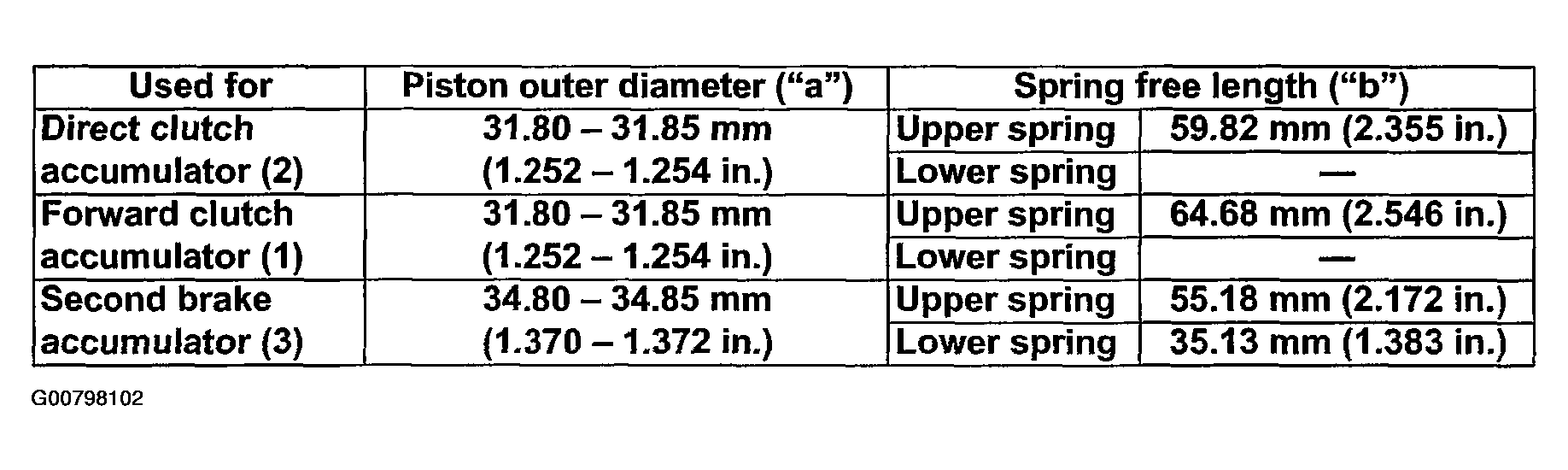

Apply A/T fluid to new O-ring and spring and install them to accumulator piston and install accumulator piston to transmission case.

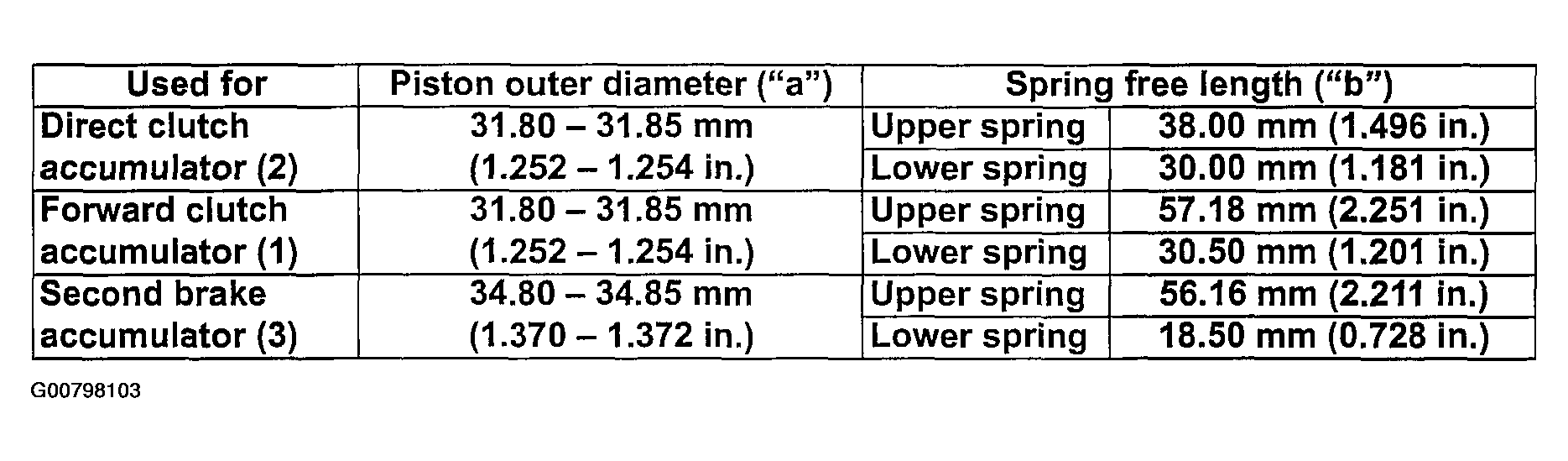

Accumulator piston and spring specification (for J20 engine model)

Fig 32: Accumulator Piston And Spring Specification (For J20 Engine Model)
Courtesy of SUZUKI OF AMERICA CORP.

Accumulator piston and spring specification (for H25 engine model)

Fig 33: Accumulator Piston And Spring Specification (For H25 Engine Model)
Courtesy of SUZUKI OF AMERICA CORP.

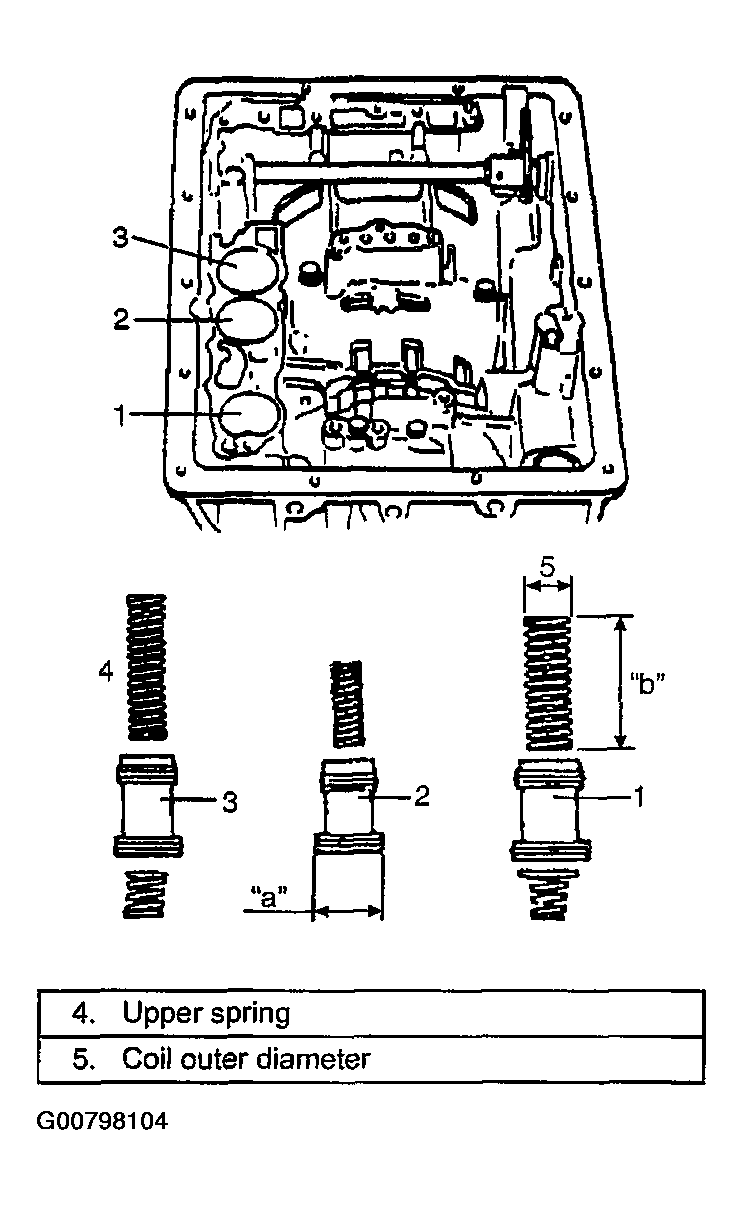

Fig 34: Identifying Accumulator Piston And Spring
Courtesy of SUZUKI OF AMERICA CORP.
Lift valve body a little and install nipple of throttle cable to throttle valve cam.

Fig 35: Installing Nipple Of Throttle Cable To Throttle Valve Cam
Courtesy of SUZUKI OF AMERICA CORP.
After confirming that accumulator piston is pushed all the way down, match pin of manual shift lever with groove in manual valve.

Fig 36: Identifying Groove In Manual Valve
Courtesy of SUZUKI OF AMERICA CORP.

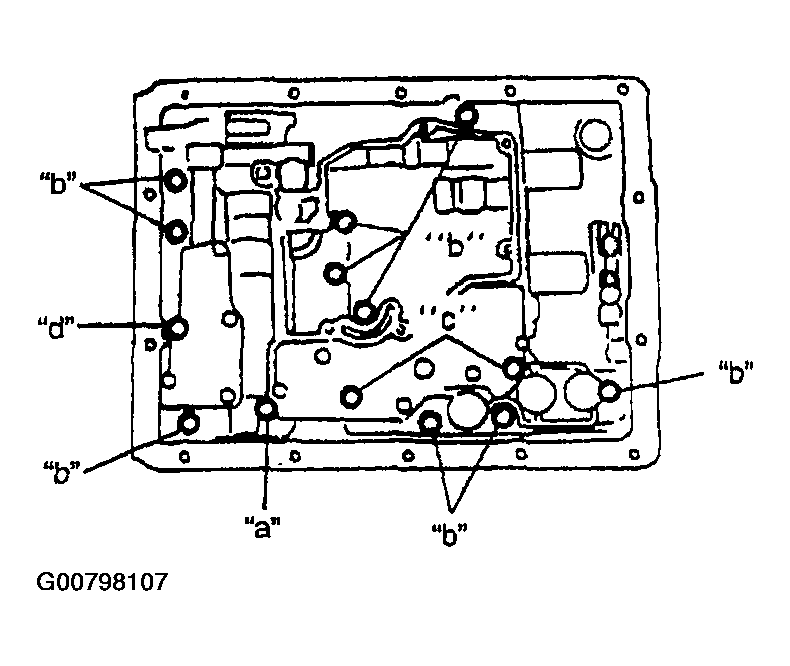

Fix valve body by using bolts with each nominal length as indicated in the figure and tightening to specified torque.
Tightening torque

Valve body bolt: 10 N.m (1.0 kg-m, 7.5 lb-ft)

Valve body bolt nominal length

"a": 25 mm (0.98 in.)

"b": 30 mm (1.18 in.)

"c": 47 mm (1.85 in.)

"d": 60 mm (2.36 in.)

Fig 37: Tightening Valve Body Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Install new gaskets, oil screen spacer and oil screen.
Tightening torque

Oil screen bolt: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)
Lubricate new O-ring with A/T fluid and attach it to grommet of solenoid wire harness. Then connect solenoid wire harness to transmission case and fix it with solenoid wire harness clamp. Connect each connector to solenoid. And install new gasket and brake applying cover.
Tightening torque

Brake applying cover bolt: 10 N.m (1.0 kg-m, 7.5 lb-ft)

Fig 38: Tightening Brake Applying Cover Bolt
Courtesy of SUZUKI OF AMERICA CORP.

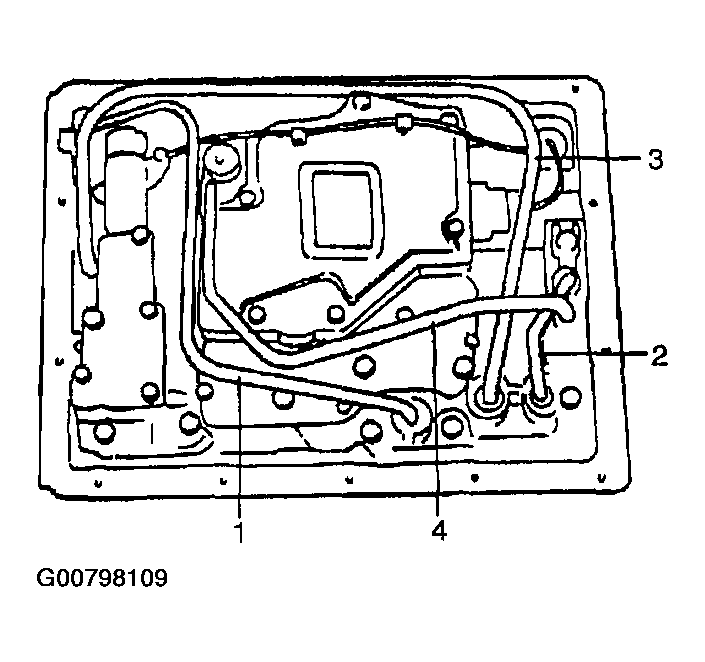

Using a plastic hammer, connect forward clutch applying tube (1), lube applying tube (2), reverse brake applying tube (3) and brake applying tube (4) in such order as shown in the figure.

Fig 39: Connecting Forward Clutch Applying Tube, Lube Applying Tube, Reverse Brake Applying Tube
Courtesy of SUZUKI OF AMERICA CORP.

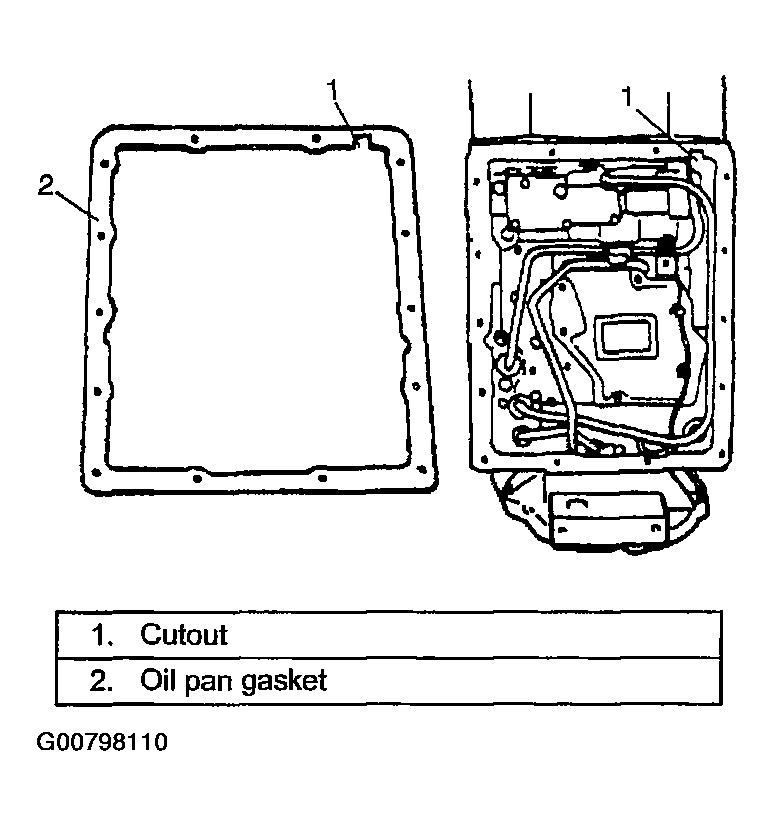

Install 2 oil pan magnets to transmission oil pan in such way that they do not interfere with oil tubes and install transmission oil pan with new oil pan gasket.
NOTE: Align cutout in oil pan gasket with that in transmission case.

Tightening torque

Transmission oil pan bolt: 4.5 N.m (0.45 kg-m, 3.5 lb-ft)

Fig 40: Tightening Transmission Oil Pan Bolt
Courtesy of SUZUKI OF AMERICA CORP.
With wood rough key attached to output shaft, install sensor rotor by aligning its key groove with wood rough key and install C-ring by using special tool.
Special tool

(A): 09920-76010

Fig 41: Identifying Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Perform the following procedure.
1. Clean mating surface of transmission case (1) and adapter case (2) and apply sealant "A" to adapter case (2).
  "a": Sealant 99000-31110

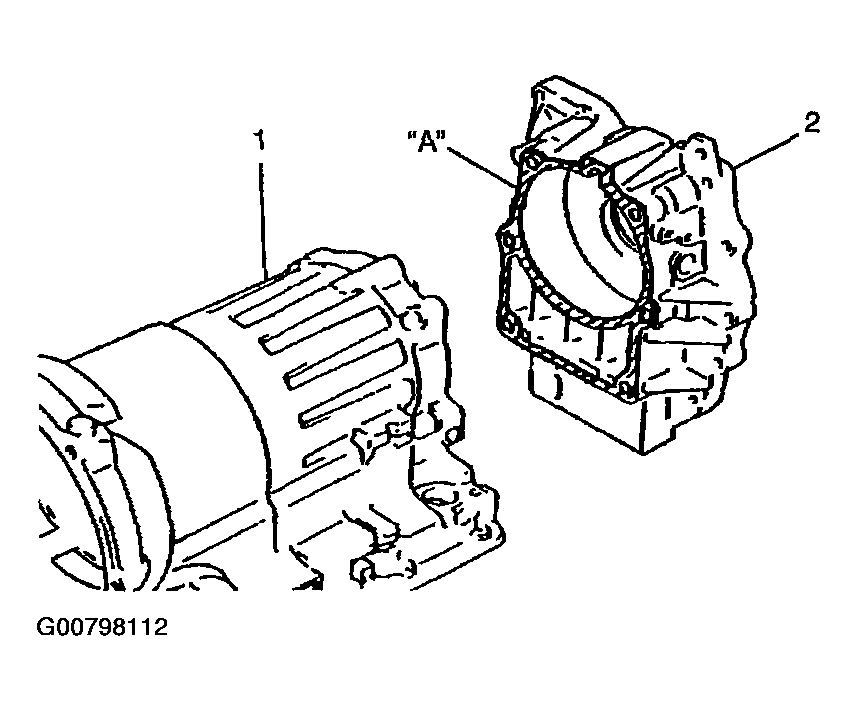

  Fig 42: Identifying Transmission Case, Adapter Case And Apply Sealant
  Courtesy of SUZUKI OF AMERICA CORP.

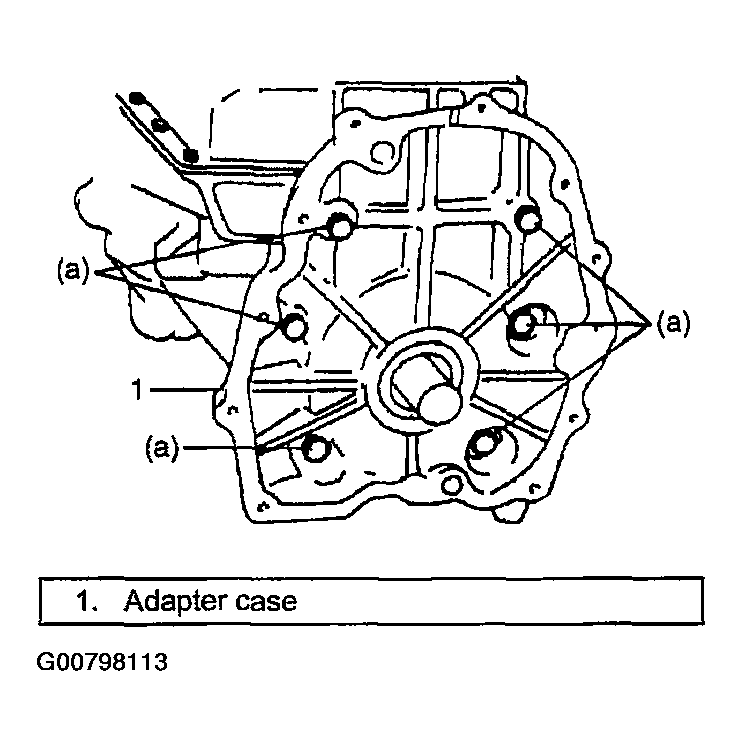

2. Tighten adapter case bolts to specified torque.
  Tightening torque

  Adapter case bolt (a): 42 N.m (4.2 kg-m, 30.5 lb-ft)

  Fig 43: Tightening Adapter Case Bolt
  Courtesy of SUZUKI OF AMERICA CORP.
Apply A/T fluid to new O-ring and install it to vehicle speed sensor (1) and then install vehicle speed sensor (1) to adapter case (2).

Fig 44: Installing Vehicle Speed Sensor To Adapter Case
Courtesy of SUZUKI OF AMERICA CORP.
After turning manual shift shaft fully rearward, turn it back by 2 notches and set it to "N" range. Then install shift switch, lock washer and set nut and tighten set nut. After tightening it, bend claws of lock washer.
Tightening torque

Manual shift shaft set nut (a): 4 N.m (0.4 kg-m, 3.0 lb-ft)
With neutral reference line (1) and cut groove (2) in switch aligned, tighten lock bolt.
Tightening torque

Shift switch lock bolt (b): 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

Fig 45: Tightening Shift Switch Lock Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Confirm that torque converter is fully fitted in transmission. Confirmation can be done by measuring dimension between end surface of housing case (2) and drive plate installation seat.
Standard dimension between end surface of case housing and drive plate installation seat "A"

17.3 mm (0.68 in.) for J20 engine model

17.4 mm (0.69 in.) for H25 engine model
Check that torque converter turns smoothly and apply grease to center piece (1) of torque converter.

Fig 46: Measuring Dimension Between End Surface Of Housing Case And Drive Plate Installation Seat
