Fuel Pump Circuit Check: Troubleshooting

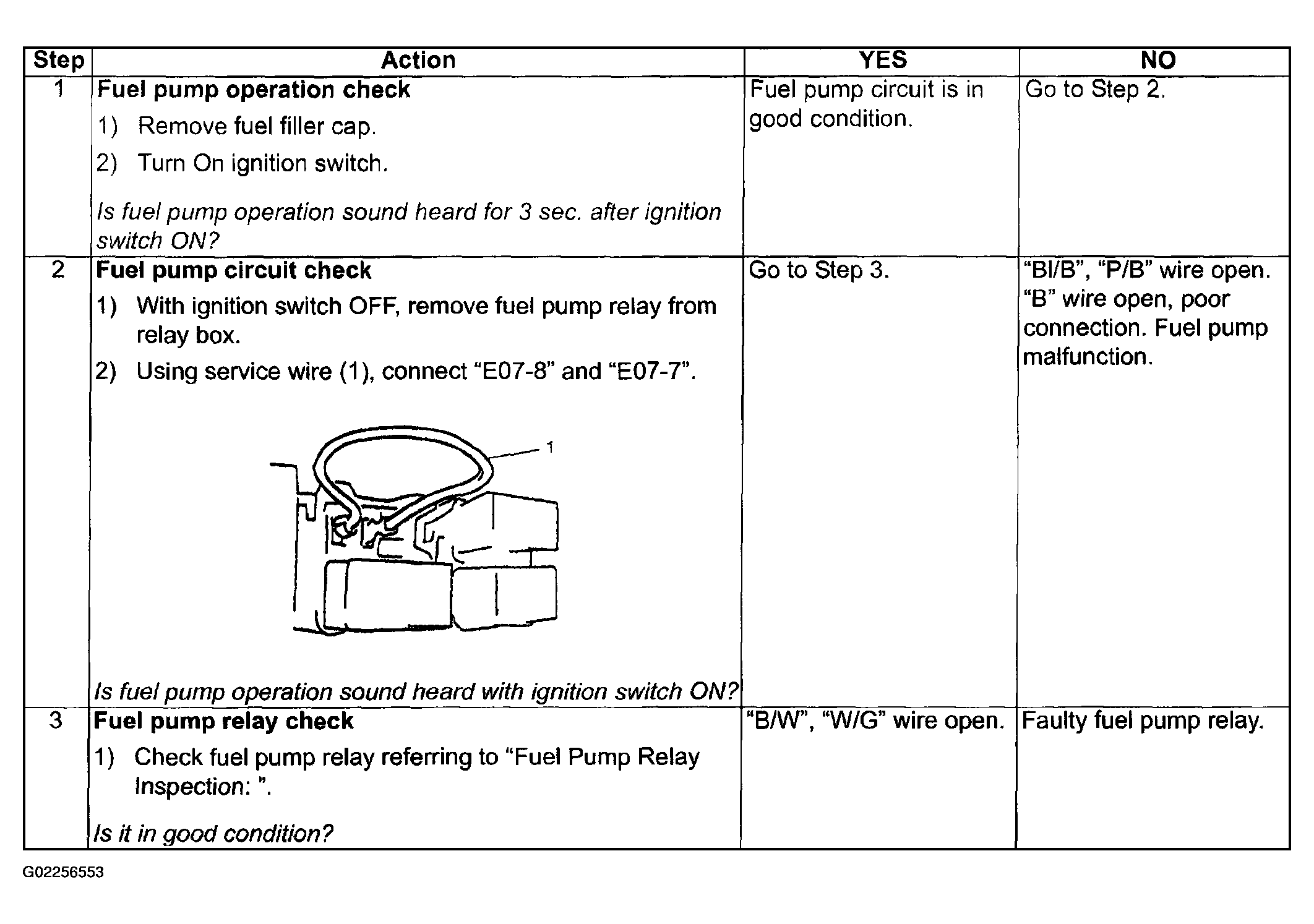

Fig 1: Fuel Pump Circuit Troubleshooting Chart

G02256553

Courtesy of SUZUKI OF AMERICA CORP.
