Fuel Injector Circuit Check: Wiring Diagram

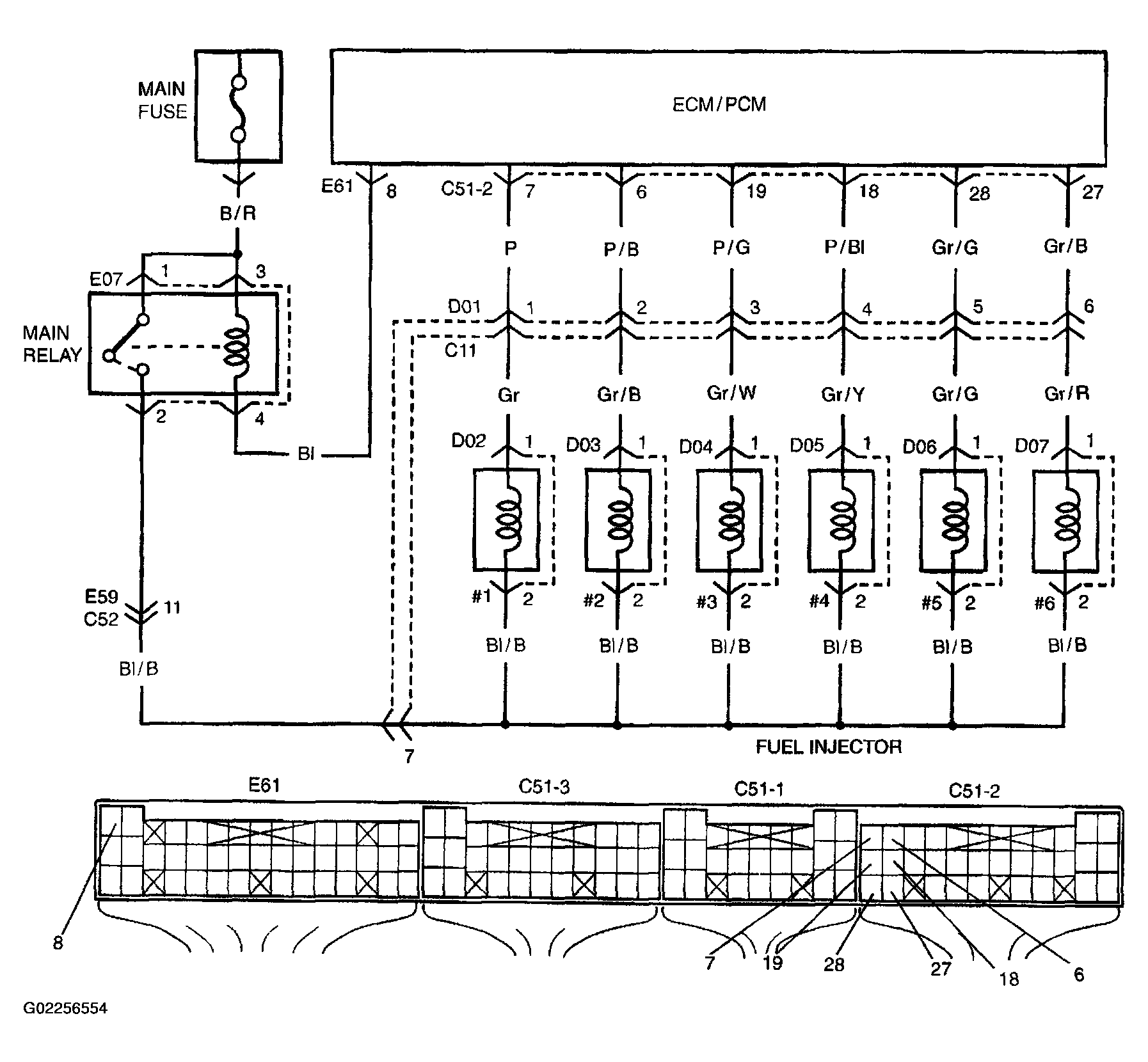

Fig 1: Fuel Injector Circuit Wiring Diagram

G02256554

Courtesy of SUZUKI OF AMERICA CORP.
