Fuel Injector Circuit Check: Troubleshooting

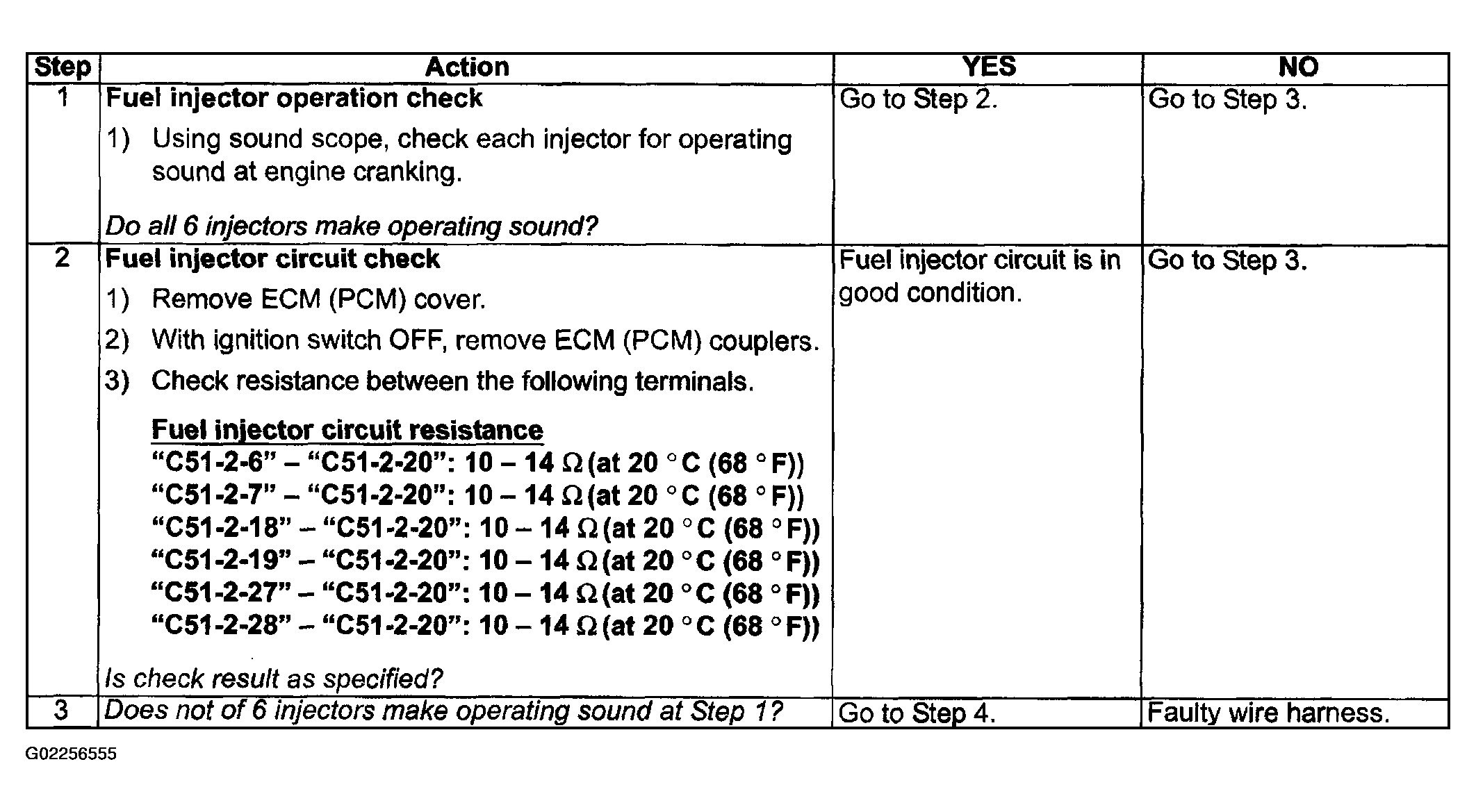

Fig 1: Fuel Injector Circuit Troubleshooting Chart (1 Of 2)
G02256555Courtesy of SUZUKI OF AMERICA CORP.

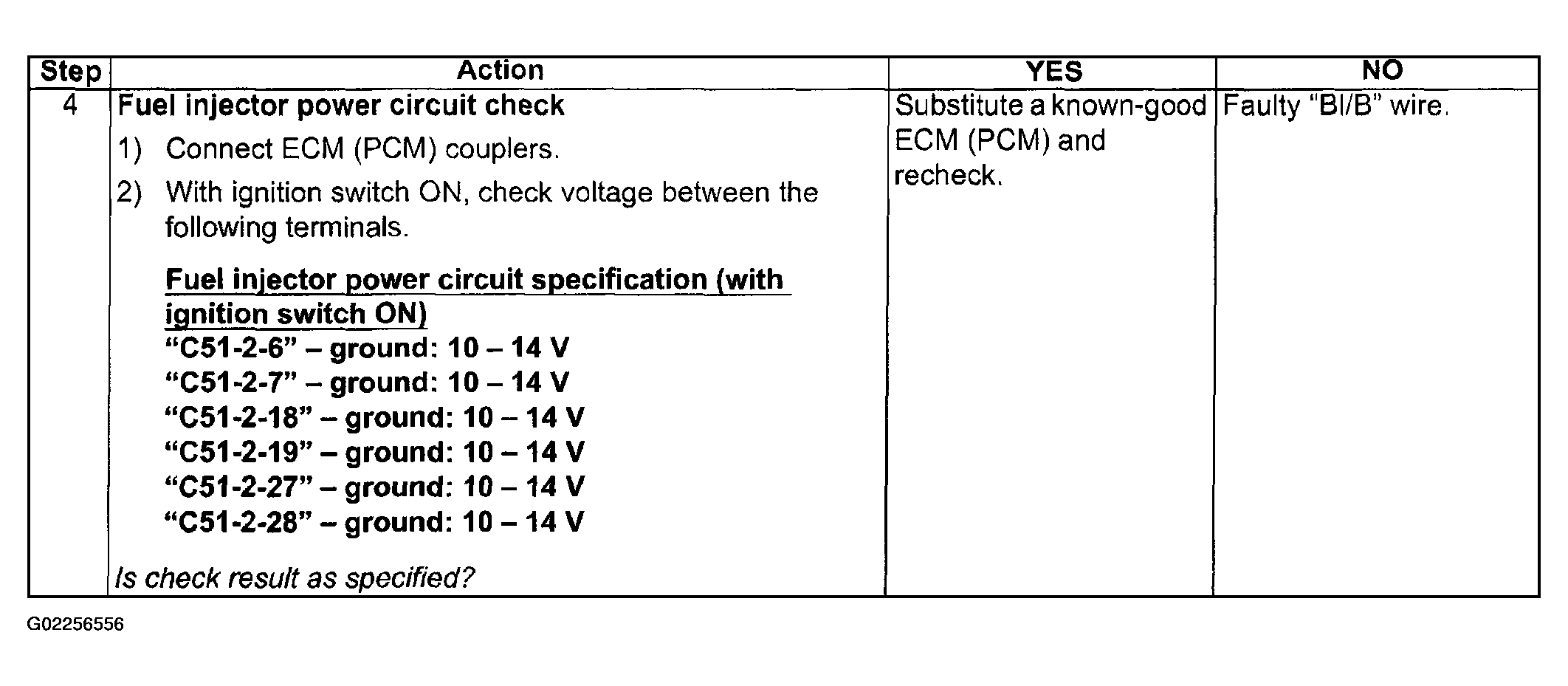

Fig 2: Fuel Injector Circuit Troubleshooting Chart (2 Of 2)
G02256556Courtesy of SUZUKI OF AMERICA CORP.
