DTC Troubleshooting

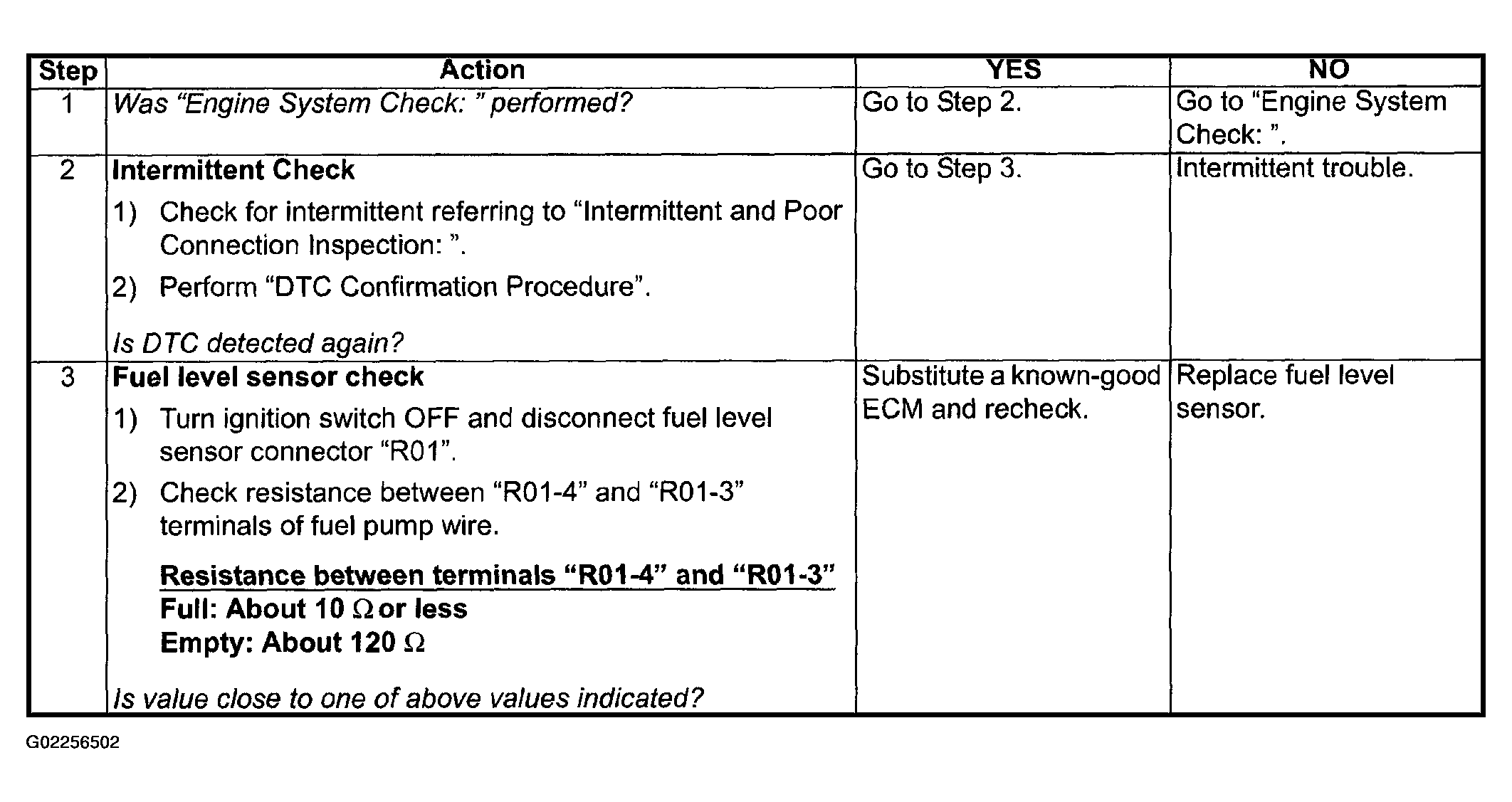

Fig 1: DTC P0464: Fuel Level Sensor Circuit Intermittent Troubleshooting Chart
G02256502Courtesy of SUZUKI OF AMERICA CORP.
