DTC Detecting Condition and Trouble Area

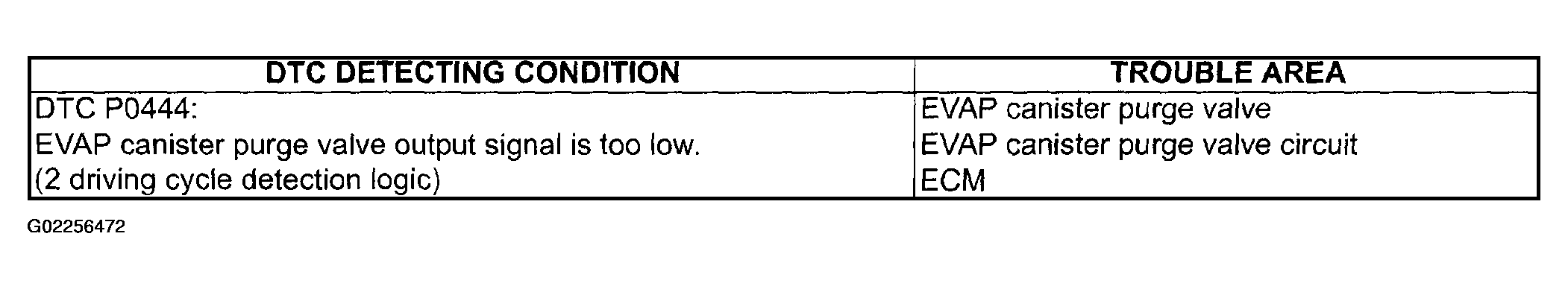

Fig 1: DTC Detecting Condition & Trouble Area (1 Of 2)
G02256472Courtesy of SUZUKI OF AMERICA CORP.

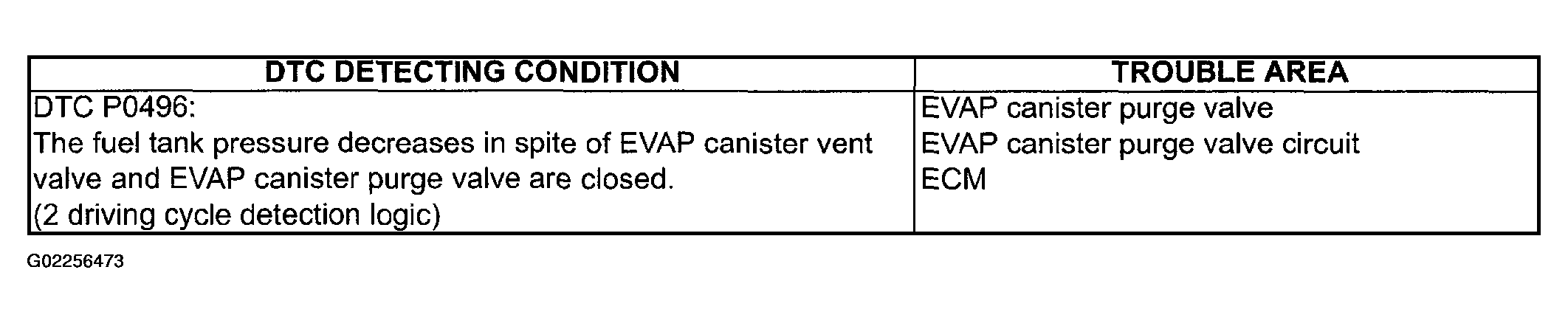

Fig 2: DTC Detecting Condition & Trouble Area Chart (2 Of 2)
G02256473Courtesy of SUZUKI OF AMERICA CORP.
