DTC Troubleshooting

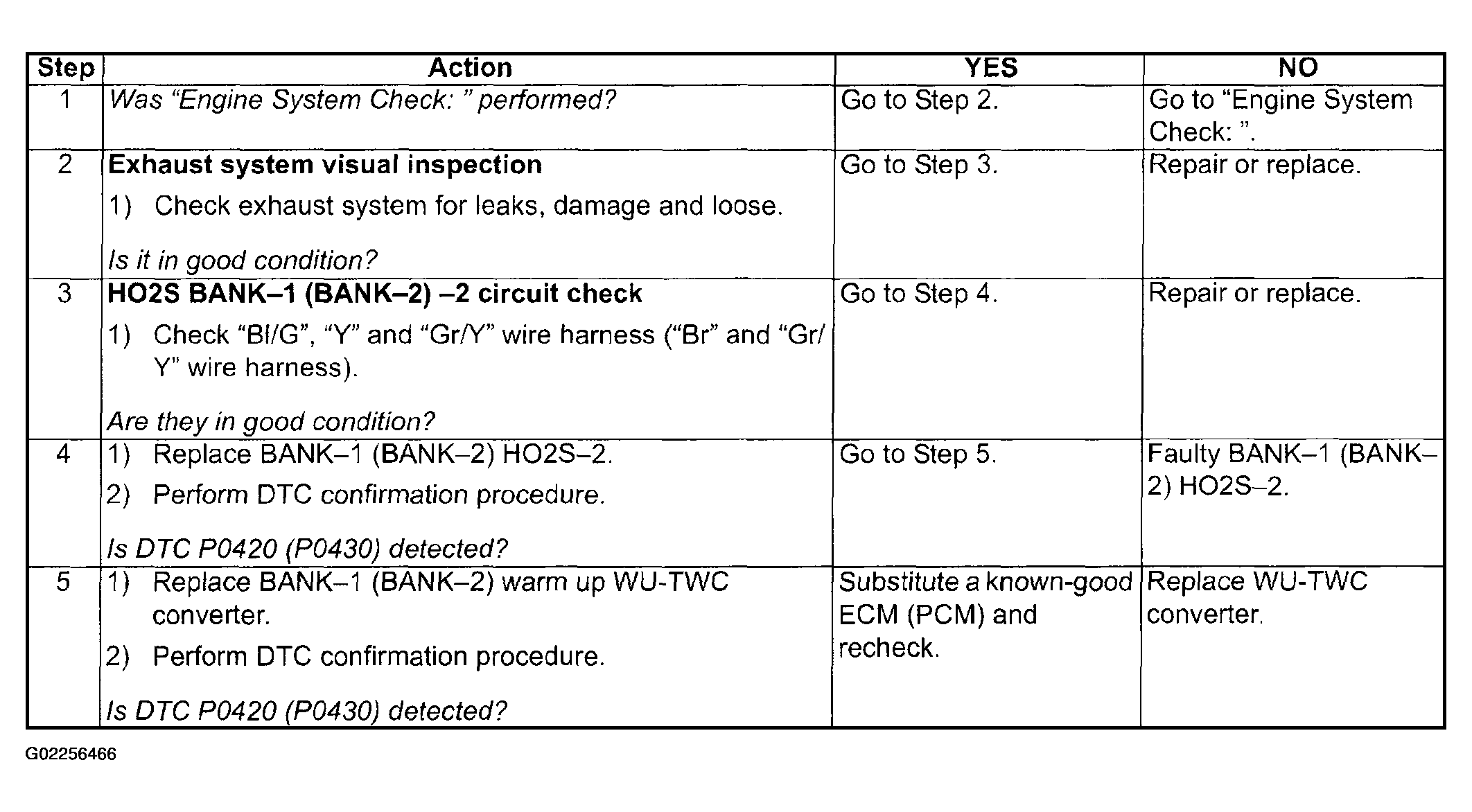

Fig 1: DTC P0420 / P0430: Catalyst System (Bank-1/-2) Efficiency Below Threshold Troubleshooting Chart
G02256466Courtesy of SUZUKI OF AMERICA CORP.
