DTC Troubleshooting

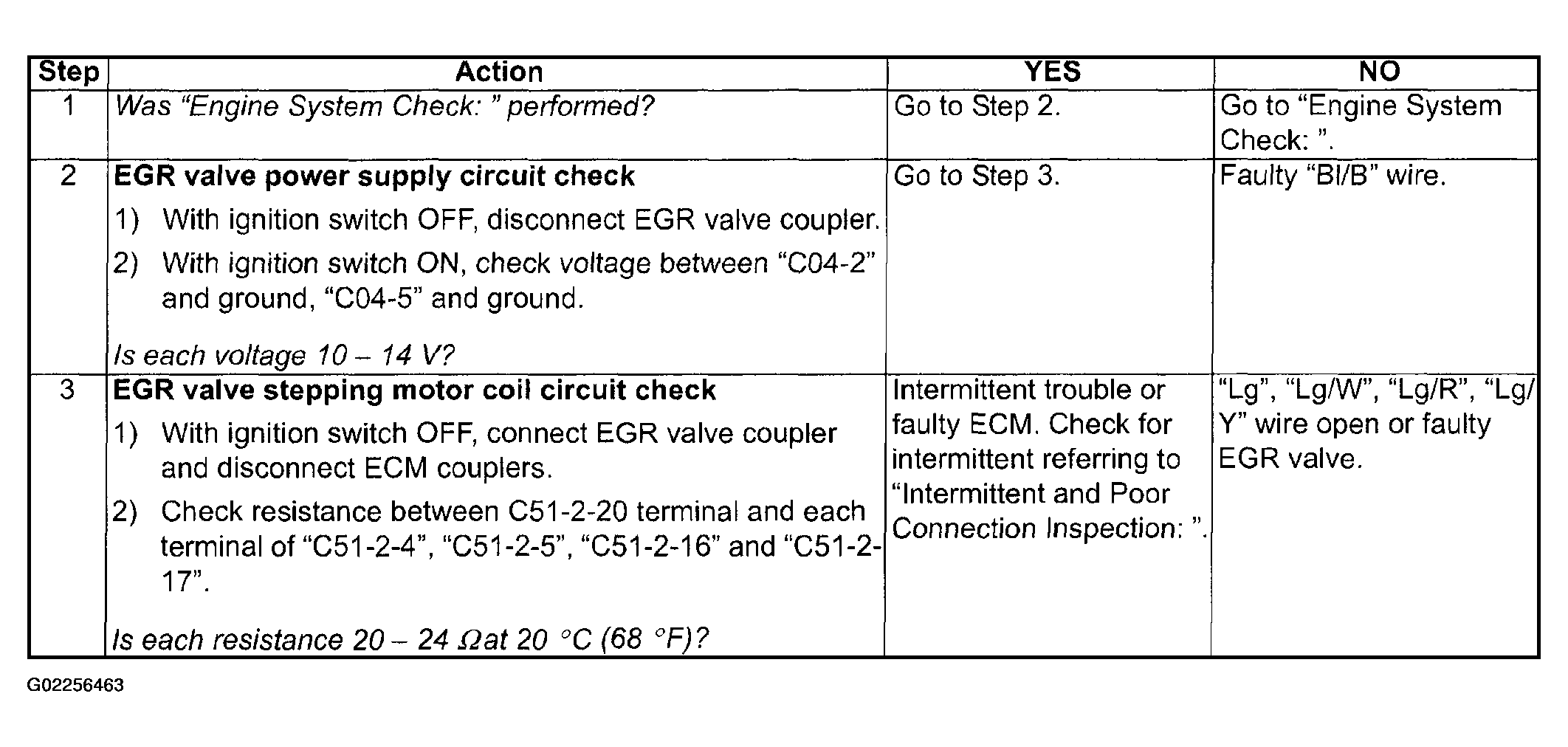

Fig 1: DTC P0403: Exhaust Gas Recirculation (EGR) Control Circuit Troubleshooting Chart
G02256463Courtesy of SUZUKI OF AMERICA CORP.
