DTC Troubleshooting

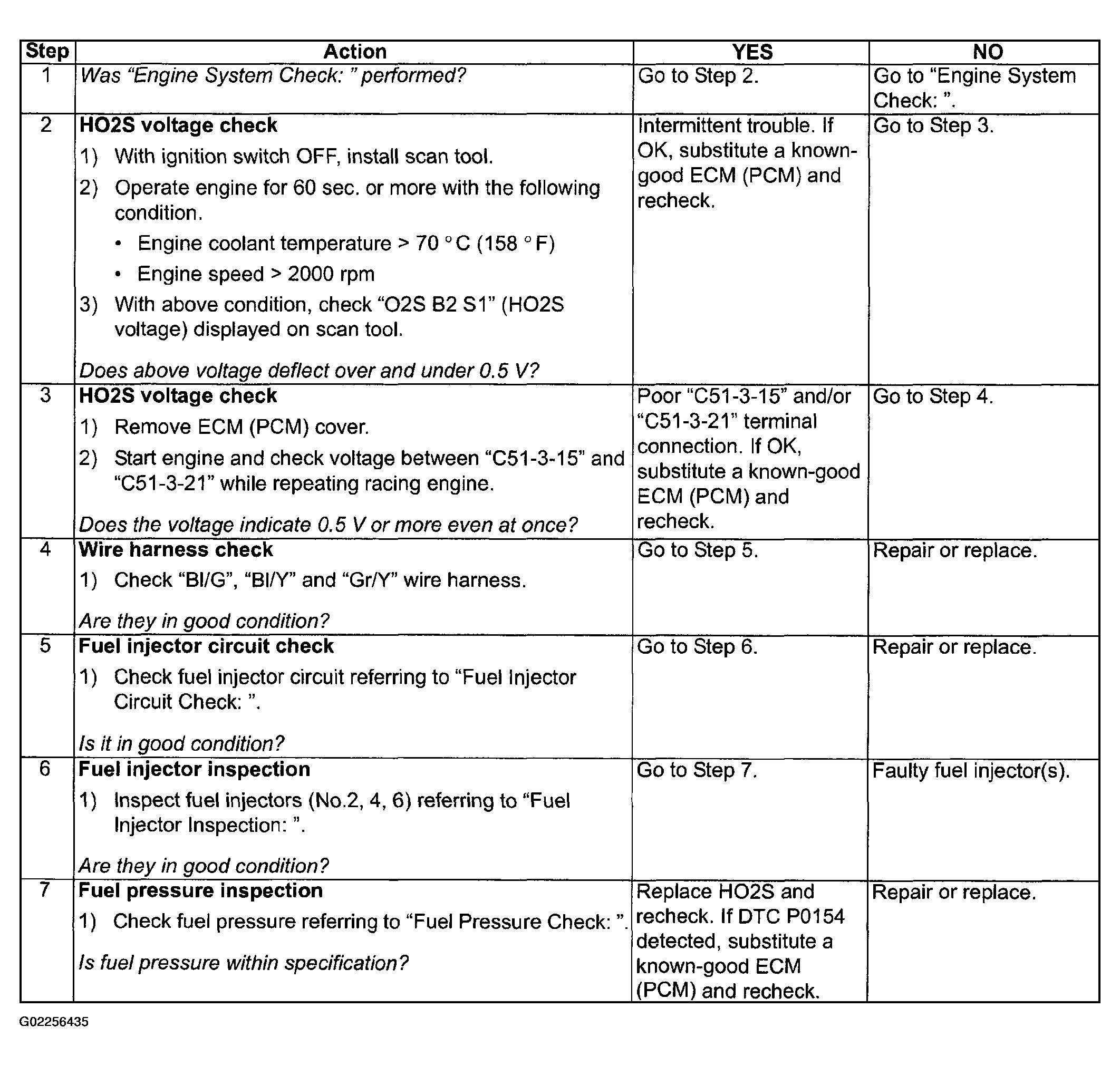

Fig 1: DTC P0154: HO2S (Bank-2 Sensor-1) No Activity Detected Troubleshooting Chart
G02256435Courtesy of SUZUKI OF AMERICA CORP.
