DTC Troubleshooting

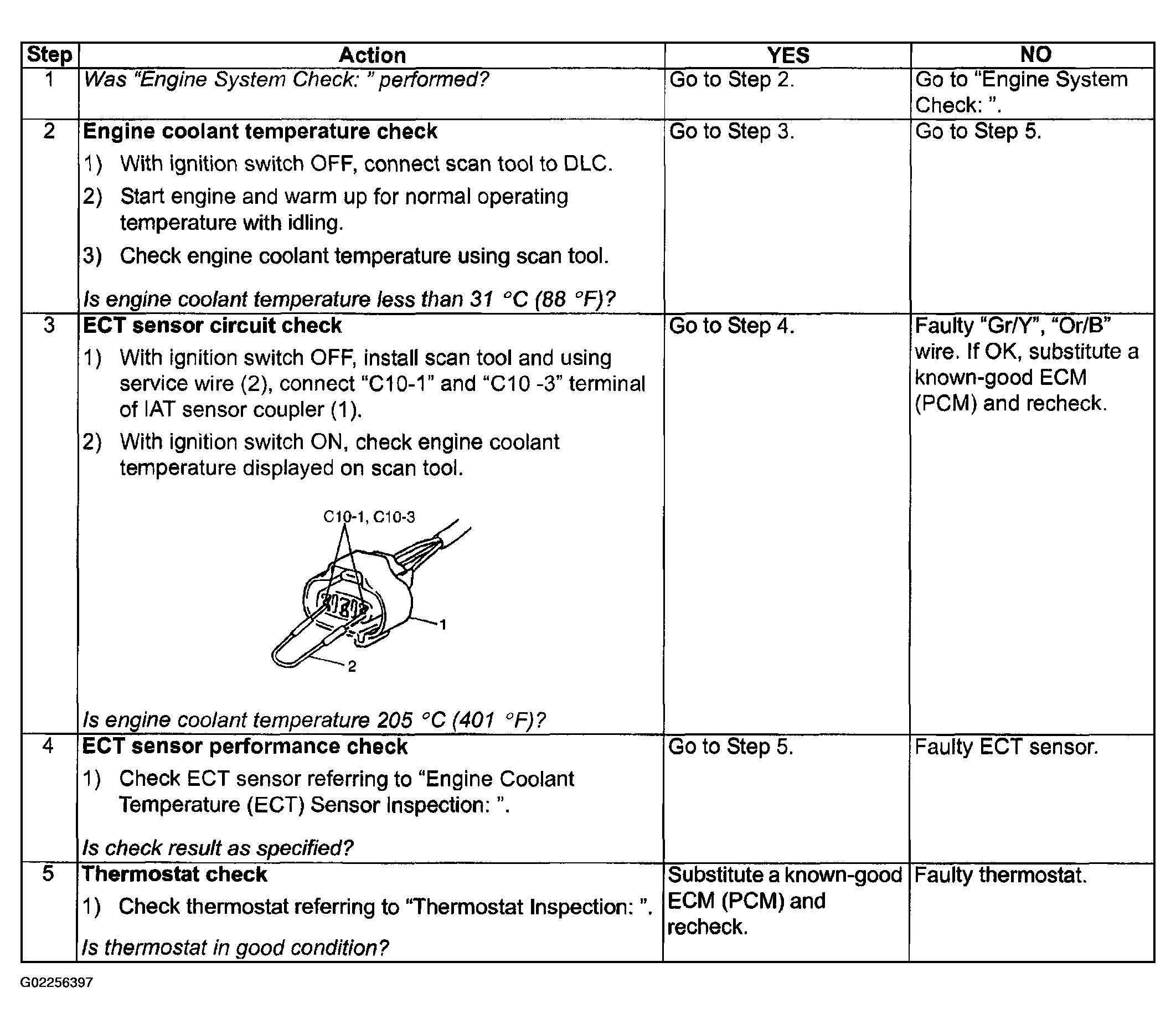

Fig 1: DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control Troubleshooting Chart
G02256397Courtesy of SUZUKI OF AMERICA CORP.
