DTC Troubleshooting

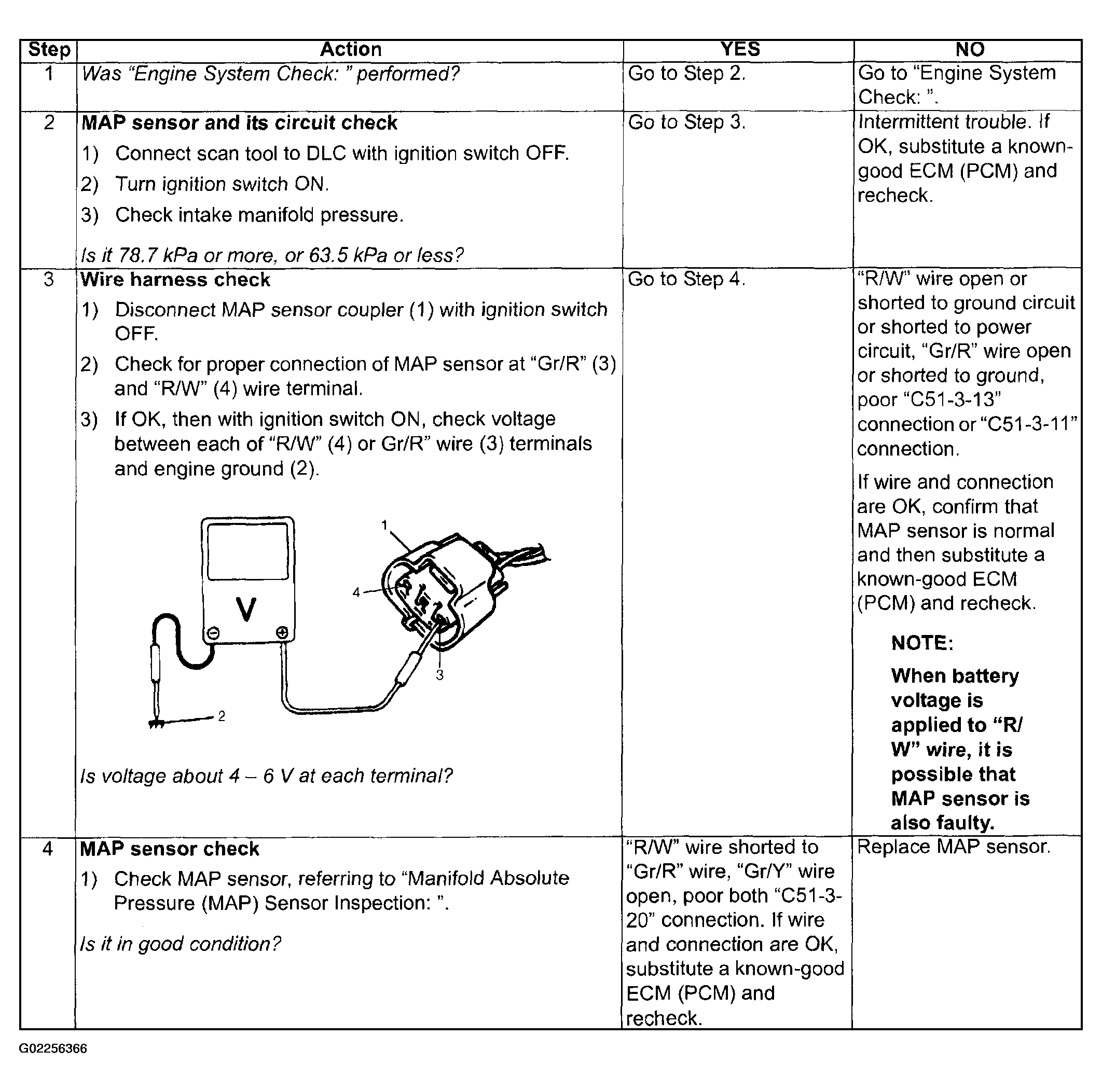

Fig 1: DTC P0107 / P0108: Manifold Absolute Pressure Sensor Circuit Low/High Input Troubleshooting Chart
G02256366Courtesy of SUZUKI OF AMERICA CORP.
