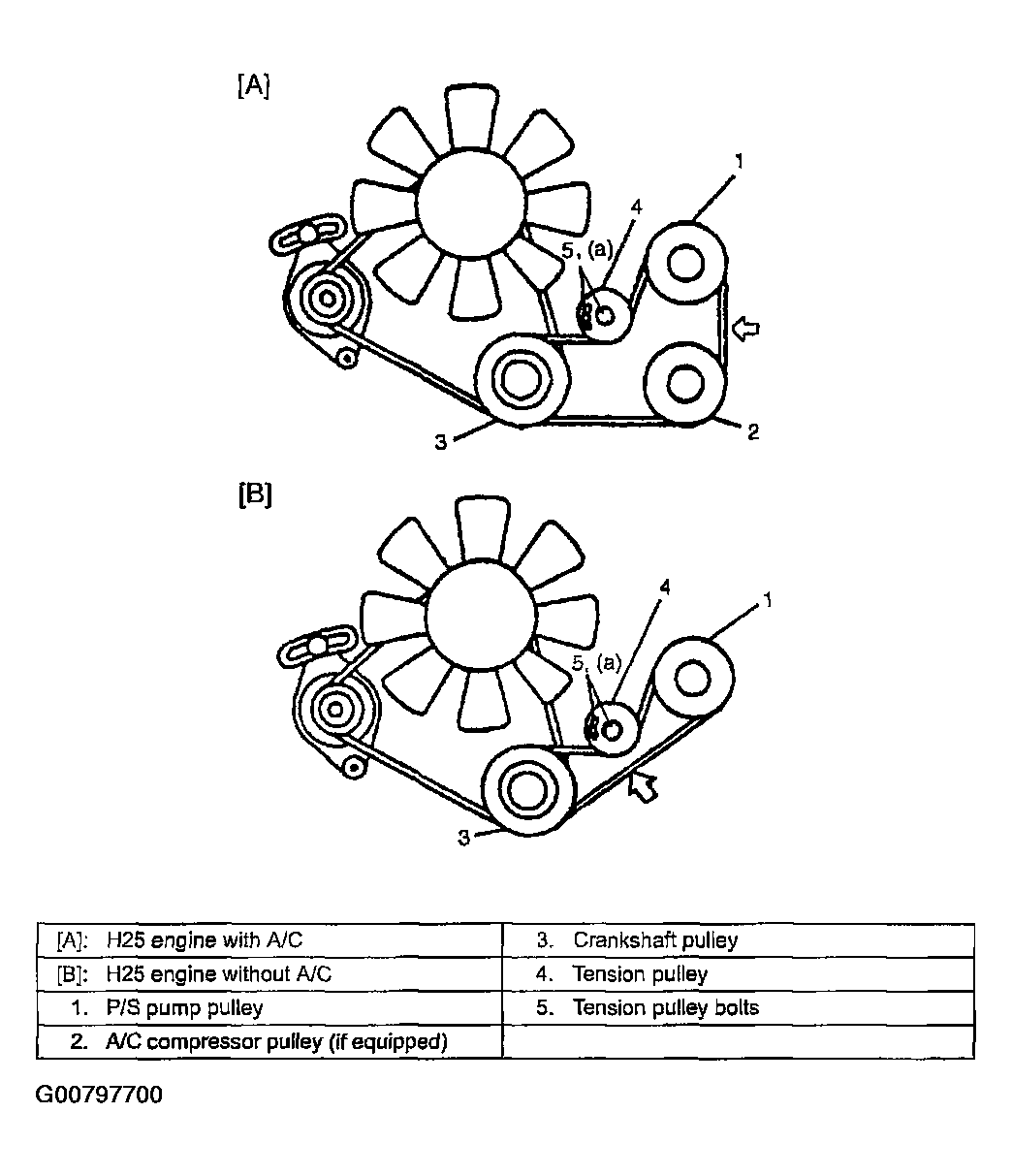

For H25 engine
- To adjust P/S belt tension, loosen tension pulley bolts and turn tension pulley using haxagon wrench.
- Adjust belt tension to specification described in above Check
. Then tighten tension pulley bolts to specified torque.
Tightening torque
P/S belt tension pulley bolt (a): 25 N.m (2.5 kg-m, 18.5 lb-ft)
