Power Steering Fluid Level Check

With engine stopped, check fluid level indicated on P/S fluid reservoir, which should be between "MAX" and "MIN" marks. If it is lower than "MIN" mark, fill fluid up to "MAX" mark.

NOTE:

Be sure to use an specified power steering fluid.
Fluid level should be checked when fluid is cool.

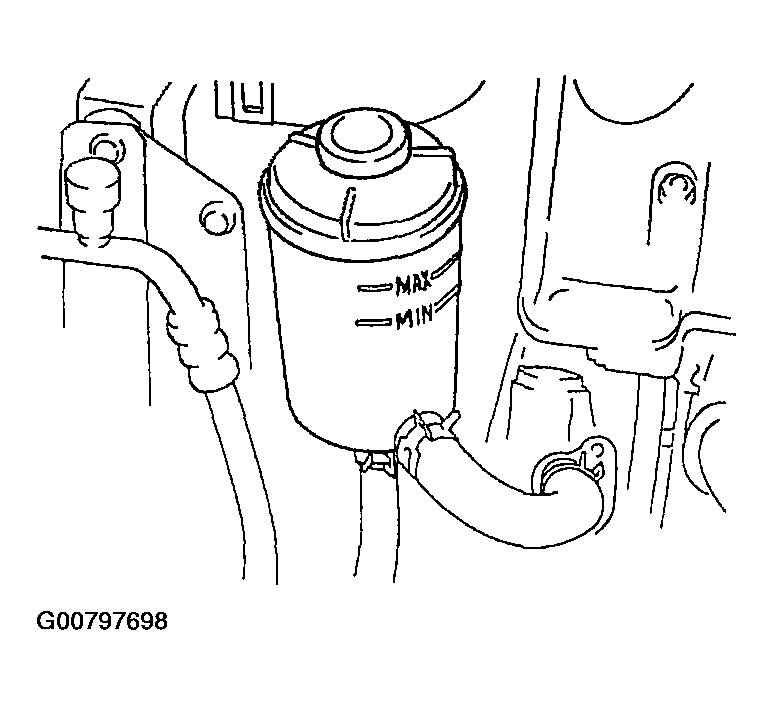

Fig 1: Identifying Fluid Reservoir Level

Courtesy of SUZUKI OF AMERICA CORP.
