Power Steering Pump Construction: Components

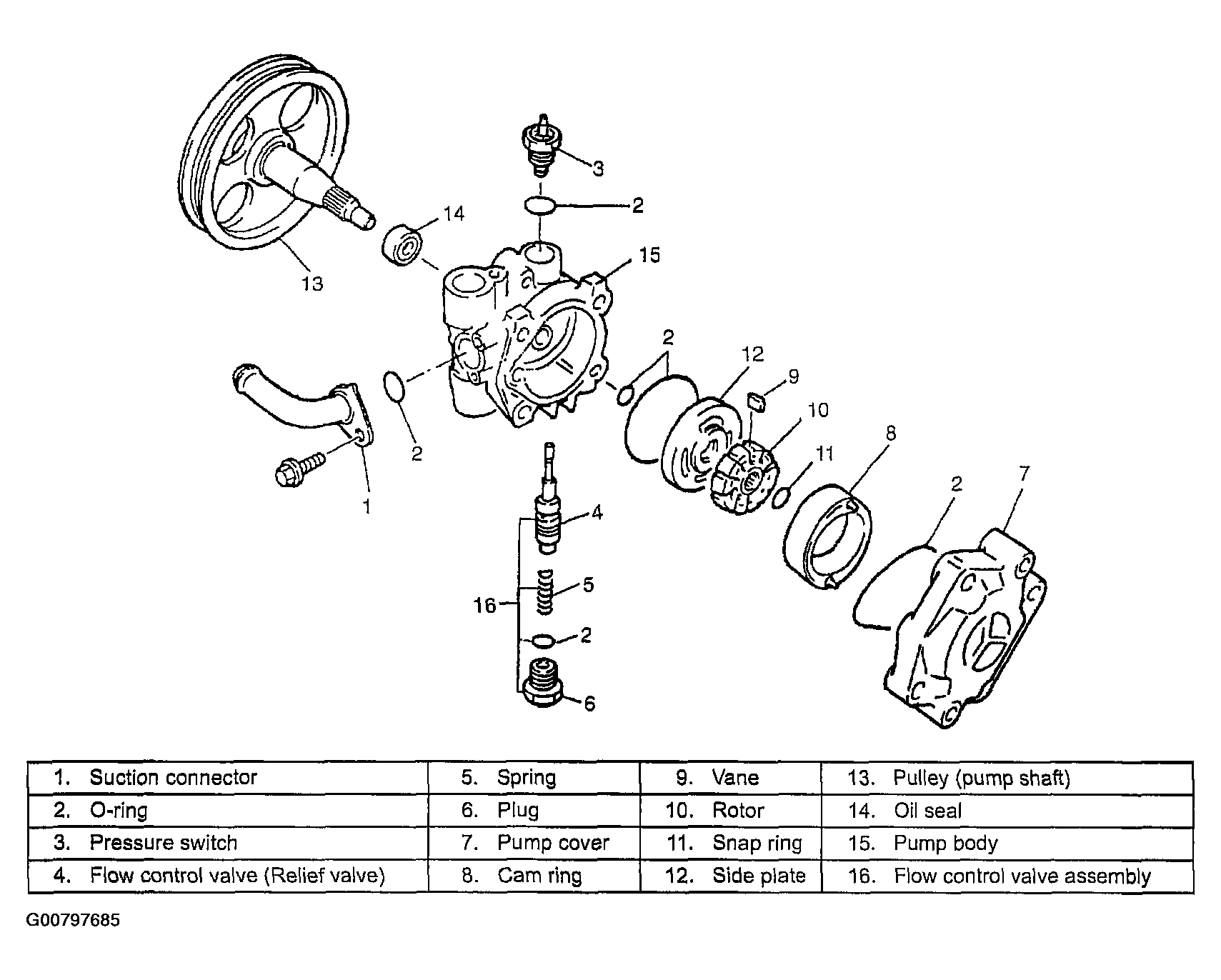

Fig 1: Exploded View Of Power Steering Pump Components
G00797685Courtesy of SUZUKI OF AMERICA CORP.

Power steering (P/S) pump specification

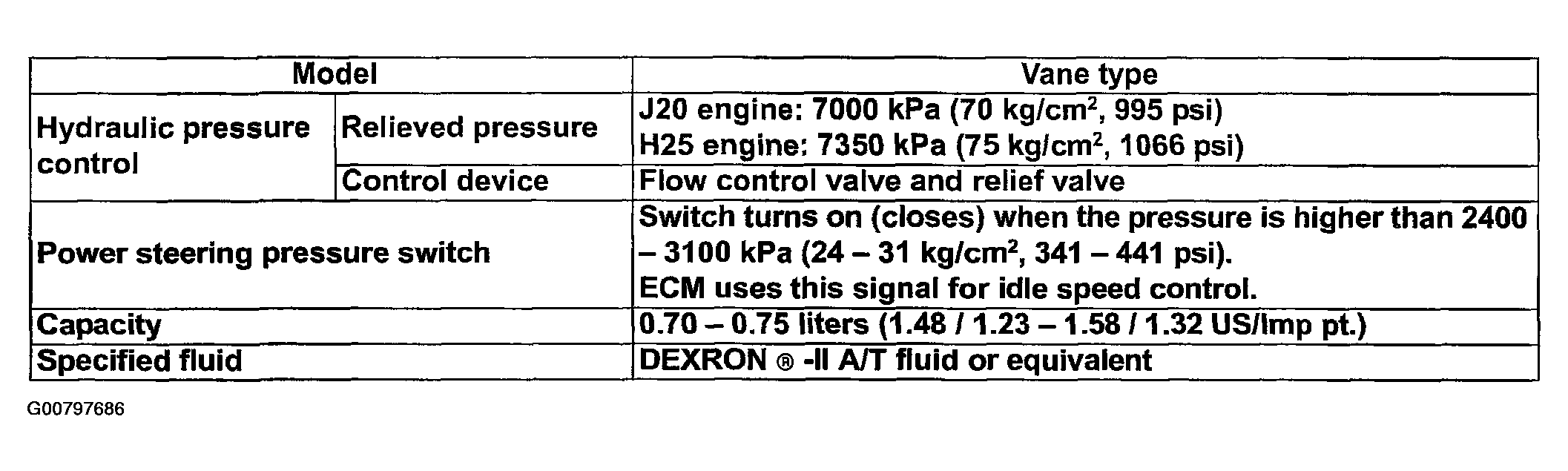

Fig 2: Power Steering (P/S) Pump Specification Table
G00797686Courtesy of SUZUKI OF AMERICA CORP.
