For H25 engine model

WARNING: This page is about a different variant/trim than selected.

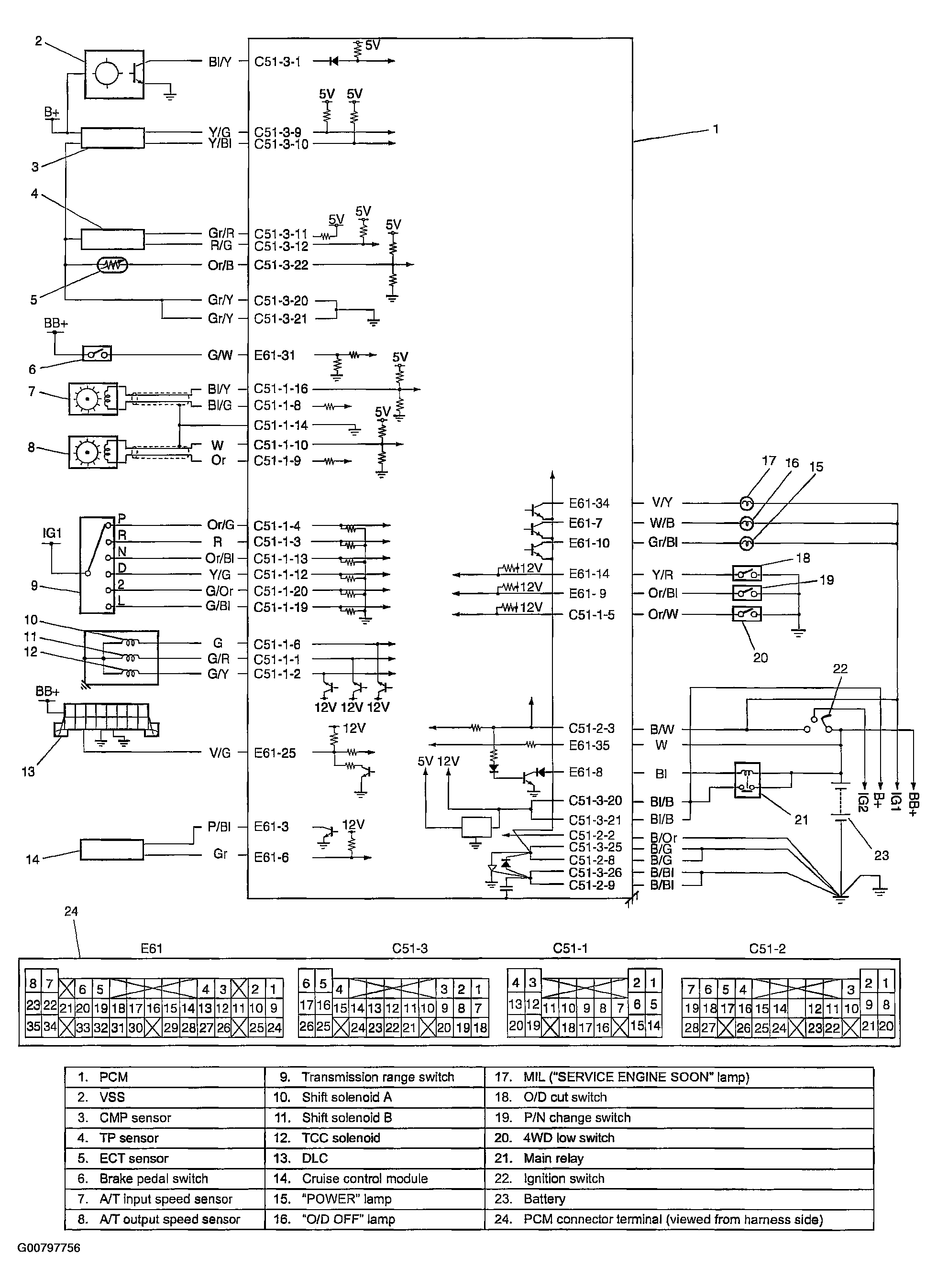

Fig 1: Electronic Shift Control System Wiring Diagram For H25 Engine Model
G00797756Courtesy of SUZUKI OF AMERICA CORP.
