Dtc P0112: Intake Air Temperature (IAT) Sensor Circuit Low Input: Wiring Diagram

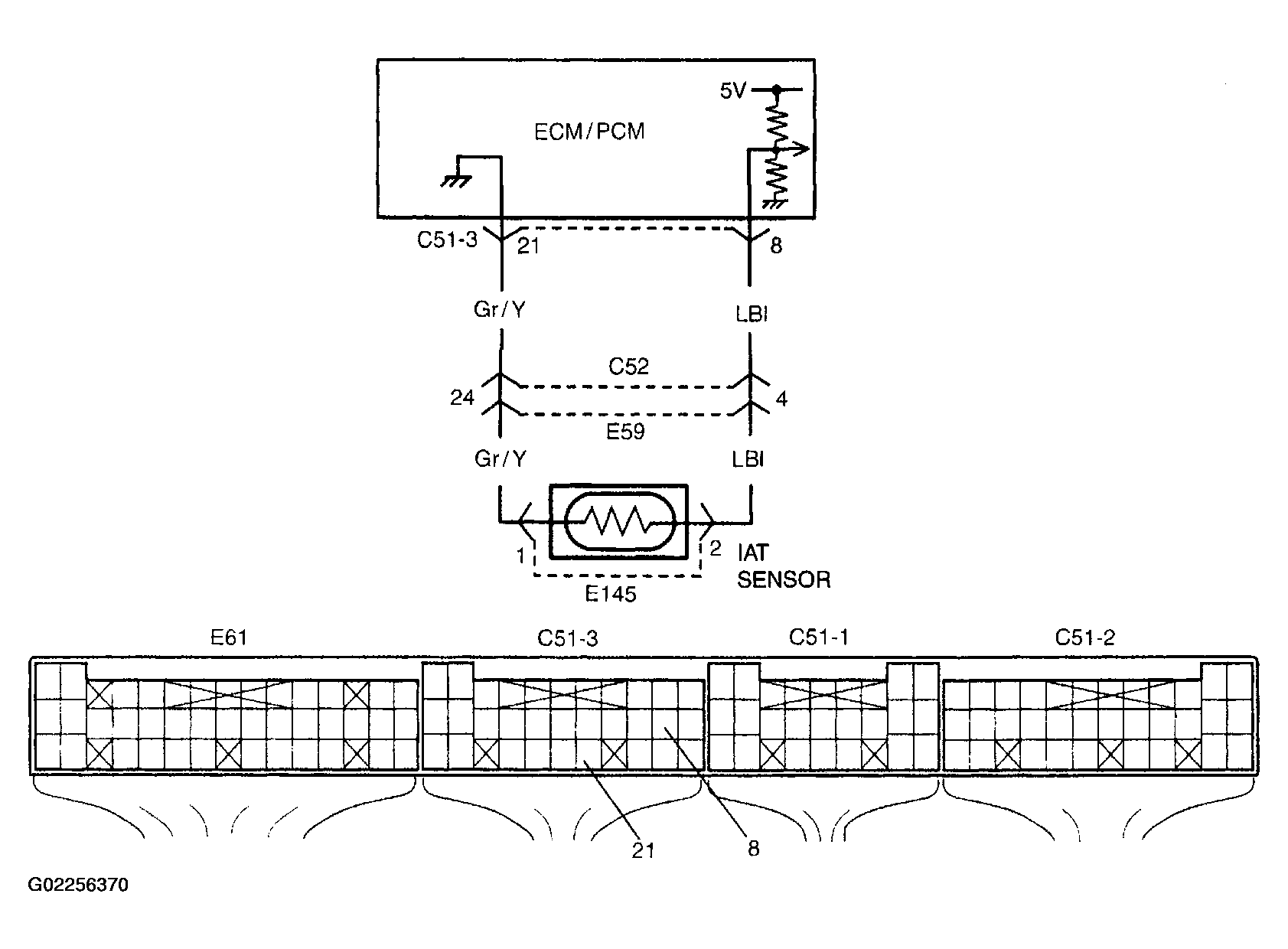

Fig 1: DTC P0112: Intake Air Temperature (IAT) Sensor Circuit Low Input Wiring Diagram
G02256370Courtesy of SUZUKI OF AMERICA CORP.
