DTC Troubleshooting

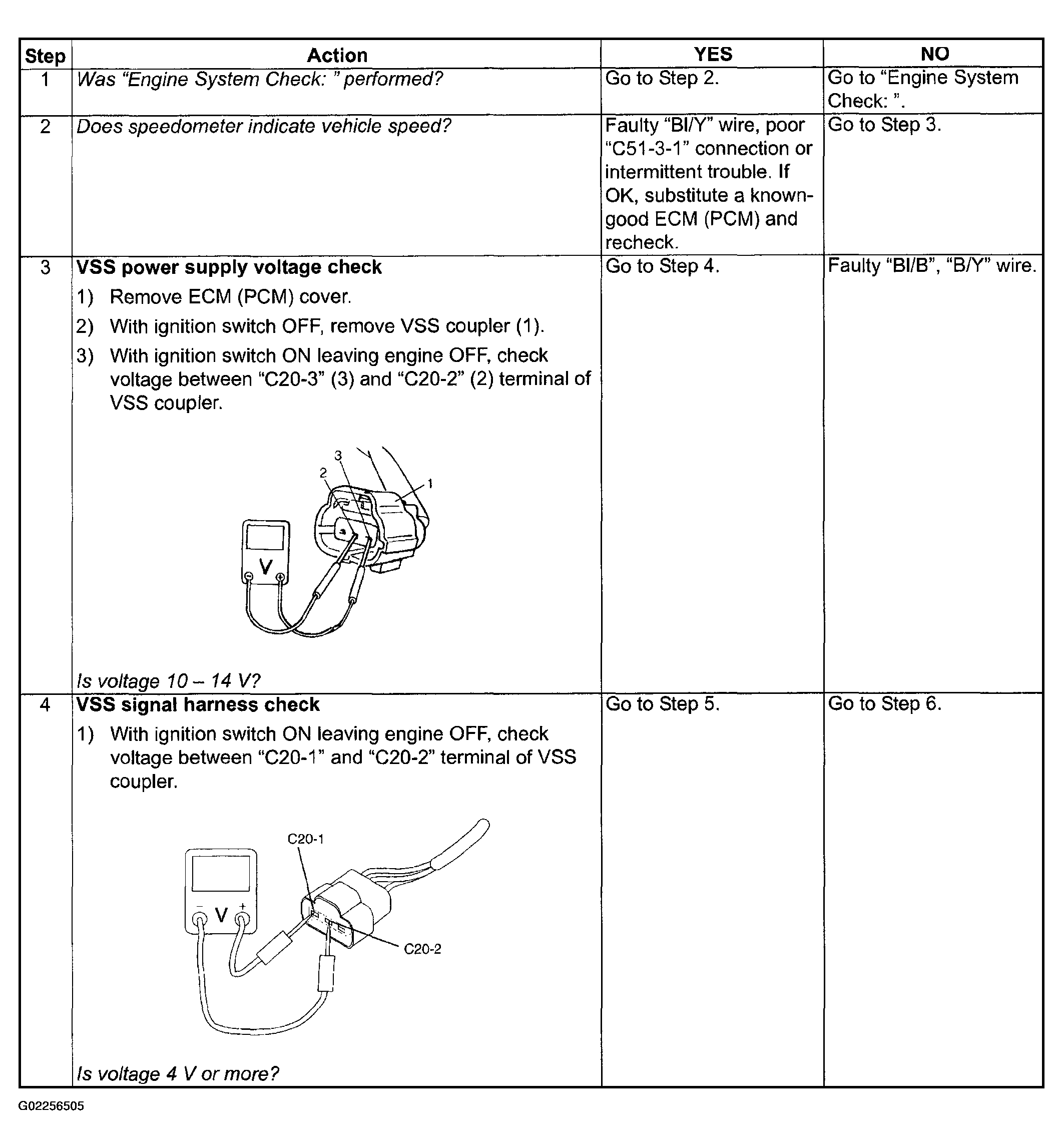

Fig 1: DTC P0500: Vehicle Speed Sensor (VSS) Malfunction Troubleshooting Chart (1 Of 3)
G02256505Courtesy of SUZUKI OF AMERICA CORP.

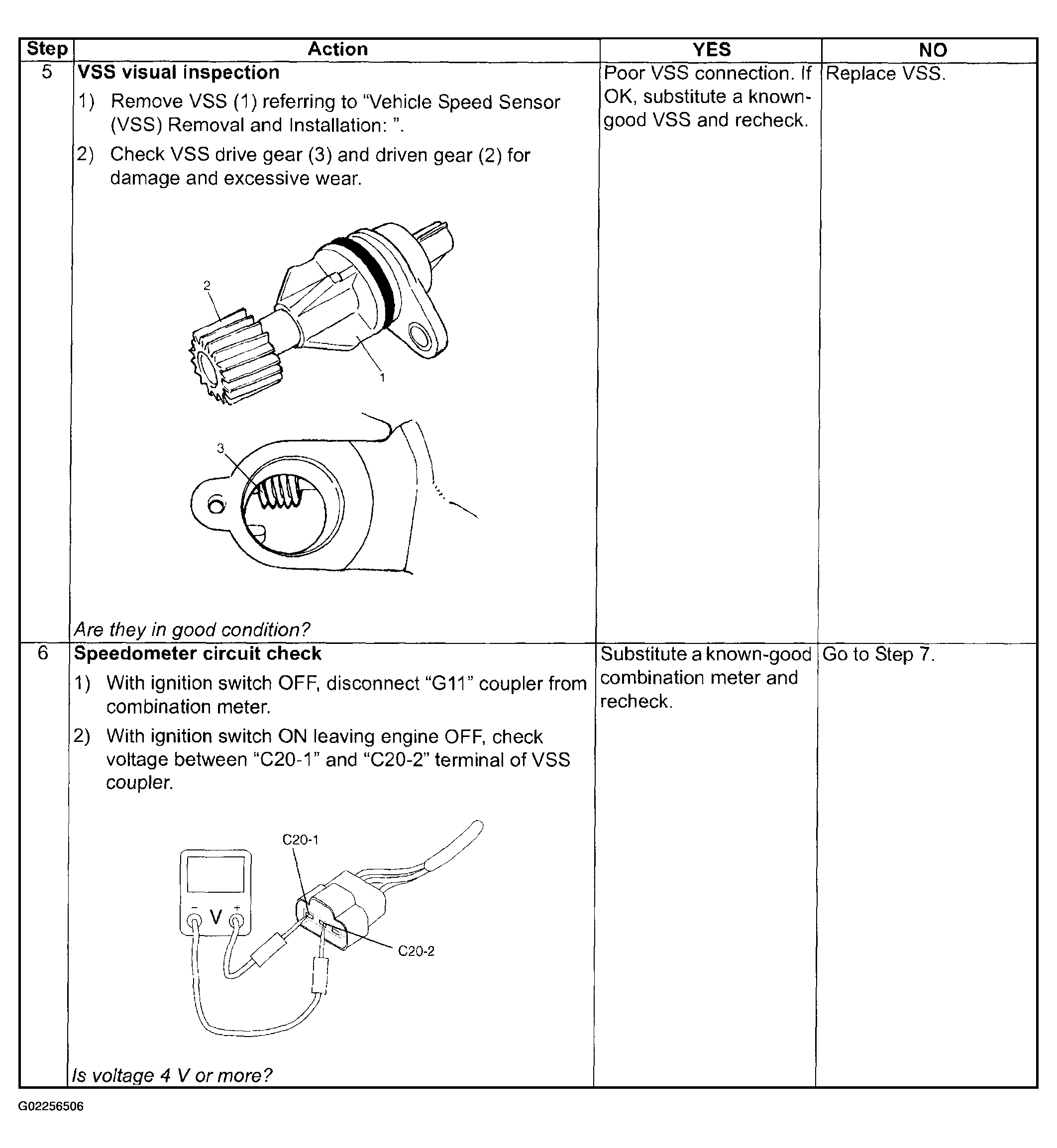

Fig 2: DTC P0500: Vehicle Speed Sensor (VSS) Malfunction Troubleshooting Chart (2 Of 3)
G02256506Courtesy of SUZUKI OF AMERICA CORP.

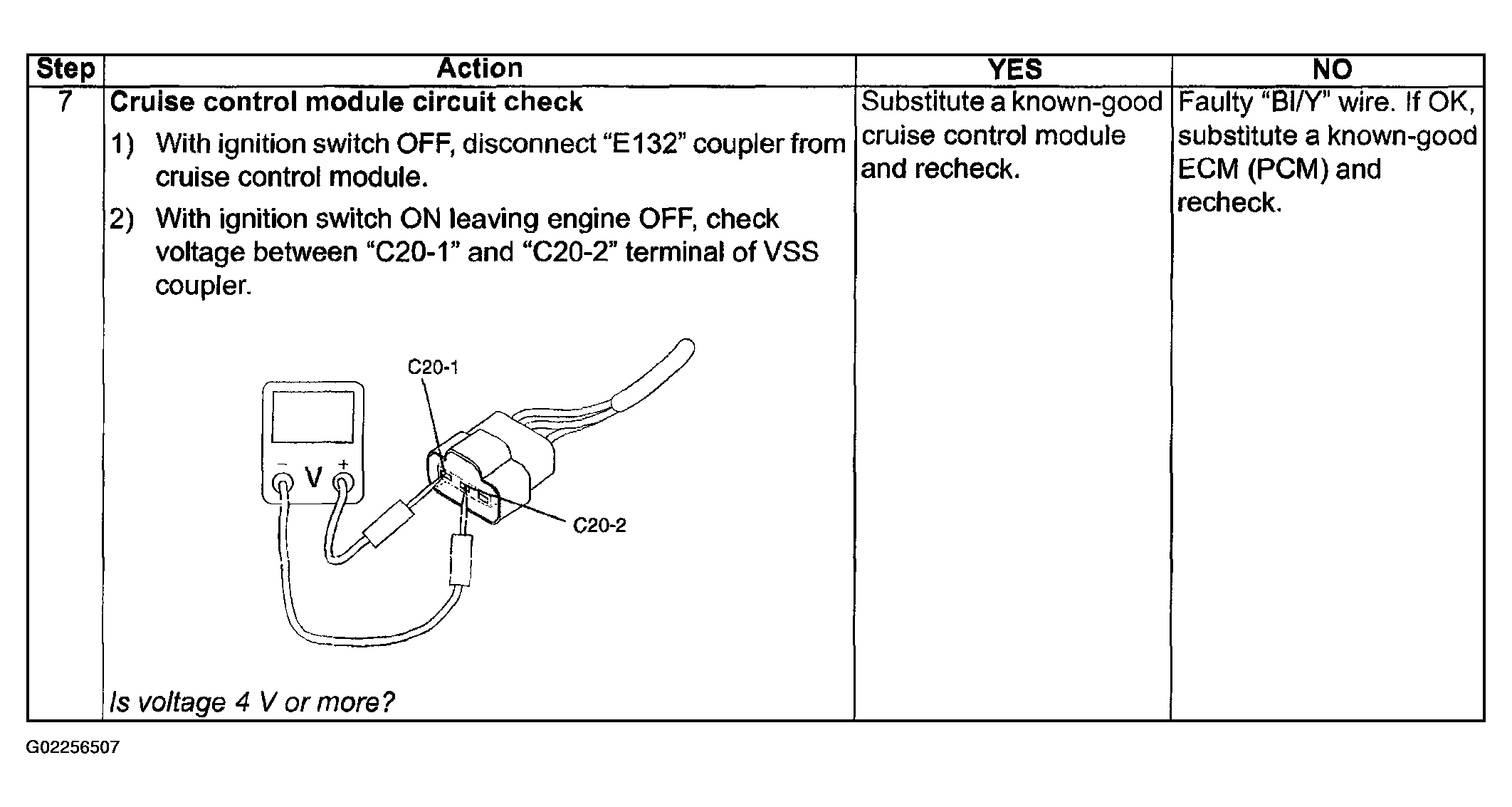

Fig 3: DTC P0500: Vehicle Speed Sensor (VSS) Malfunction Troubleshooting Chart (3 Of 3)
G02256507Courtesy of SUZUKI OF AMERICA CORP.
