DTC Trouble Shooting

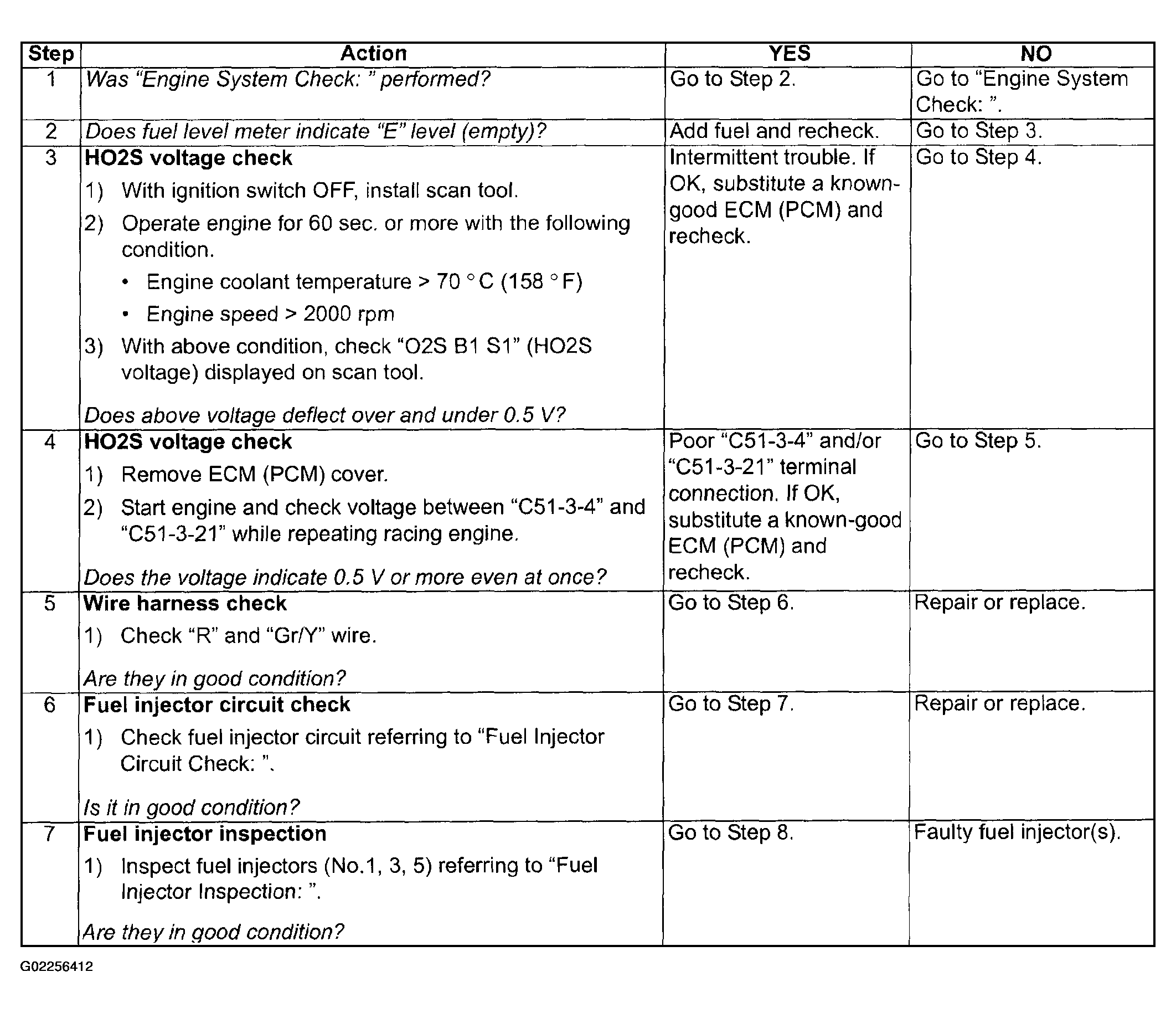

Fig 1: DTC P0134: HO2S (Bank-1 Sensor-1) No Activity Detected Troubleshooting Chart (1 Of 2)
G02256412Courtesy of SUZUKI OF AMERICA CORP.

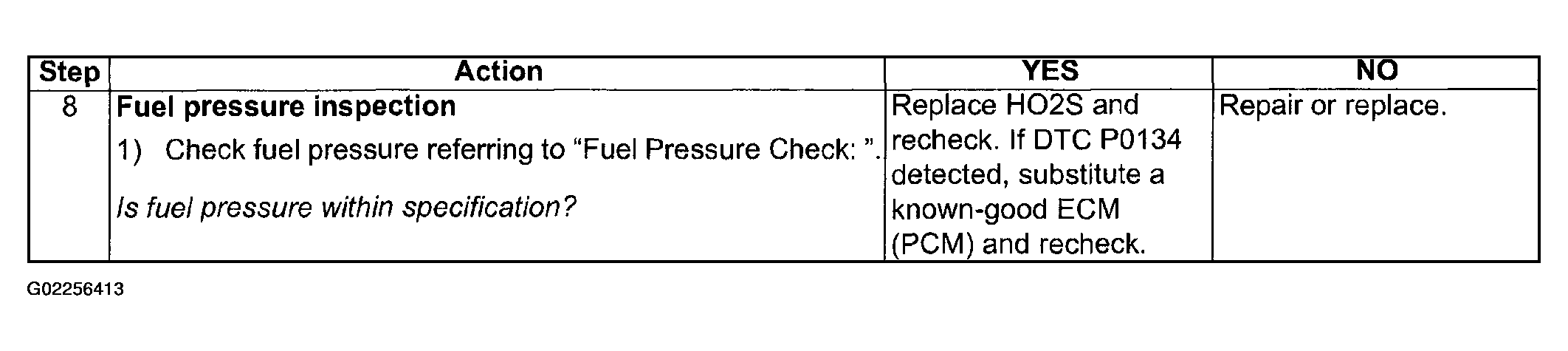

Fig 2: DTC P0134: HO2S (Bank-1 Sensor-1) No Activity Detected Troubleshooting Chart (2 Of 2)
G02256413Courtesy of SUZUKI OF AMERICA CORP.
