Front Wheel Speed Sensor Removal and Installation: Removal
- Disconnect negative cable from battery.
- Hoist vehicle and remove wheel.

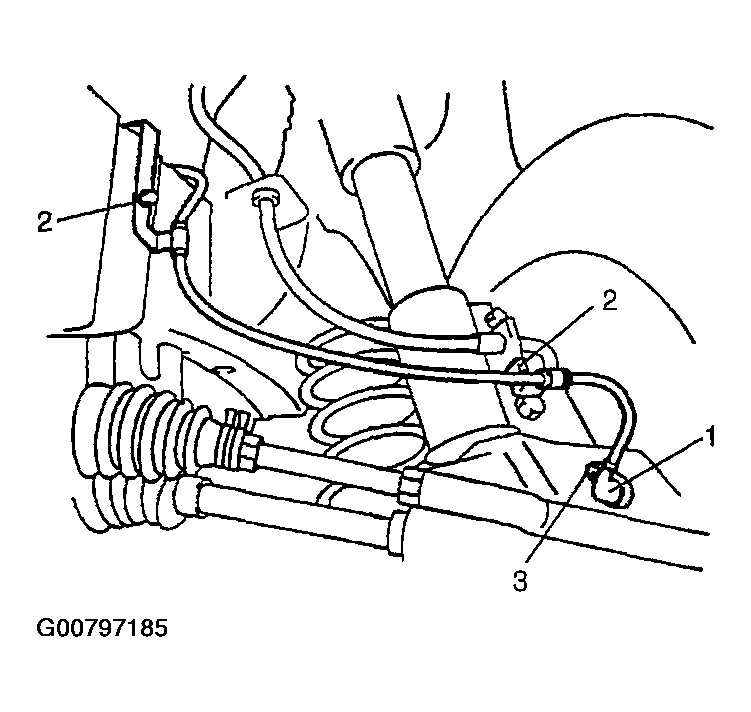

- Disconnect front wheel speed sensor connector (1).
Courtesy of SUZUKI OF AMERICA CORP.
- Remove harness clamp bolts (2) and sensor bolt (3) and remove front wheel speed sensor (1) from knuckle.
CAUTION:
- Do not pull wire harness when removing front wheel speed sensor.
- Do not cause damage to surface of front wheel speed sensor and do not allow dust, etc. to enter its installation hole.
Courtesy of SUZUKI OF AMERICA CORP.
