Normal indicator lights operation

The ABS uses two lights, the amber "ABS" warning light and a red "BRAKE" warning light.

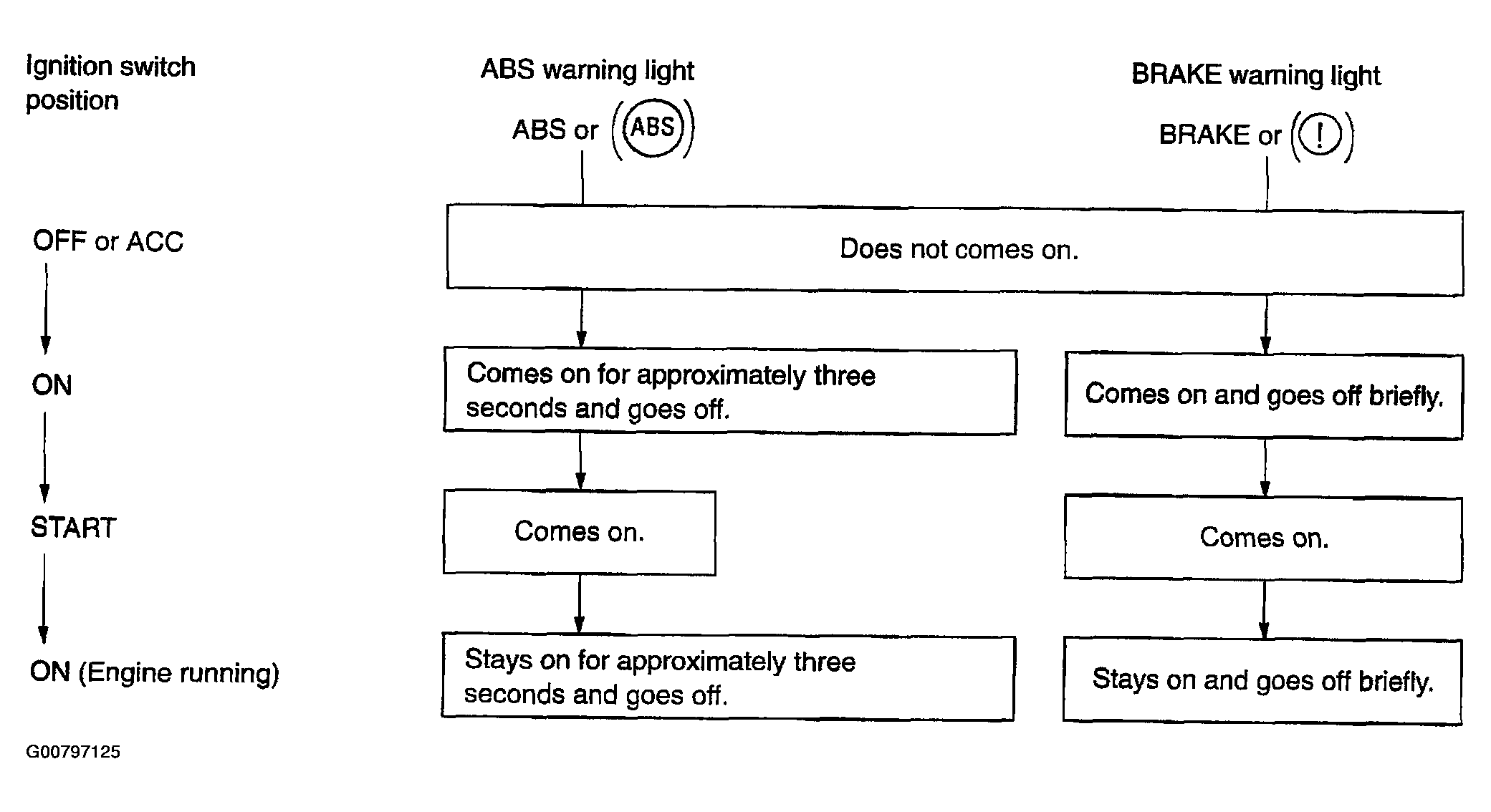

Fig 1: Normal Indicator Lights Operation Illustration
G00797125Courtesy of SUZUKI OF AMERICA CORP.
NOTE: When performing the above check, be sure to release the parking brake and apply wheel stoppers to the tires, or the BRAKE warning light will stay ON.
