Diagnostic Trouble Codes Troubleshooting

NOTE: ABS Check  must be performed first before using this flow.

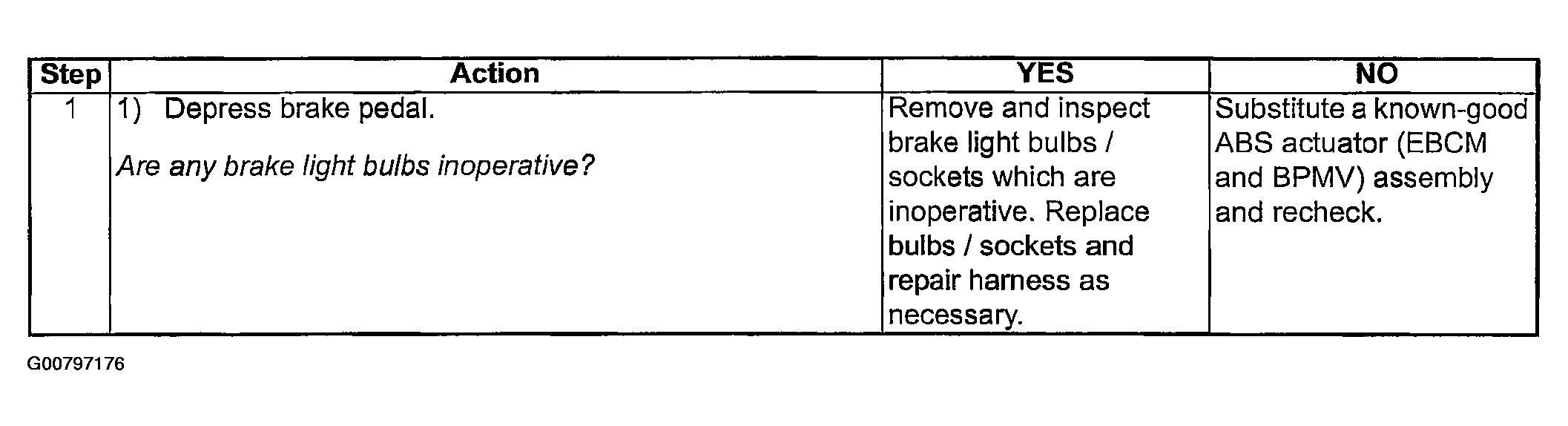

Fig 1: DTC C1295 Troubleshooting Chart
G00797176Courtesy of SUZUKI OF AMERICA CORP.
