Head Lining Removal And Installation: Removal

  1. Remove spot light and sliding roof switch (if equipped).
  2. Remove sunshade assembly (2).
  3. Remove room light (1) and spacer.
  4. Remove assistant grips (4).
  5. Remove inner trims (3) covering head lining and door opening trim.
  6. Remove rear room light (5), spacer and speaker cover (if equipped).

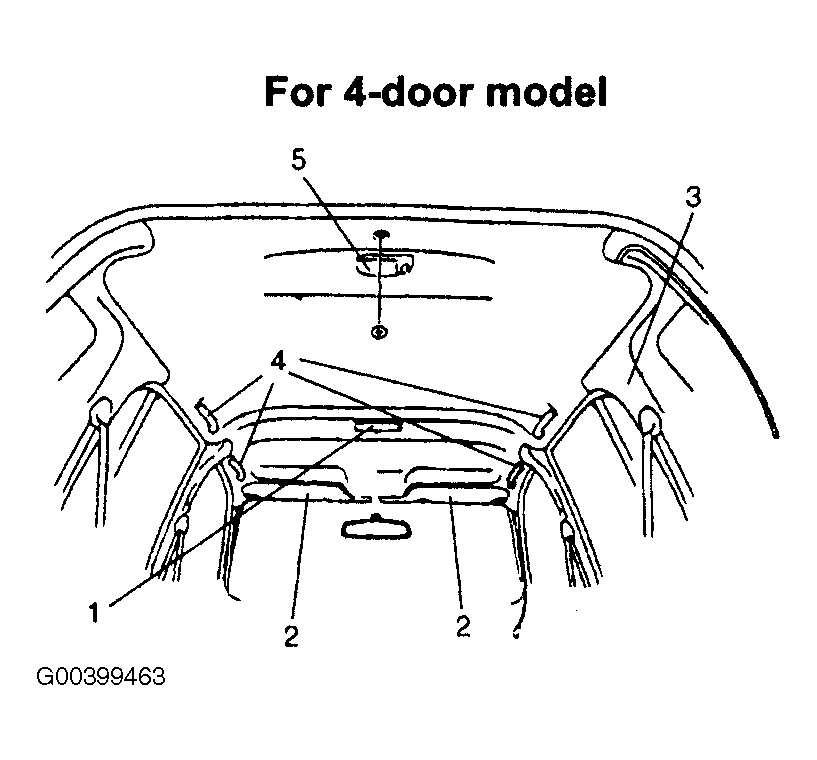

    Fig 1: Removing Head Lining
    G00399463Courtesy of SUZUKI OF AMERICA CORP.
  7. Disconnect rear washer hose and roof harness from body.
  8. Remove head lining.
    NOTE: Adhesive double coated tape is used to attach rear part of head lining. Detach head lining from roof after removing all above parts.
