Power Door Lock System (With Keyless Entry System)

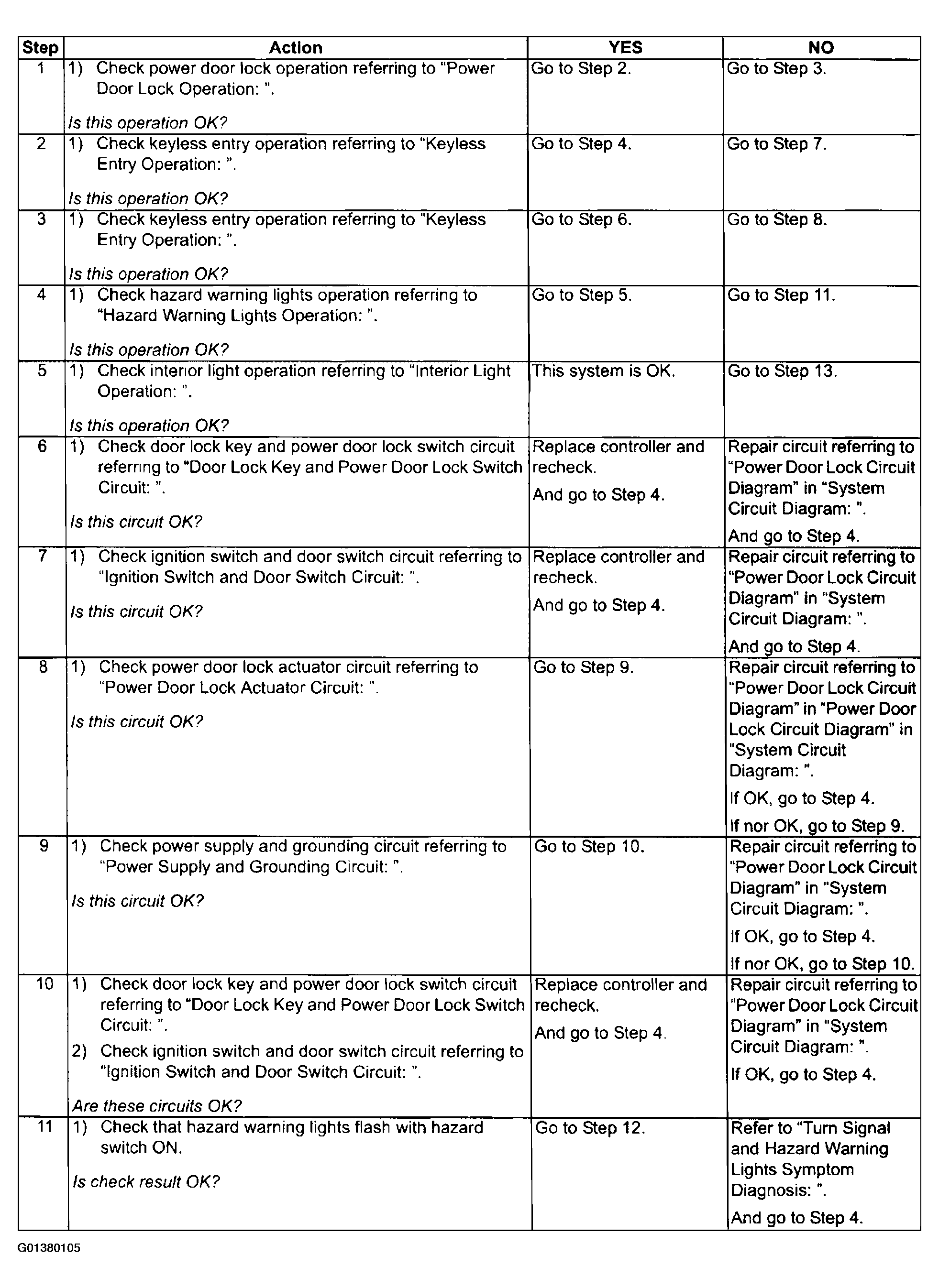

Fig 1: Power Door Lock System Check Chart (With Keyless Entry System) (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

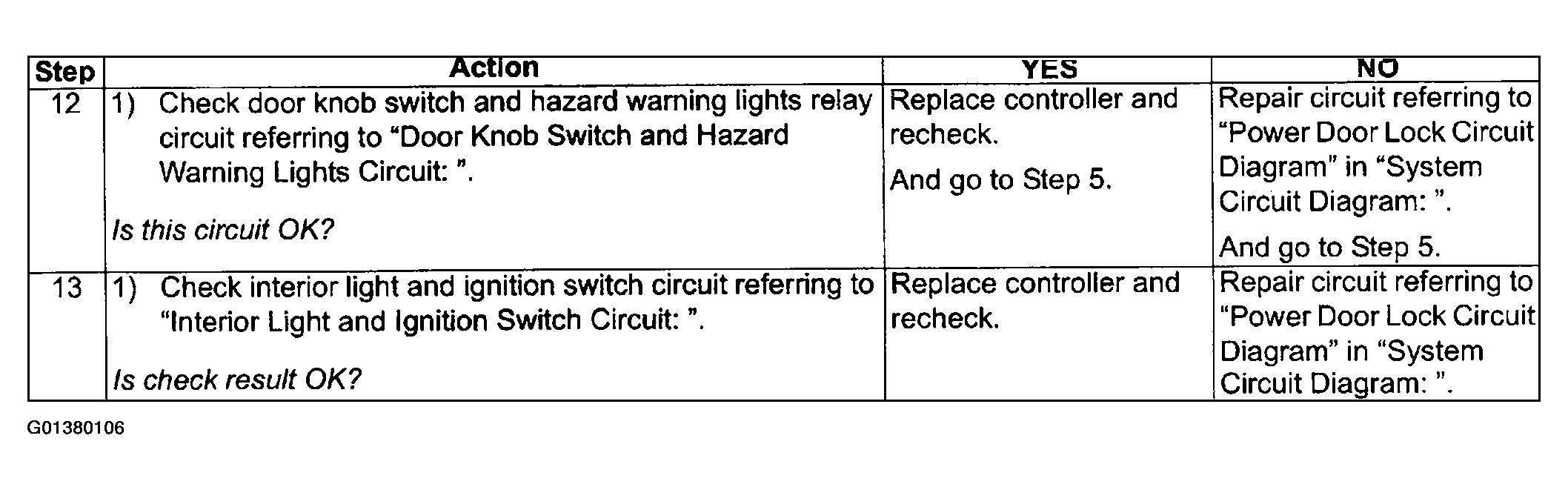

Fig 2: Power Door Lock System Check Chart (With Keyless Entry System) (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
