Hazard Switch Inspection

Use a circuit tester to check the continuity of each switch position.

If any continuity is not obtained replace switch.

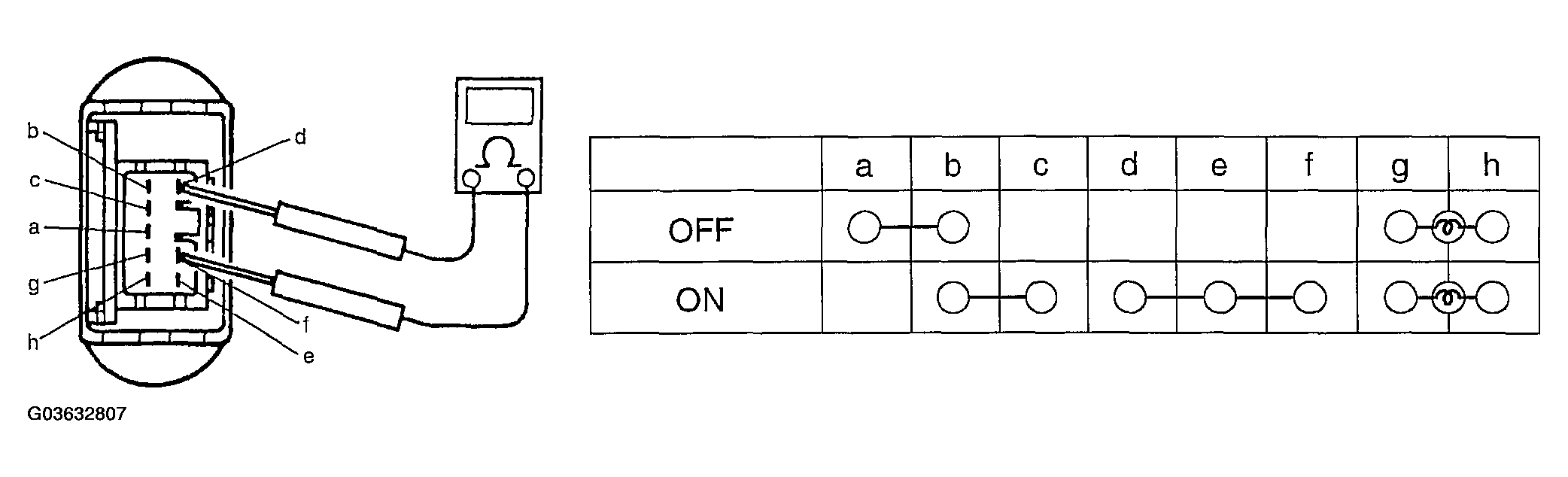

Fig 1: Inspecting Hazard Switch

Courtesy of SUZUKI OF AMERICA CORP.
