Clutch Pedal Position (CPP) Switch (for Cruise Control) Removal and Installation: Installation

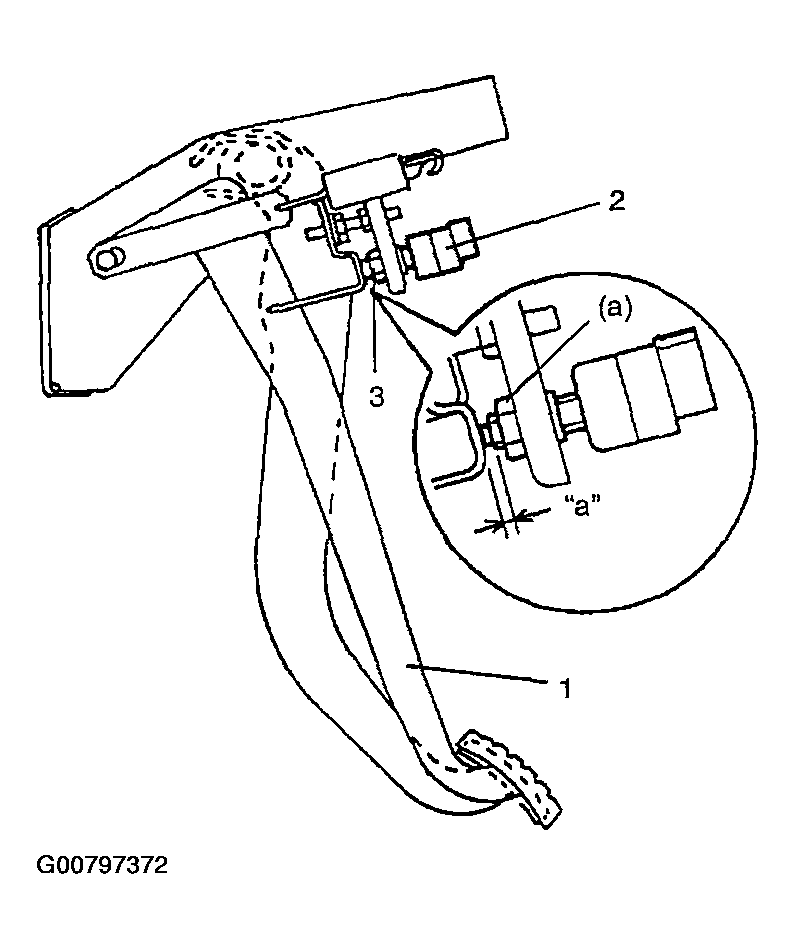

- Install CPP switch (for cruise control) (2) to pedal bracket.
- With clutch pedal (1) released, adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.
Clearance between end of thread and clutch pedal bracket
"a": 1.5 - 2.0 mm (0.06 - 0.08 in)
- Tighten lock nut (3) to specified torque.
Tightening torque
CPP switch lock nut (a): 7.5 N.m (0.75 kg-m, 5.5 lb-ft)
- Connect connector to CPP switch (for cruise control) (2) securely.
