Throttle Valve Opening Signal Circuit Check

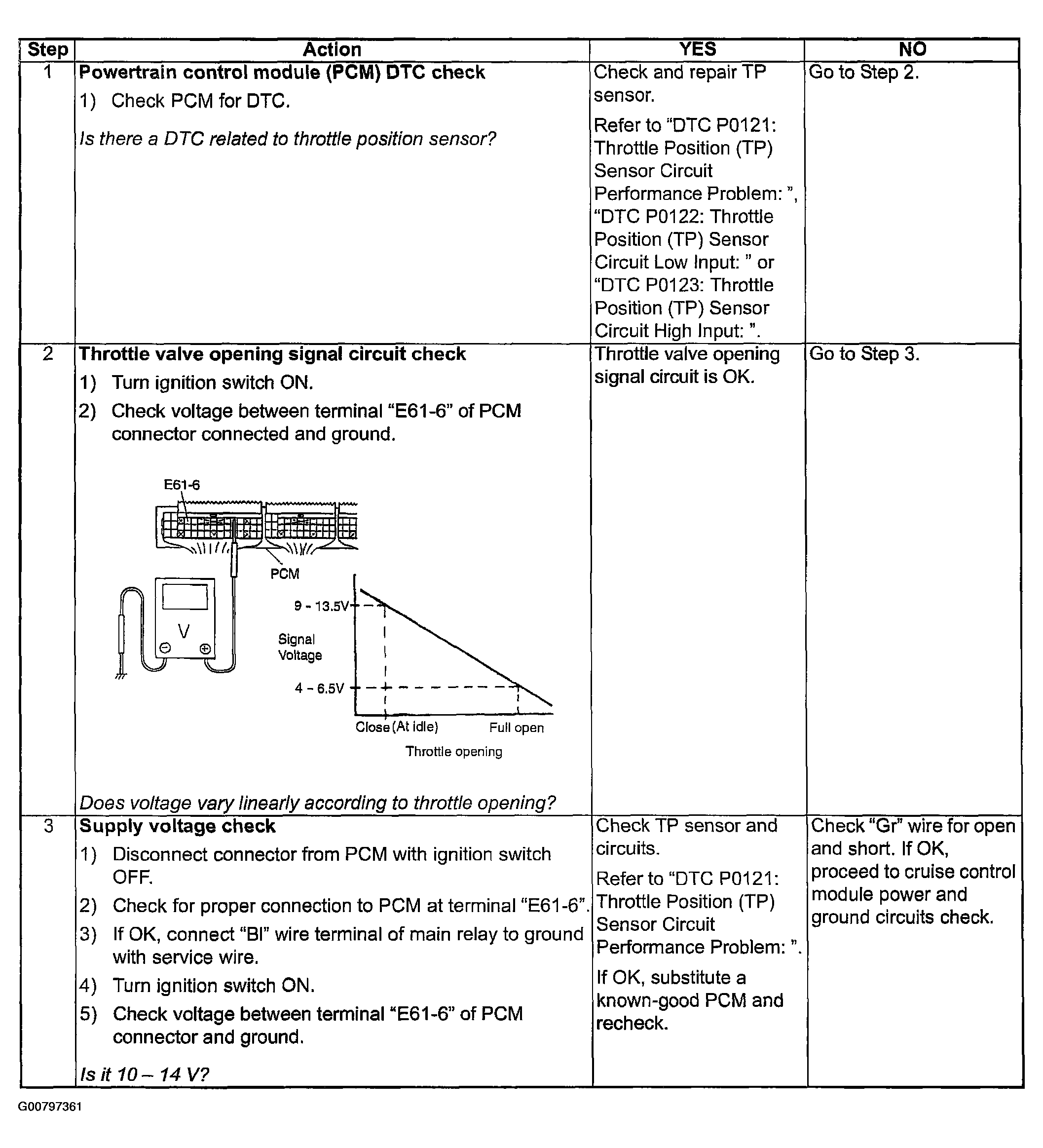

Fig 1: Throttle Valve Opening Signal Circuit Checking Chart
G00797361Courtesy of SUZUKI OF AMERICA CORP.
