Cruise Main Switch, COAST/SET, RESUME/ACCEL and CANCEL Switch Circuits Check

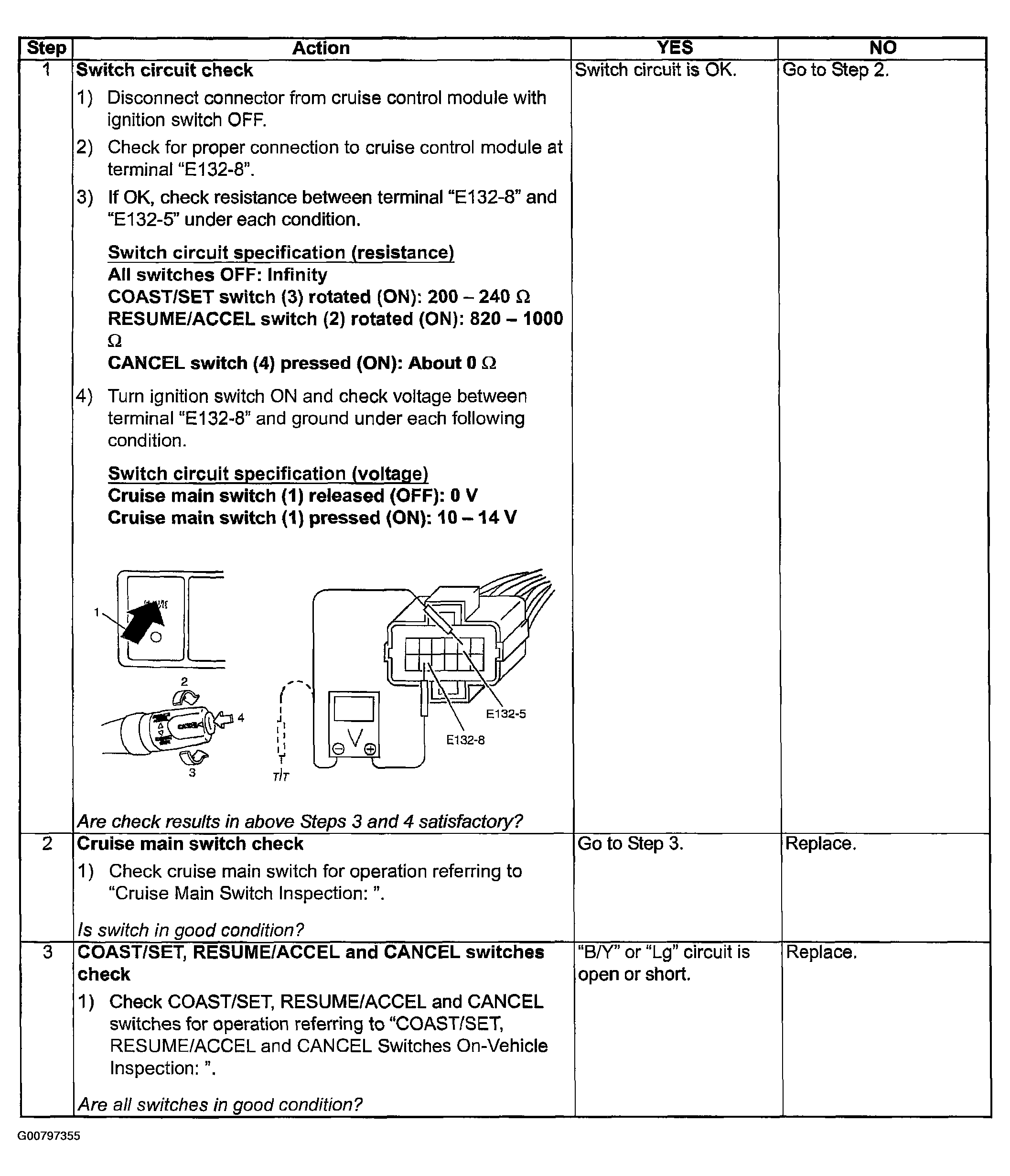

Fig 1: Cruise Main Switch, Coast/Set, Resume/Accel And Cancel Switch Circuits Checking Chart
G00797355Courtesy of SUZUKI OF AMERICA CORP.
