Clutch Pedal Position Switch Circuit Check

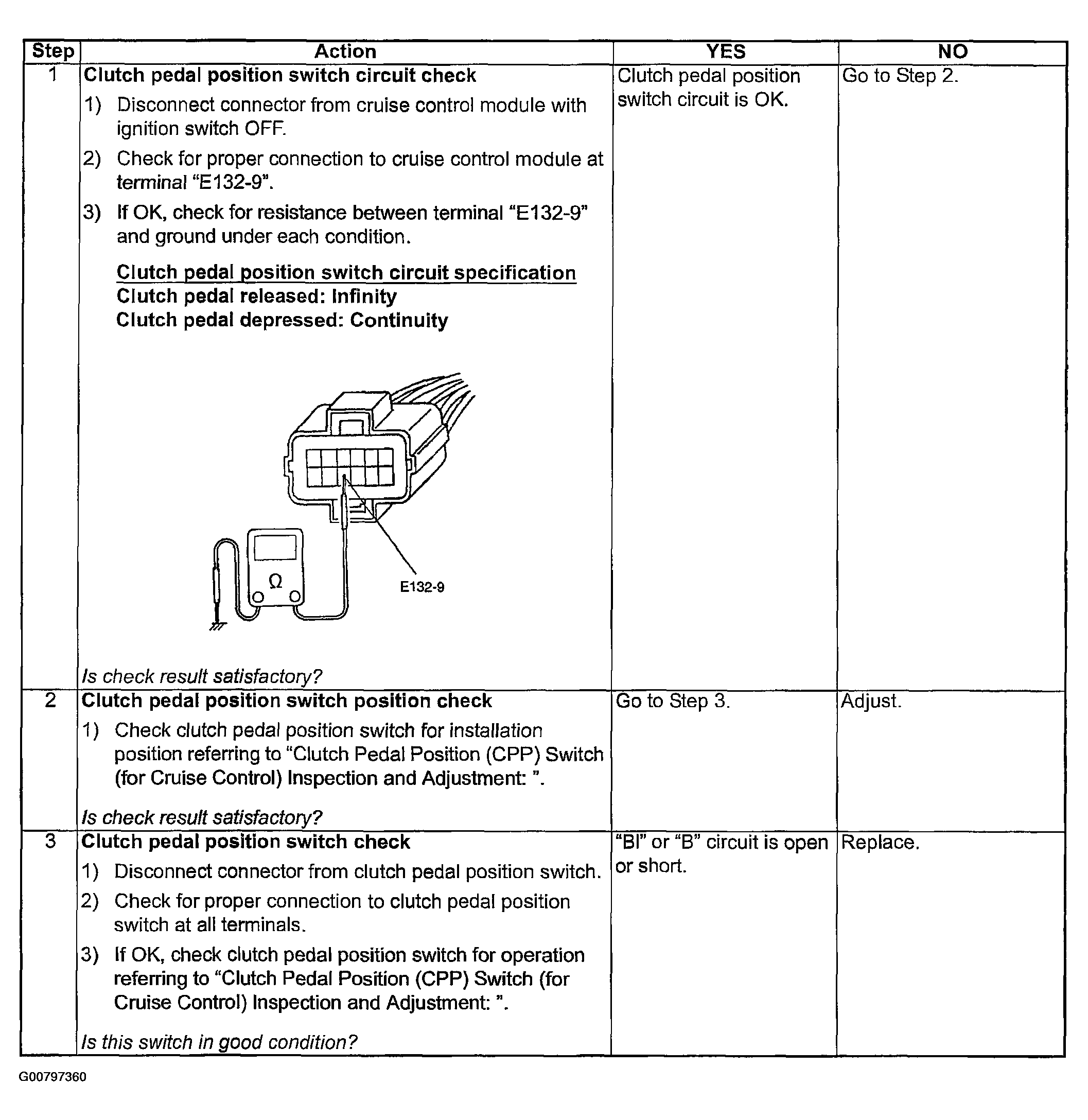

Fig 1: Clutch Pedal Position Switch Circuit Checking Chart
G00797360Courtesy of SUZUKI OF AMERICA CORP.
