Tightening Torque Specifications

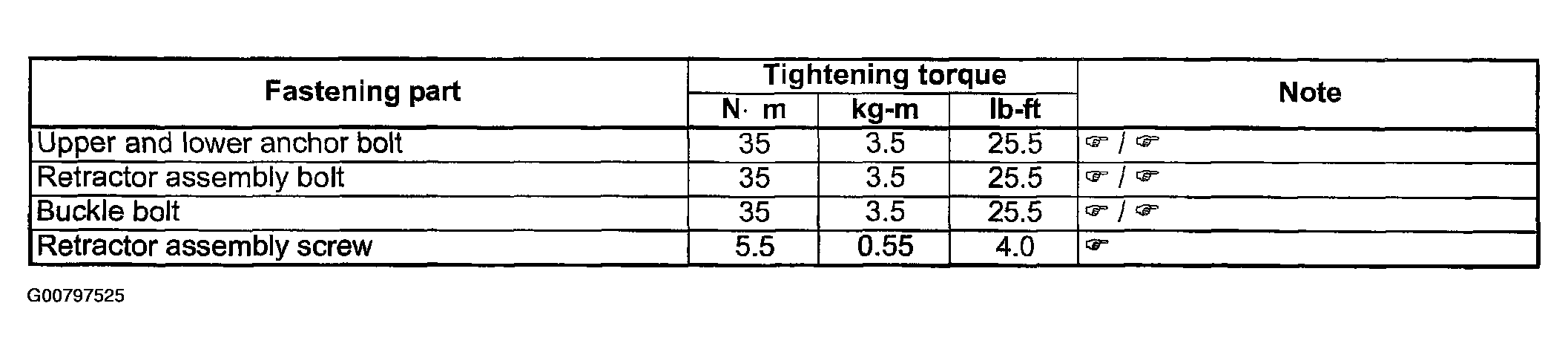

Fig 1: Fastening Part Tightening Torque Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
