ECM Reprogramming For Poor Cold Start (TS_15_12025R)

ECM REPROGRAMMING FOR POOR COLD START

TECHNICAL SERVICE BULLETIN

REVISION

A reprogramming process error may occur. Please see the added "NOTE 2:" in step  5 below.

CONDITION

In cold and / or high altitude conditions the engine will crank but will not immediately start and runs rough once started.

CAUSE

ECM Software Logic

CORRECTION

Engine start up can be improved by reprogramming the ECM. Follow the reprogramming procedure described below.

REQUIRED TOOLS AND SOFTWARE

Part Numbers	Description	QTY	Notes
09910-06520	SDS Tool Kit	1	Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable
Suzuki Pitstop	Pass-Thru Reprograming Software 3_SOFTWARE.EXE	1	Most current Pass-Thru Software Requires a Key Code to operate
Suzuki Pitstop	Database 4_DATABASE1.EXE	1	Most Current Software Database
Suzuki Pitstop	Suzuki Pass-Thru Reprogramming Tool Operator's Manual	1	Must be read and understood completely before attempting to reprogram a vehicle
99963-01501-224	Reprogram Label	1	Labels can be ordered Thru Suzuki Parts Department at no charge in packages of 200 each.

WARRANTY CLAIM INFORMATION

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
FB32P0	Controller, Fuel Injection	Use the part number indicated at the end of reprogramming or look up the appropriate part number in the parts catalog.	01	48	0.4 Hrs.

Reprogramming Procedure

1. Log onto the SCAT system and access the Suzuki Pitstop.
2. Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
3. Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "3_SOFTWARE.EXE" if it is not already installed.
4. Download and unzip Suzuki Pass-Thru Reprogramming Data Base "4_DATABASE1.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. This step is only required to be done once to accommodate all vehicles covered under this TSB.
   NOTE: This Database "4_DATABASE1.EXE" has been updated with newer data for reprogramming without changing the file name. You are requested to download in order to update the database in your PC.
5. Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the ECM reprogramming software. If the message "[4028] ECU already has the latest version" appears, click "OK" and "Finish" and then continue to step 6.

   NOTE 1:

   If you believe the code "[4028] ECU already has the latest version" is false, check that the Database has been properly installed. See step   4  and try reprogramming again. If after installing the Database properly code 4028 appears again, no further action is required.

   NOTE 2:

   If the error code "[4040] Error occurred while rewriting. The programming is aborted." appears click "OK" and then click "Finish" and use the following procedure.

   1. Turn OFF the ignition.
   2. Disconnect the negative battery cable.
   3. Disconnect the ABS controller connector at the ABS control unit.
   4. Reconnect the negative battery cable.
   5. Start the reprogramming procedure again.
   6. After reprogramming is complete, disconnect the negative battery cable.
   7. Reconnect the ABS connector.
   8. Reconnect the negative battery cable.
   9. Continue to step 6.
6. Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.

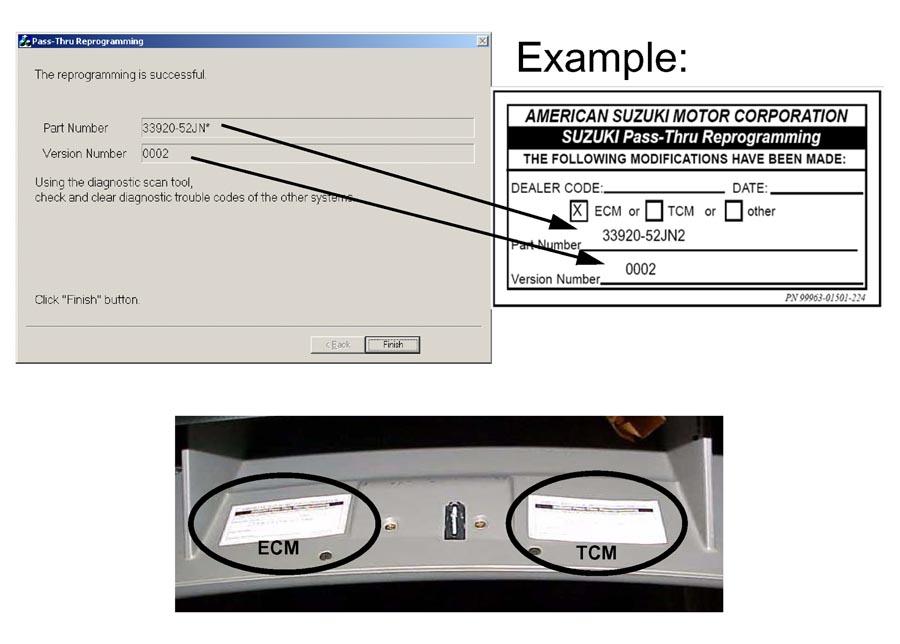

   Fig 1: Identifying Reprogram Label
