SERVICE MANUAL UPDATE: KEYLESS ENTRY SYSTEM CHECK

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 19 04286, Date of Issue: April 28, 2006

SUZUKI:	2003~2006 Grand Vitara (SQ625W), Grand Vitara XL-7 (JA627)
SECTION:	Body, Cab and Accessories

CONDITION

Keyless entry system check has been updated.

CAUSE

Added diagnostic steps.

CORRECTION

Please add the attached page to the appropriate section of your printed service manuals and disregard the old page.

AFFECTED SERVICE MANUALS

Name of Manuals

Part Numbers

Corresponding Pages

2003 MY Grand Vitara / Grand Vitara XL-7

99500-52D20-33E or 99500S52D20-33E

9F-4

2004 MY Grand Vitara / Grand Vitara XL-7

99500-52D30-33E or 99500S52D30-33E

9F-4

2005 MY Grand Vitara / Grand Vitara XL-7

99500S52D40-33E

9F-3⁽¹⁾ and 9F-4

2006 MY Grand Vitara XL-7

99500S52D50-33E

9F-4

⁽¹⁾	Cross out the section at the bottom of page 9F-3 titled "Keyless Entry System Check". The replacement section is included in the attached page.

NOTE: This update will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.

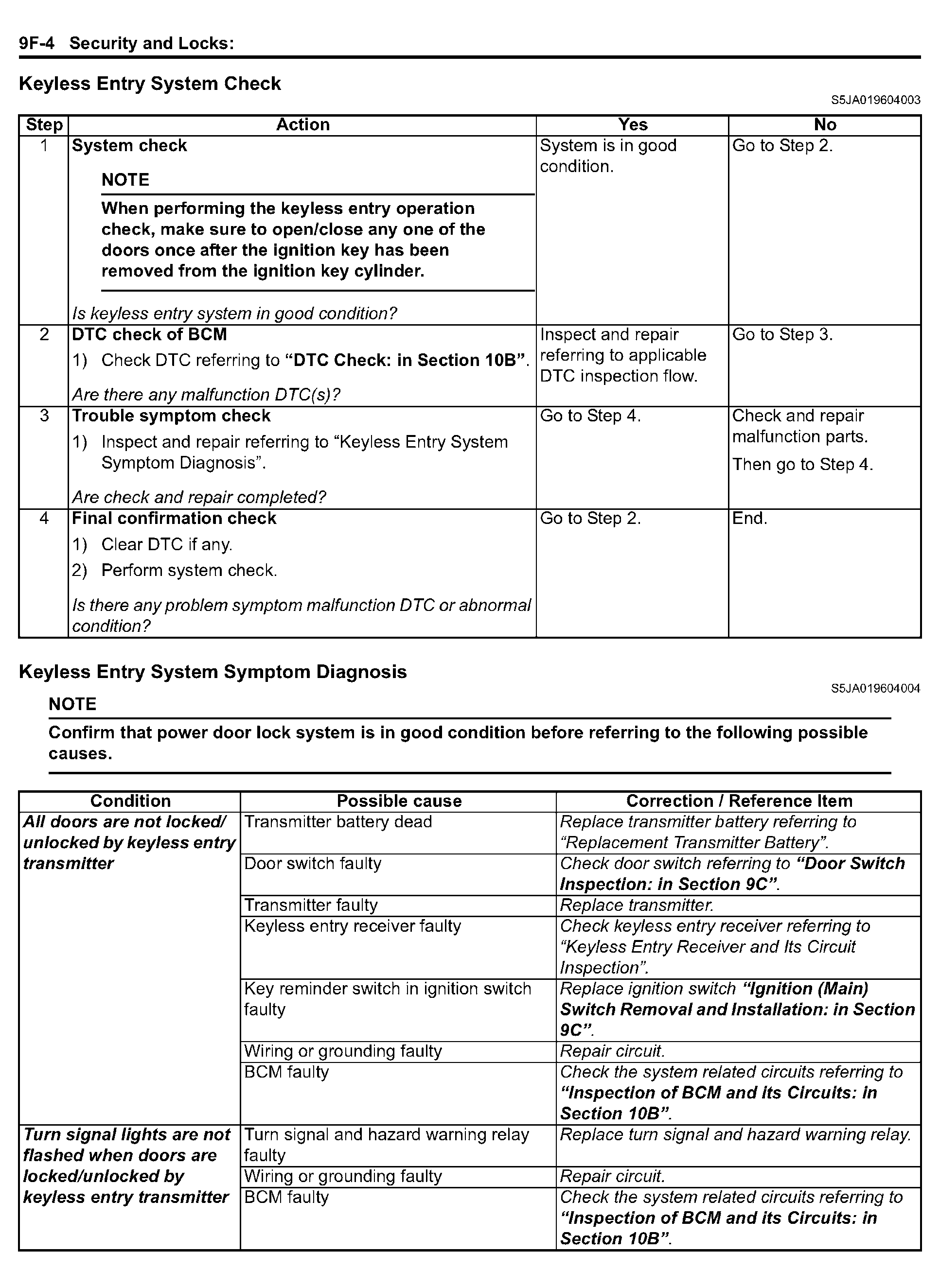

Fig 1: Attachment - Keyless Entry System Check & Diagnosis (9F-4)

Courtesy of SUZUKI OF AMERICA CORP.
