Spark Plug Removal and Installation: Installation

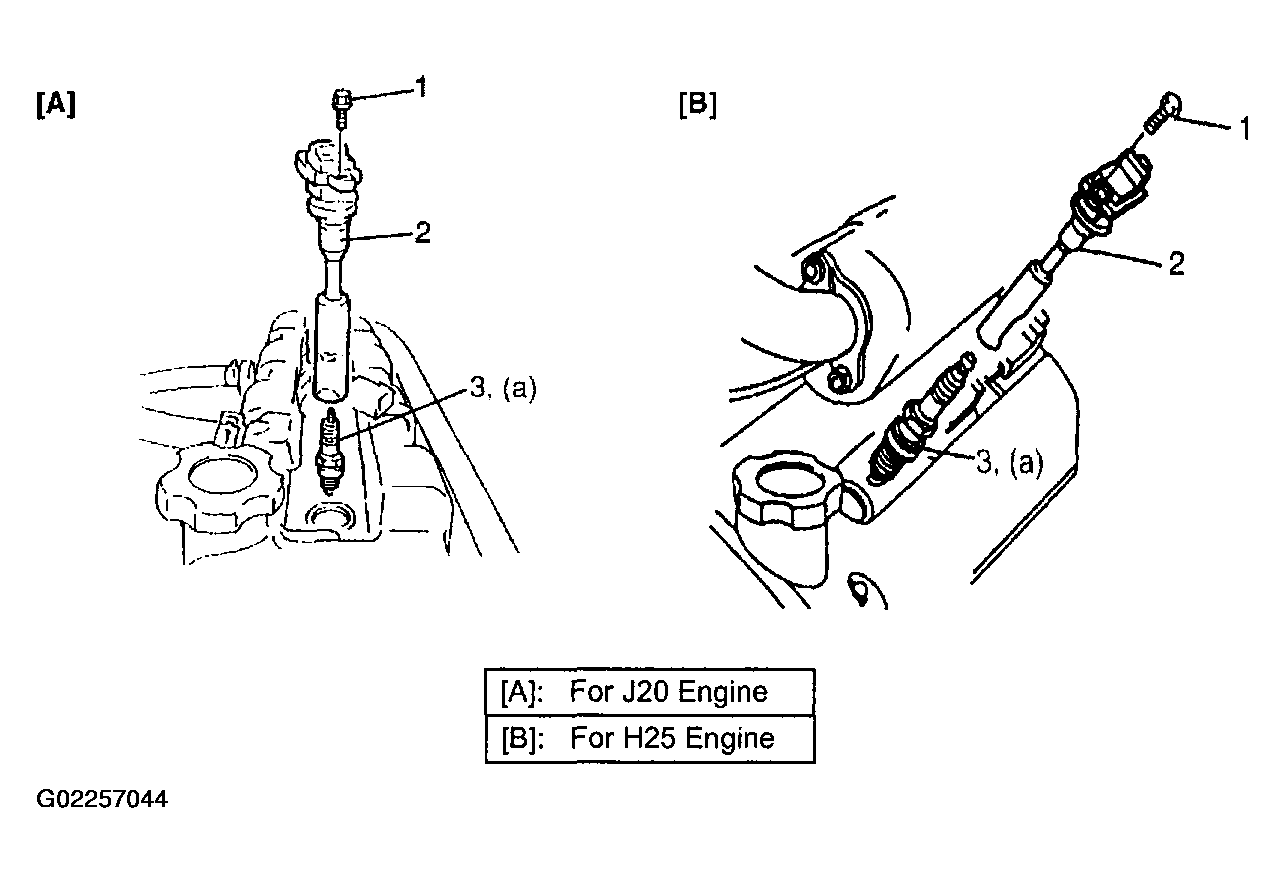

- Install spark plug (3) and tighten them to specified torque.
Tightening torque
Spark plug (a): 25 N.m (2.5 kg-m, 18.0 lb-ft)
- Install ignition coil assembly (2) securely.
- Tighten ignition coil bolt (1), and then connect ignition coil coupler.
- For H25 engine, install ignition coil cover.
