Engine and Emission Control System Description
When hoses are disconnected and system components are removed for service, reinstall components properly, and route and connect hoses correctly after service. Refer to Fig 1 .

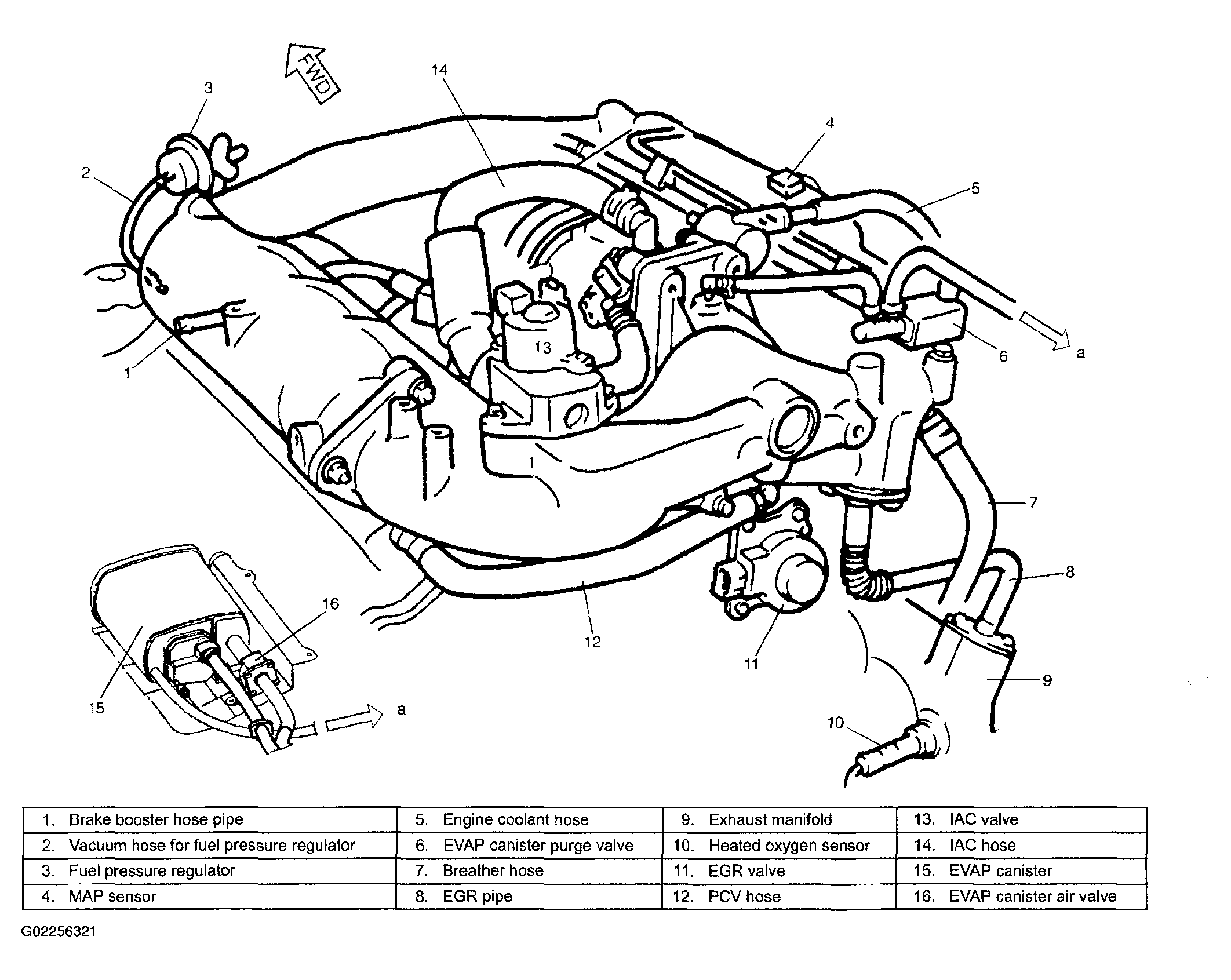

Engine and Emission Control System Hose and Piping Location
