Engine Symptom Diagnosis

Perform troubleshooting referring to the following table when ECM (PCM) has detected no DTC and no abnormality has been found in "VISUAL INSPECTION:  ".

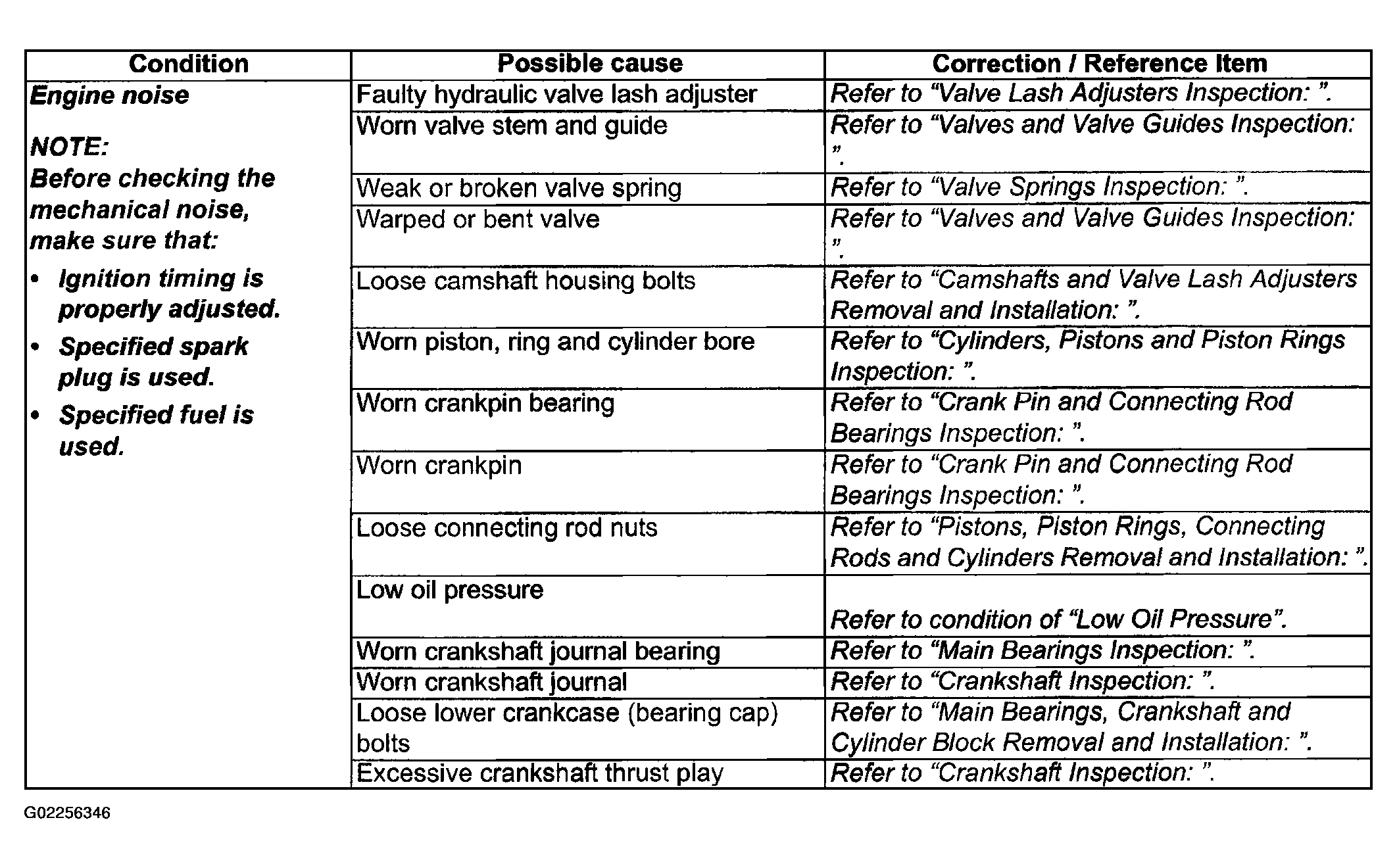

Fig 1: Engine Symptom Troubleshooting Chart (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

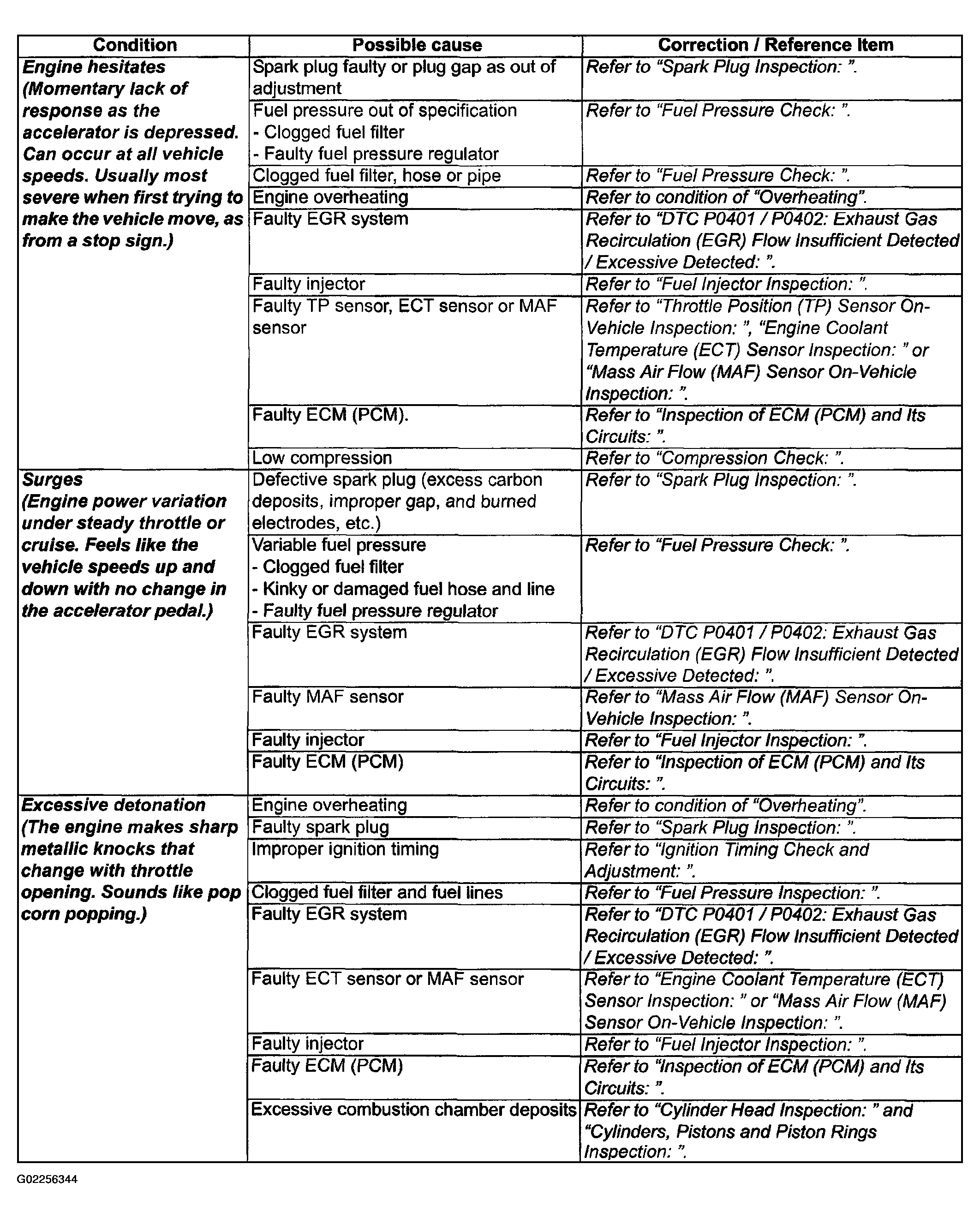

Fig 2: Engine Symptom Troubleshooting Chart (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

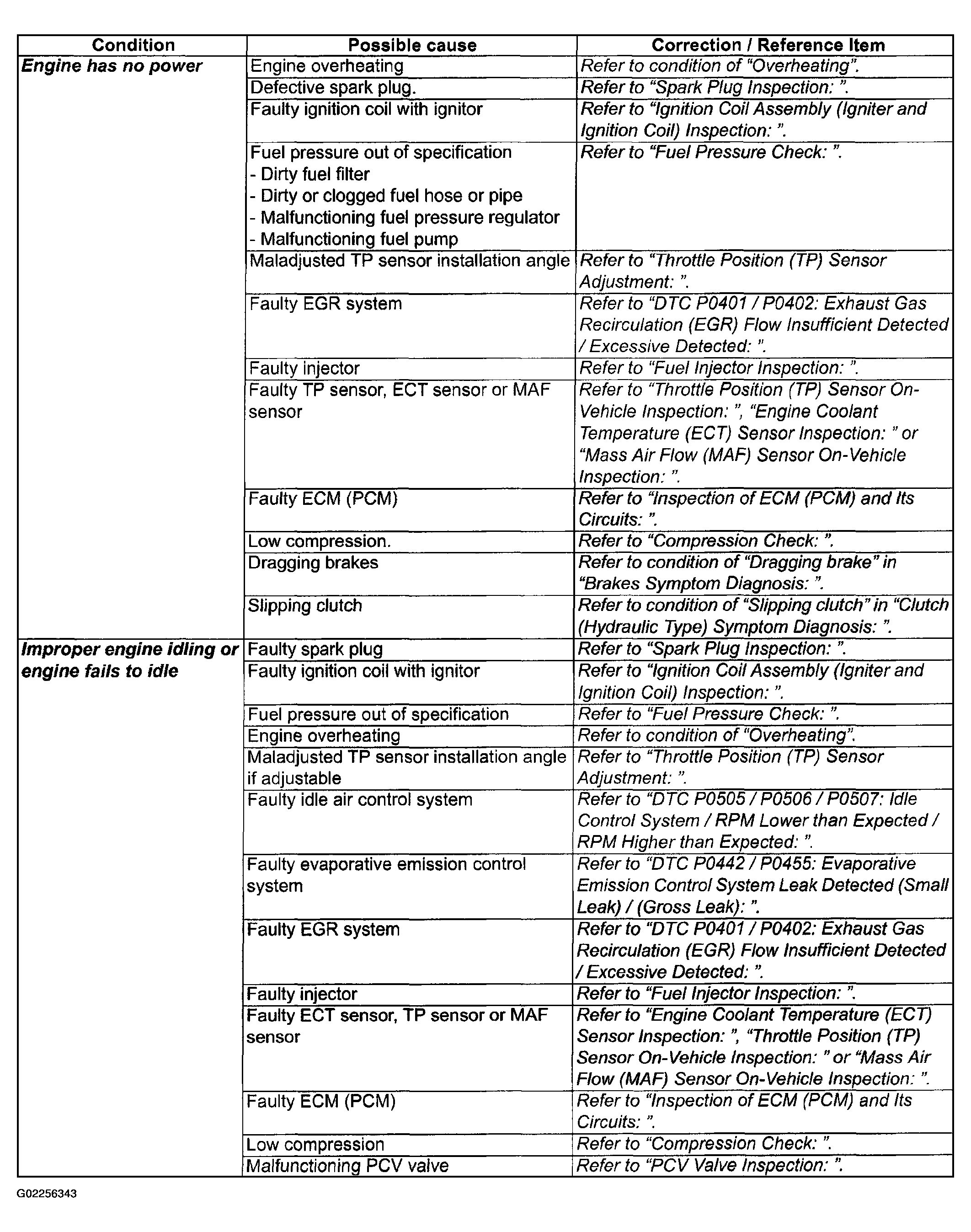

Fig 3: Engine Symptom Troubleshooting Chart (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

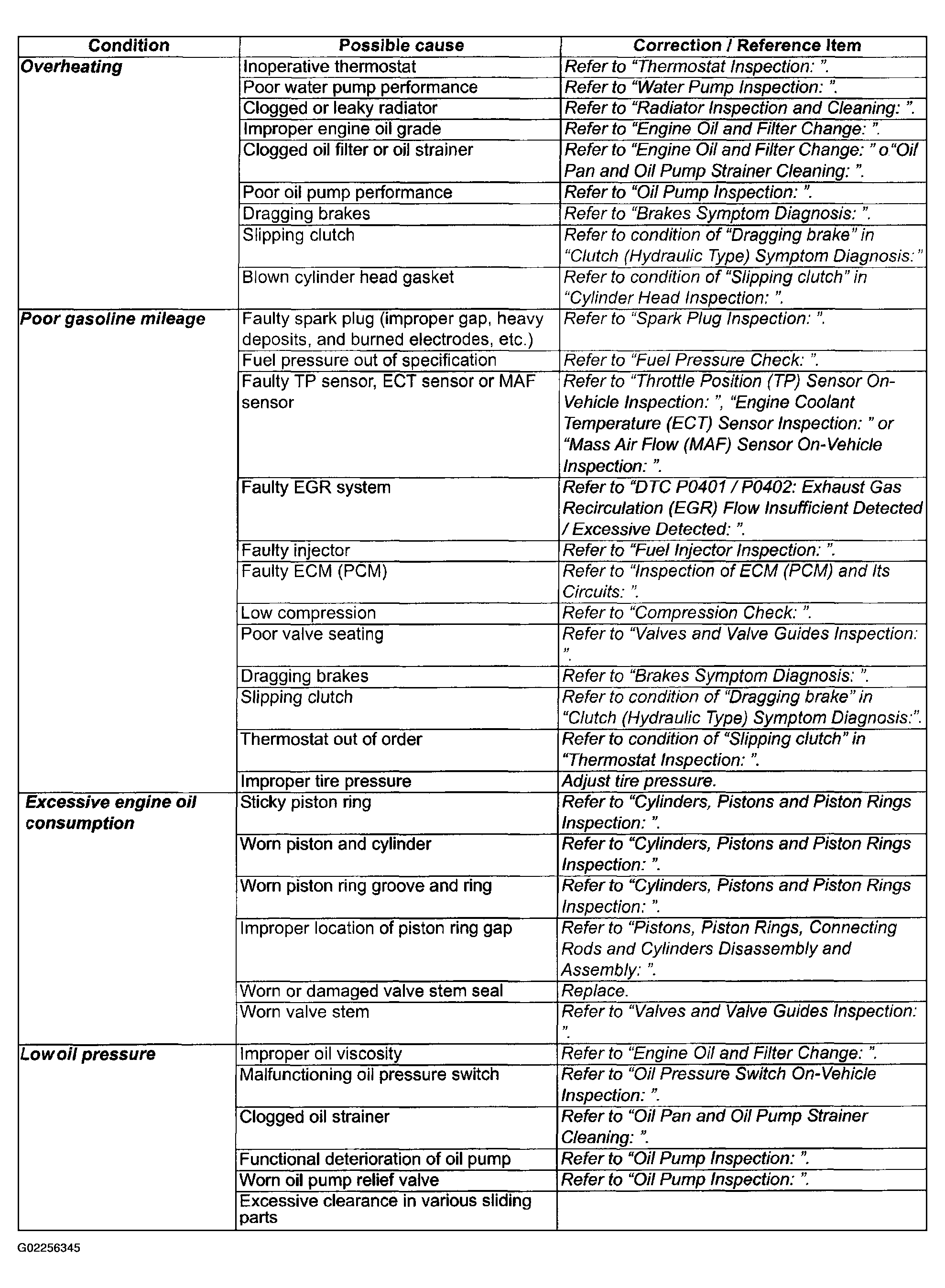

Fig 4: Engine Symptom Troubleshooting Chart (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

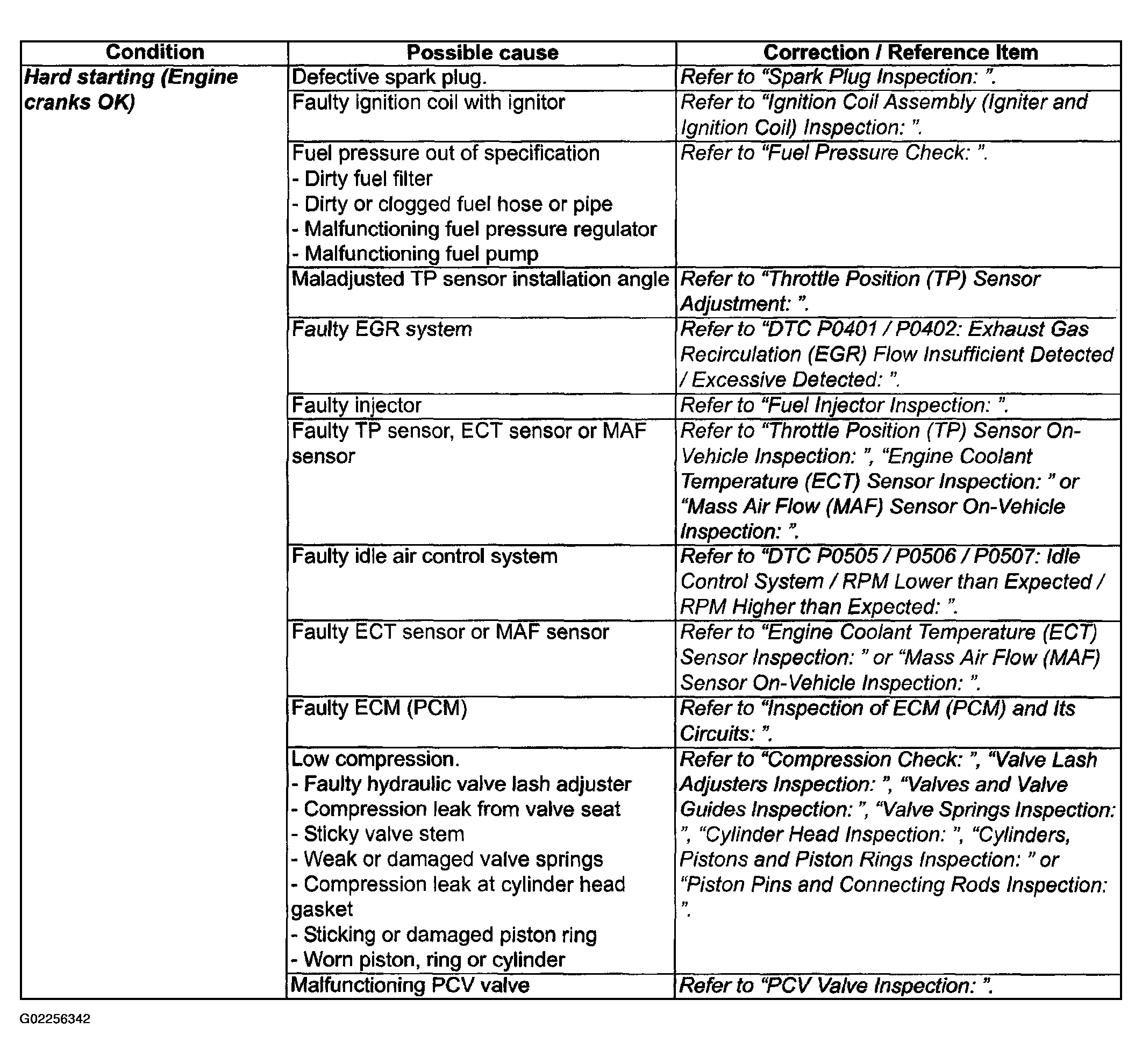

Fig 5: Engine Symptom Troubleshooting Chart (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
