Wiring Diagram / Circuit Description

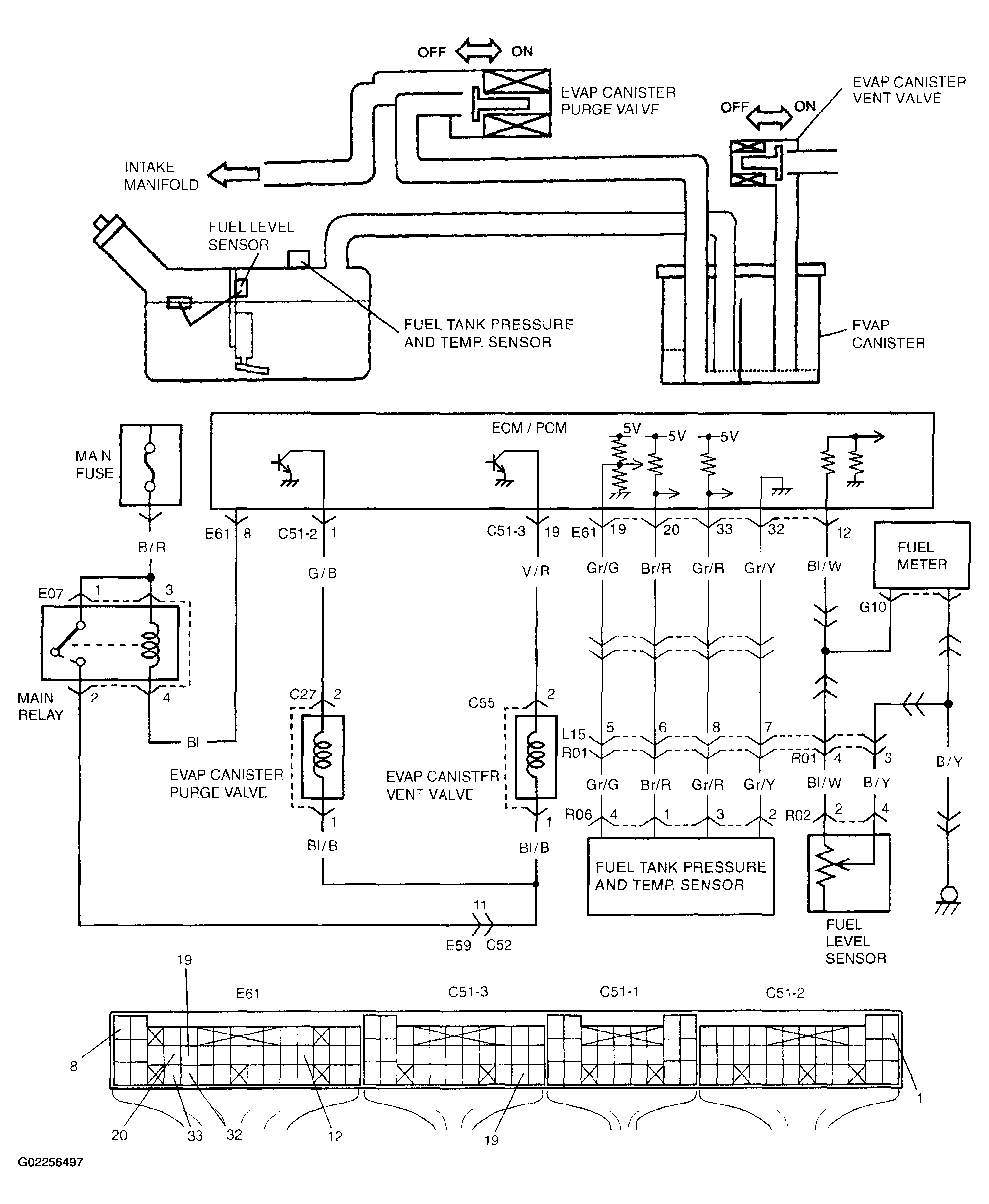

Fig 1: DTC P0463: Fuel Level Sensor Circuit High Input Wiring Diagram/Circuit Description
G02256497Courtesy of SUZUKI OF AMERICA CORP.
