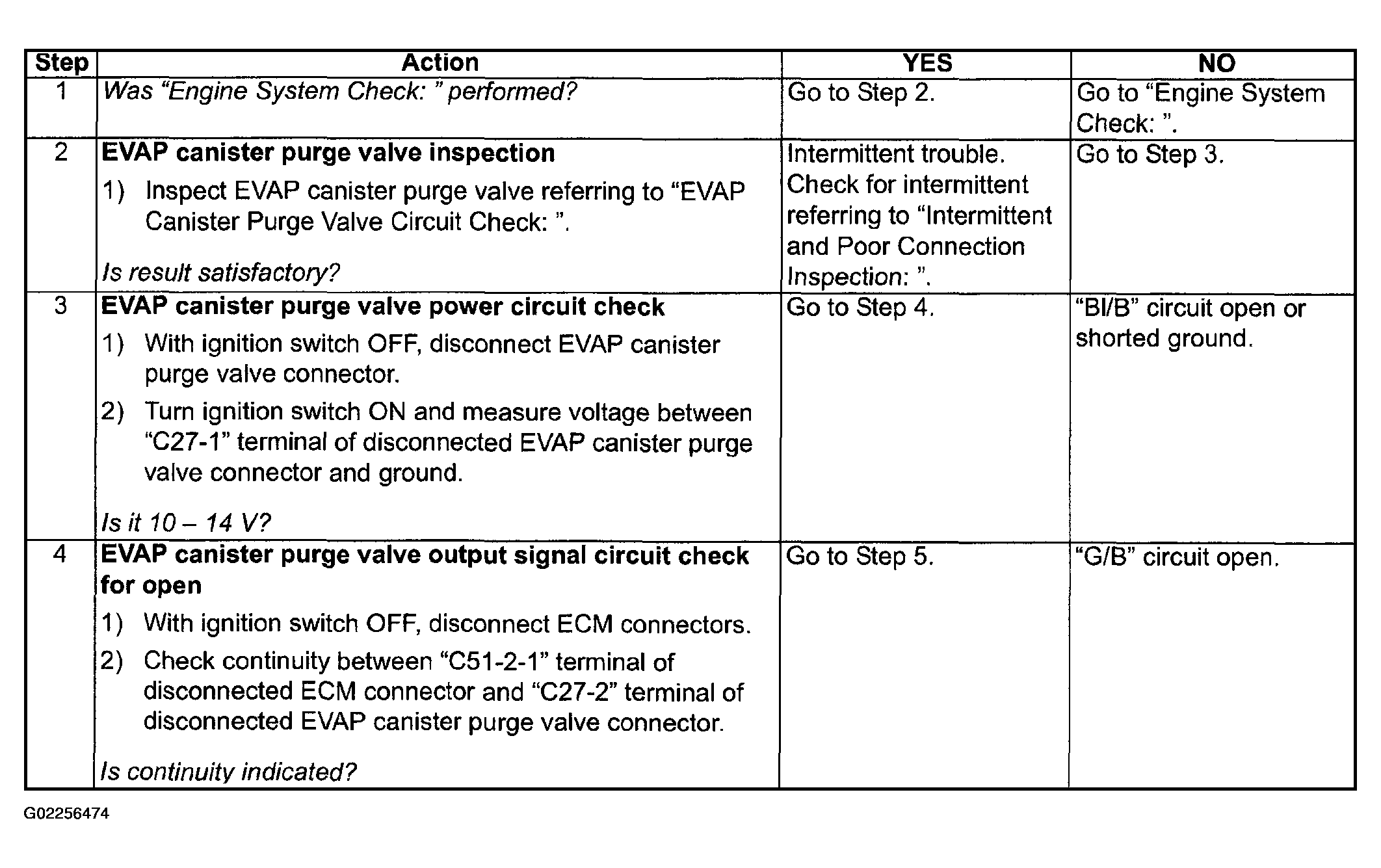

Fig 1: DTC P0444 / P0496: Evaporative Emission Control System Purge Control Valve Circuit Open/EVAP System Flow During Non-Purge Troubleshooting Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

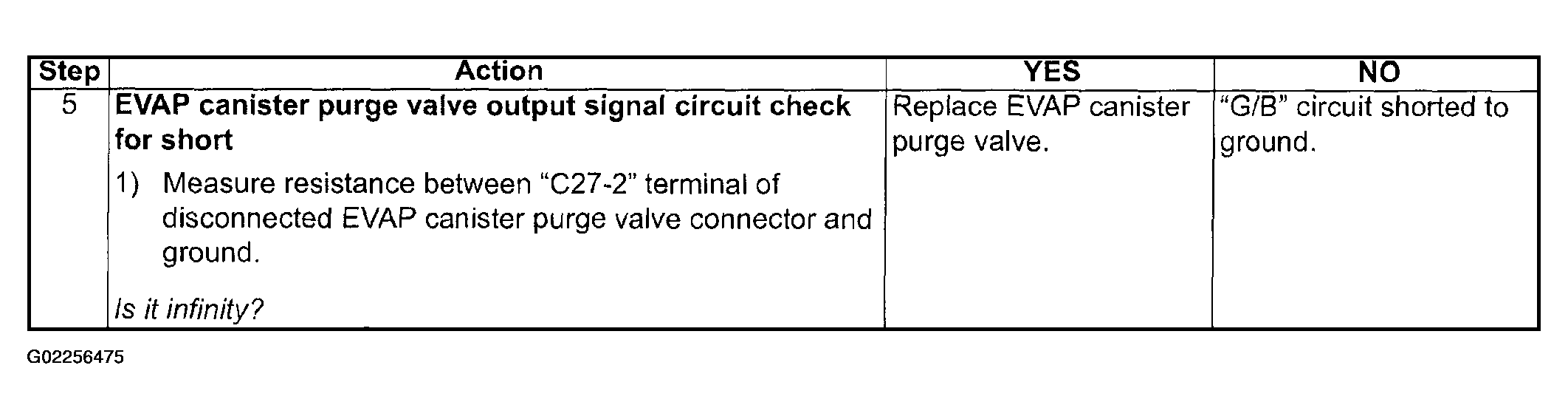

Fig 2: DTC P0444 / P0496: Evaporative Emission Control System Purge Control Valve Circuit Open/EVAP System Flow During Non-Purge Troubleshooting Chart (2 Of 2)
