DTC Troubleshooting

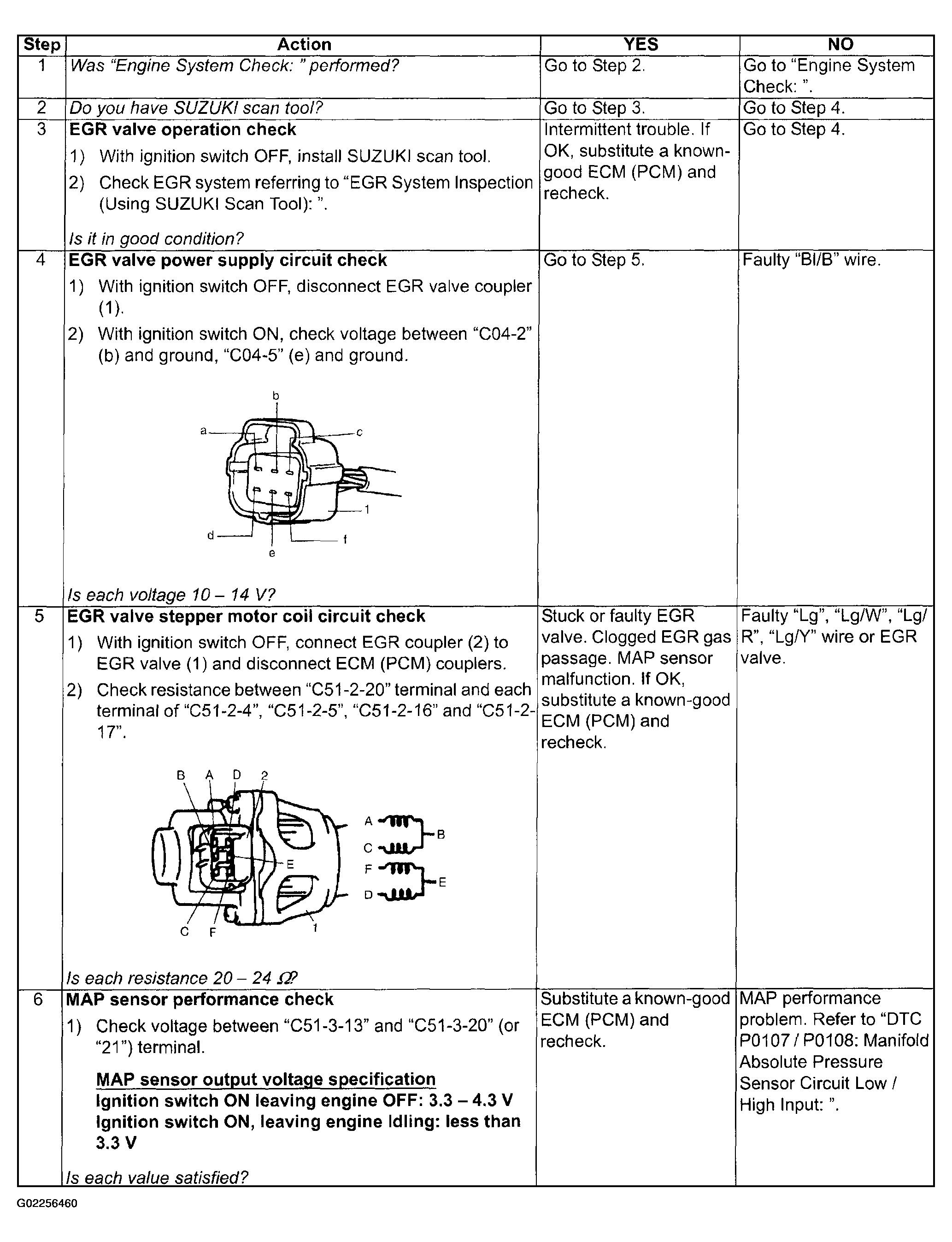

Fig 1: DTC P0401 / P0402: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected/Excessive Detected Troubleshooting Chart
G02256460Courtesy of SUZUKI OF AMERICA CORP.
