DTC P0113: Intake Air Temperature (IAT) Sensor Circuit High Input: Wiring Diagram

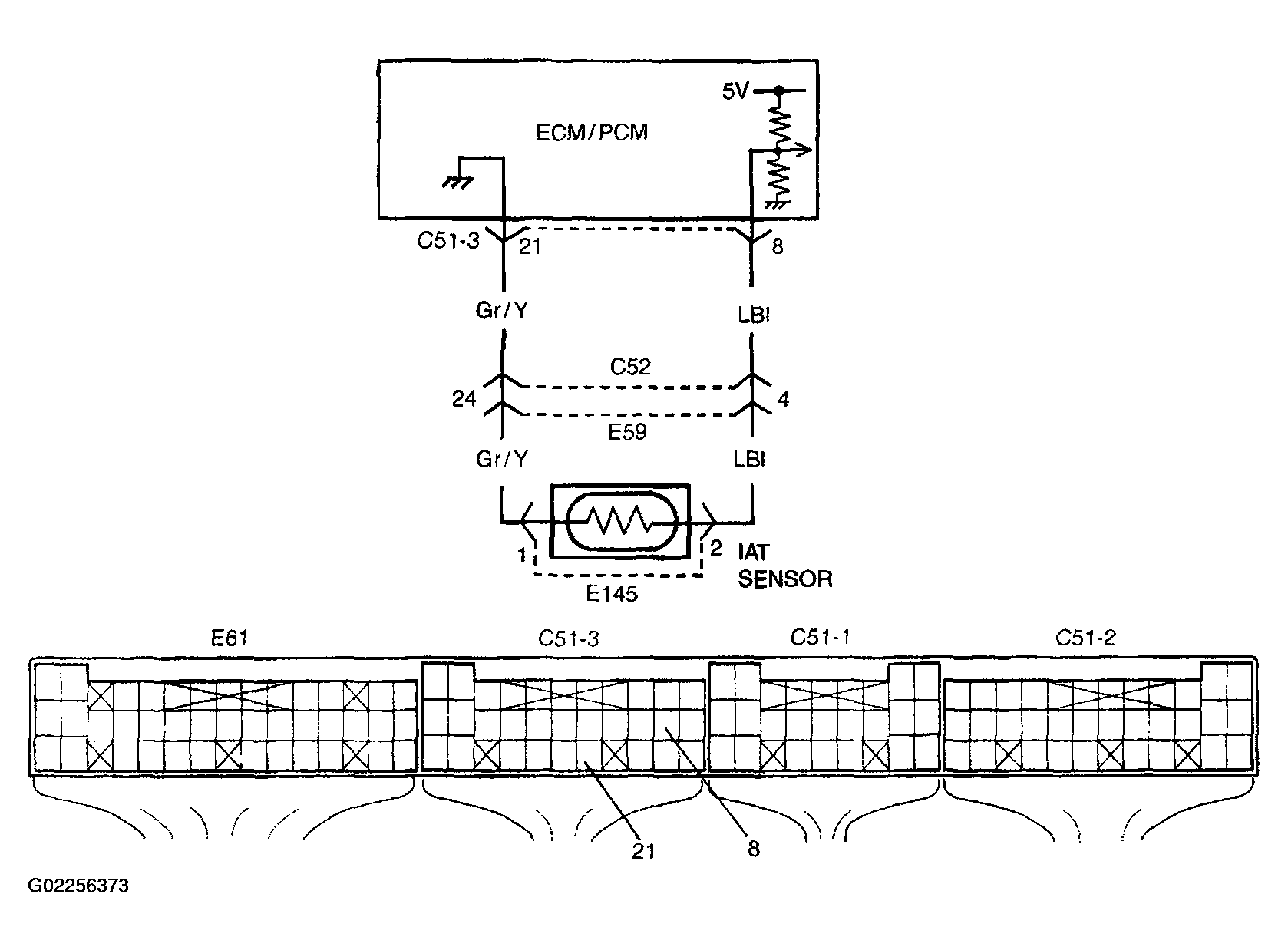

Fig 1: DTC P0113: Intake Air Temperature Sensor Circuit High Input Wiring Diagram
G02256373Courtesy of SUZUKI OF AMERICA CORP.
