A/C Condenser Fan Motor Relay Control System Check: Wiring Diagram

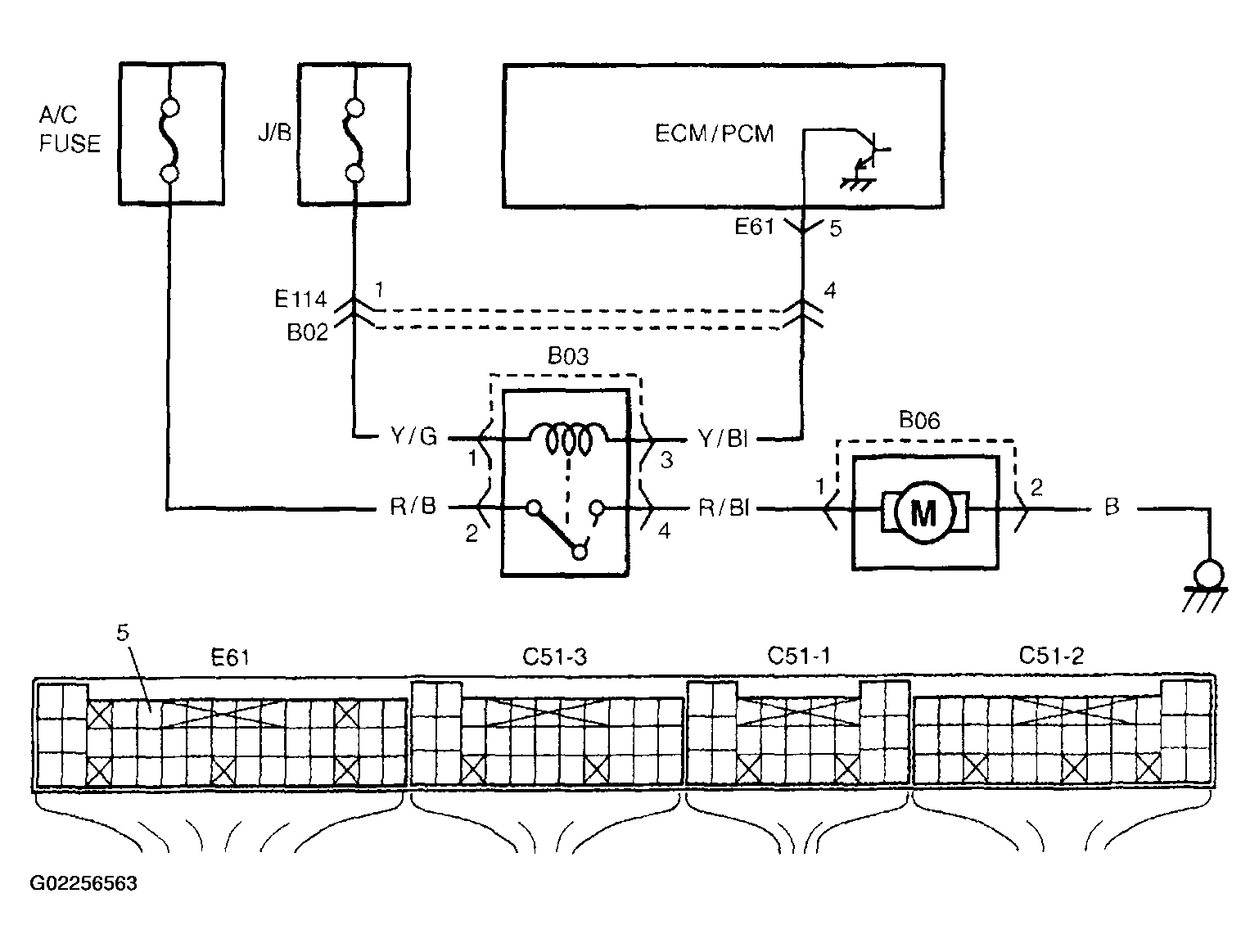

Fig 1: A/C Condenser Fan Motor Relay Control System Wiring Diagram
G02256563Courtesy of SUZUKI OF AMERICA CORP.
