Preliminary Setup

  1. Inspect battery for state of charge. If it is not in good condition, recharge battery and/or repair charging system as necessary.
  2. Inspect visual damage and leaks, repair as necessary.
  3. Connect SUZUKI scan tool (1) to DLC (2) and turn ignition switch to ON position. Repair any DTCs prior to starting automated bleeding.

    Special tool

    (A): 09931-76011 (SUZUKI scan tool)

    (B): Mass storage cartridge for Tech 1

    (C): 09931-76030 (16/14 pin DLC adapter)

    (D): 09932-66530 (Interface cartridge)

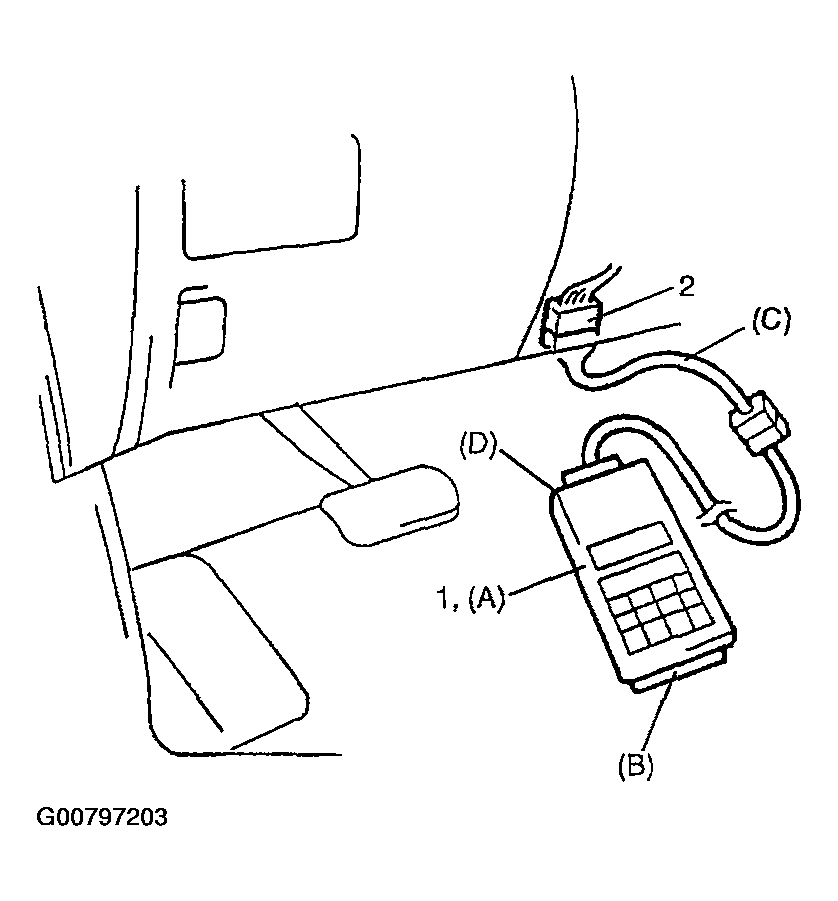

    Fig 1: Identifying Special Tool
    G00797203Courtesy of SUZUKI OF AMERICA CORP.
  4. Turn ignition switch to "LOCK" position.
  5. Connect pressure bleeding tool as per manufacturer's instructions, if available.
    NOTE: Pressure bleeding tool is used throughout bleeding procedure to apply pressure to brake lines. If not available, apply pressure by depressing brake pedal only in the steps applying pressure is necessary.
  6. Raise and suitable support vehicle.
  7. Remove all four wheels.
  8. Remove bleeder plug cap (1).

    Attach a vinyl tube (see-through tube) (2) to bleeder plug of wheel cylinder, and insert the other end into container (3).

    Fig 2: Removing Bleeder Plug Cap
    G00797204Courtesy of SUZUKI OF AMERICA CORP.
  9. Pressurize the bleeding tool (if available) to 2.4 kg/cm2 (35 psi).
