Transmission and Drivetrain: Specifications

FRONT DRIVE SHAFT





Tightening Torque Specifications

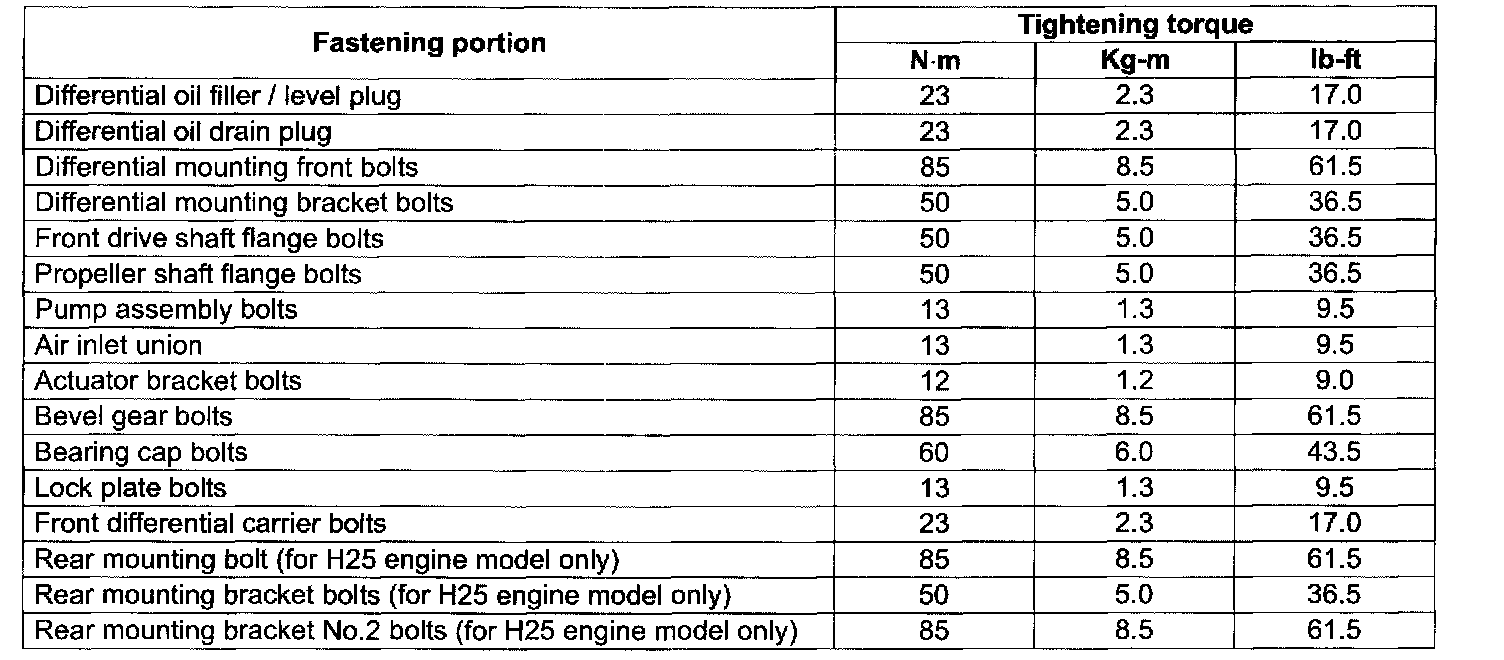

FRONT DIFFERENTIAL





Tightening Torque Specifications

REAR DIFFERENTIAL





Tightening Torque Specifications

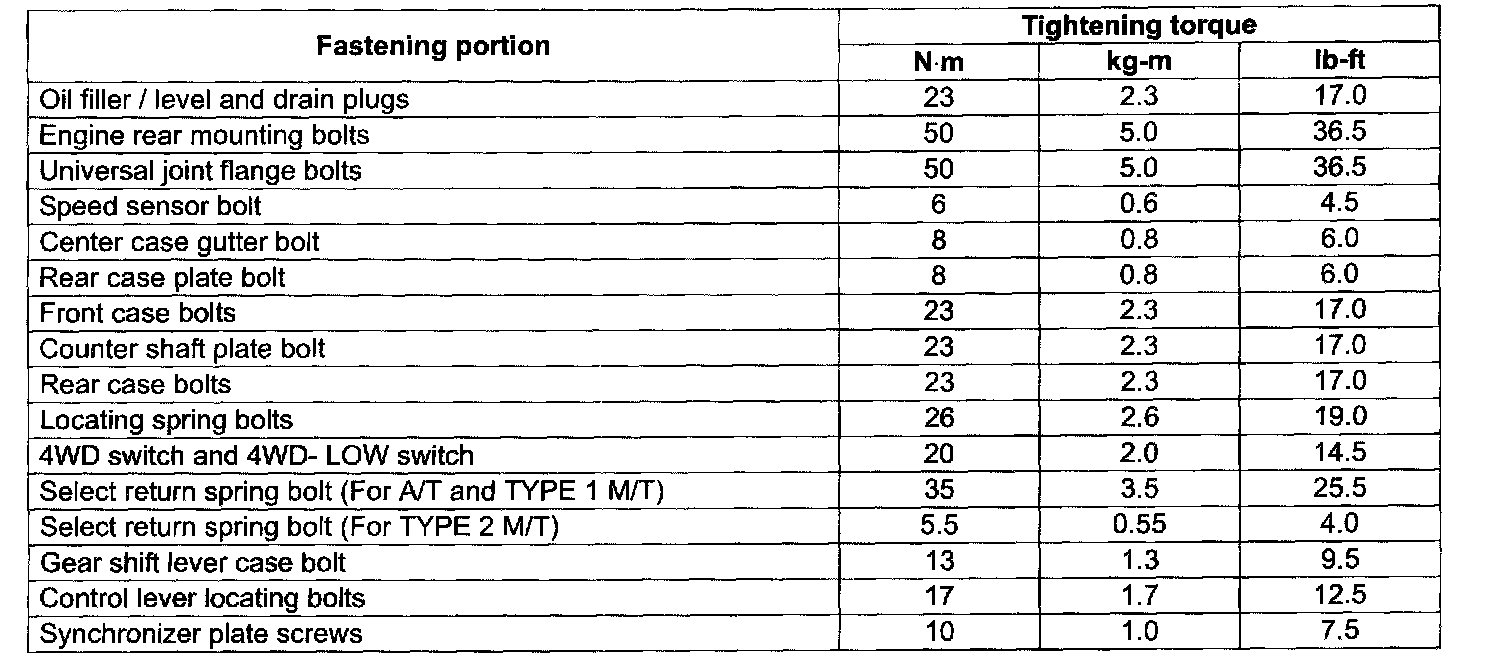

TRANSFER





Tightening Torque Specifications

PROPELLER SHAFT





Tightening Torque Specifications

AUTOMATIC TRANSMISSION

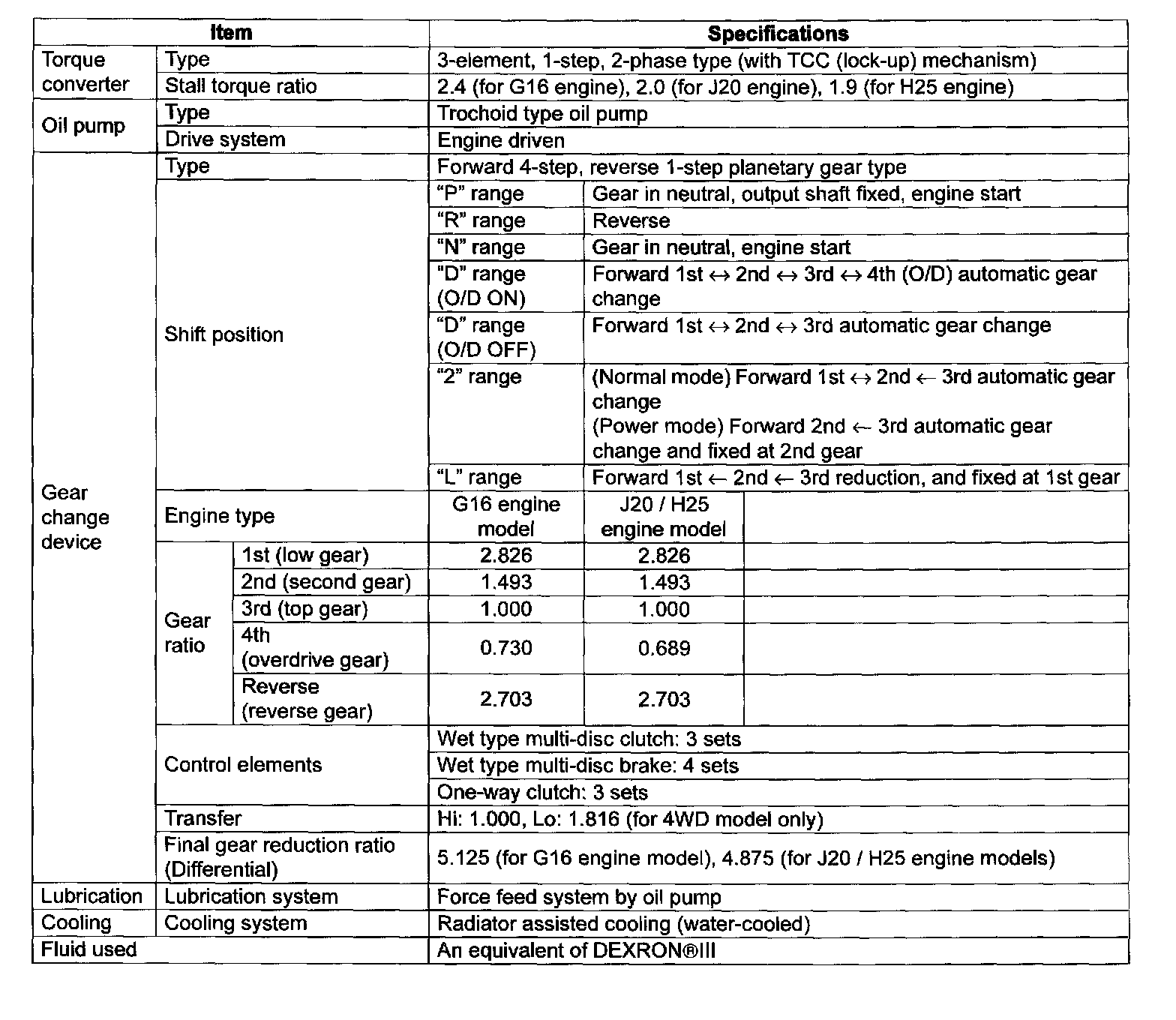

General Specifications

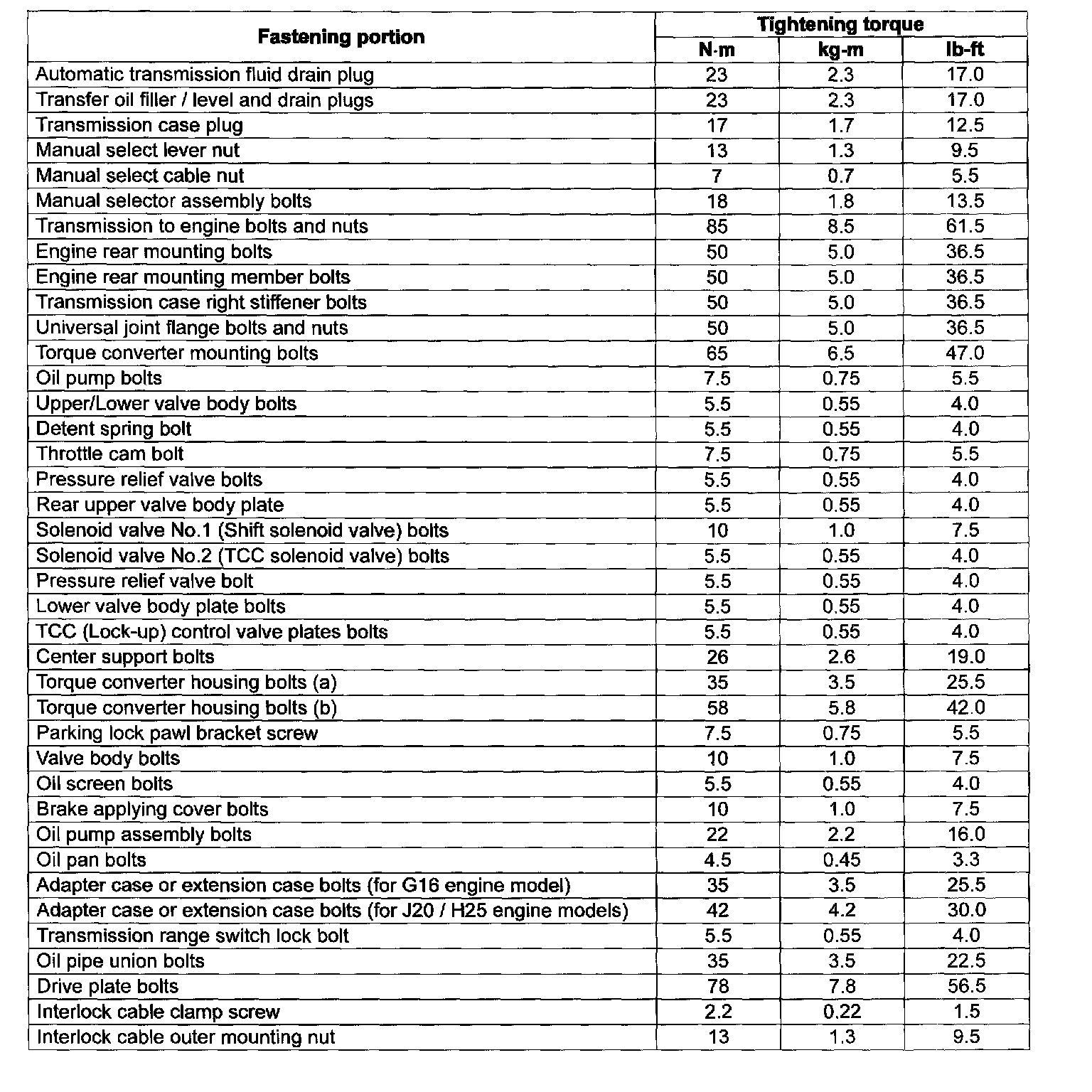

Tightening Torque Specifications

MANUAL TRANSMISSION

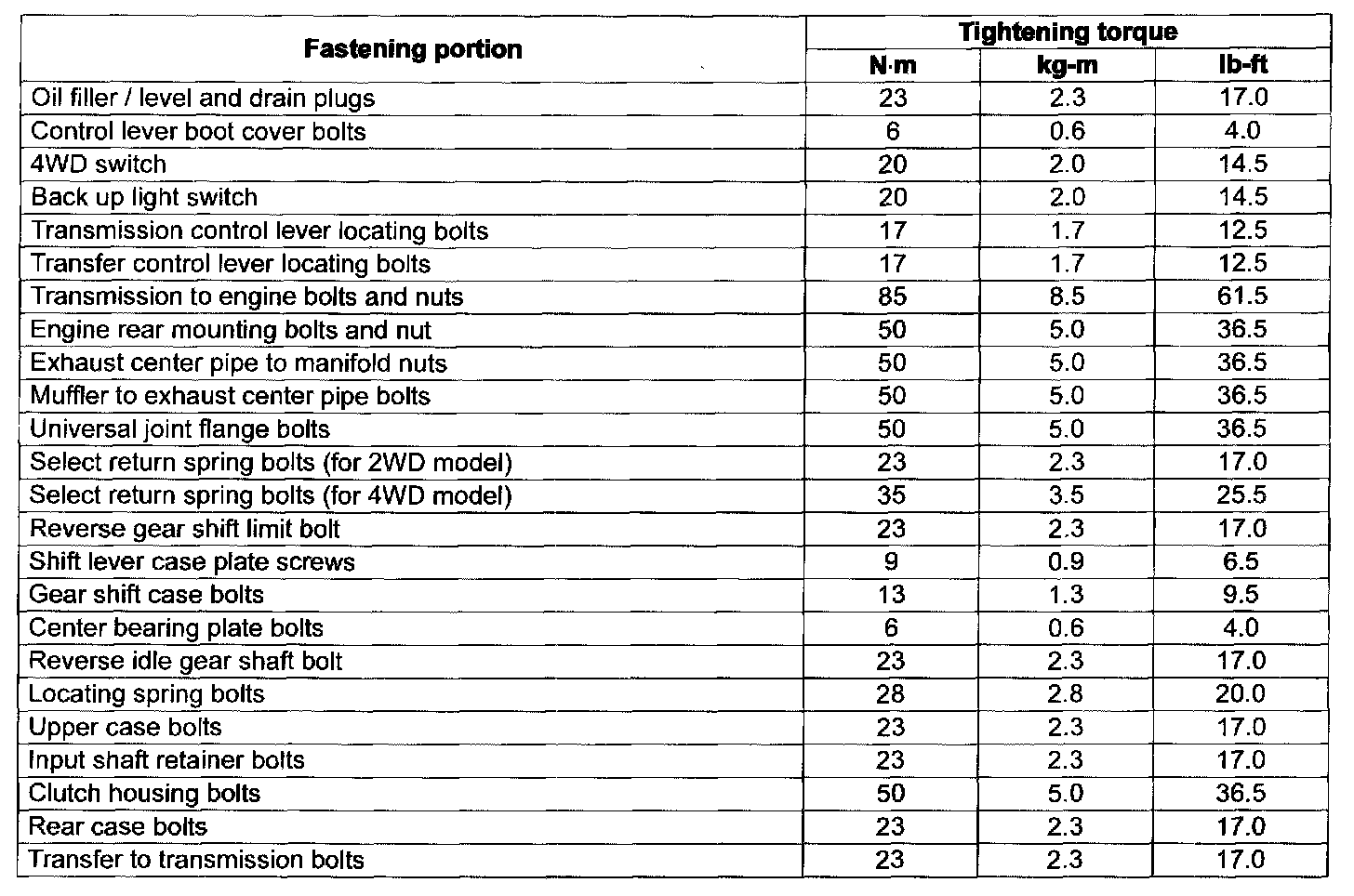

Type 1





Tightening Torque Specifications

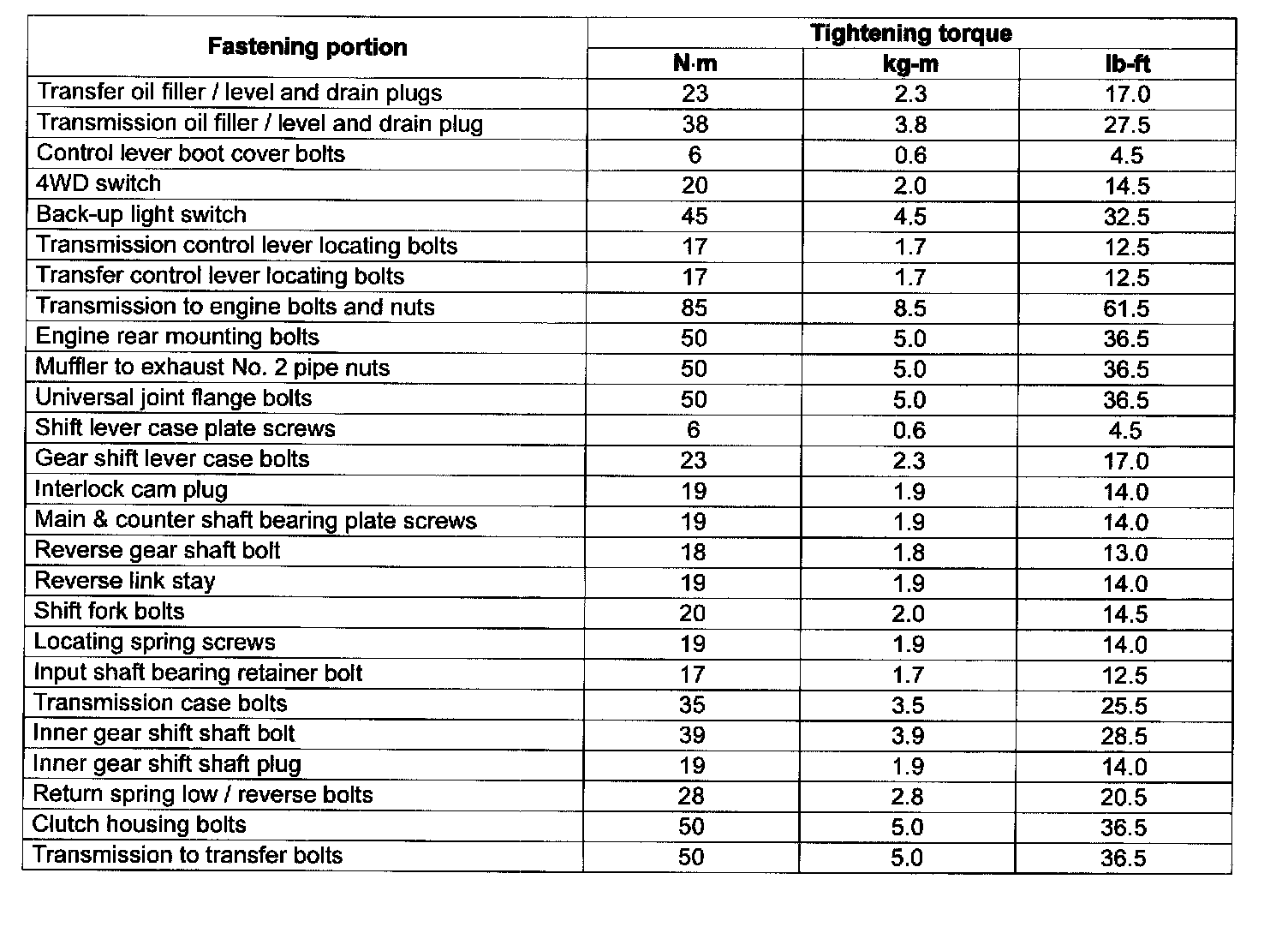

Type 2





Tightening Torque Specifications

CLUTCH





Tightening Torque Specifications
