Inspection

Solenoid Valves (Shift Solenoid Valves and TCC Solenoid Valve) On-Vehicle Inspection

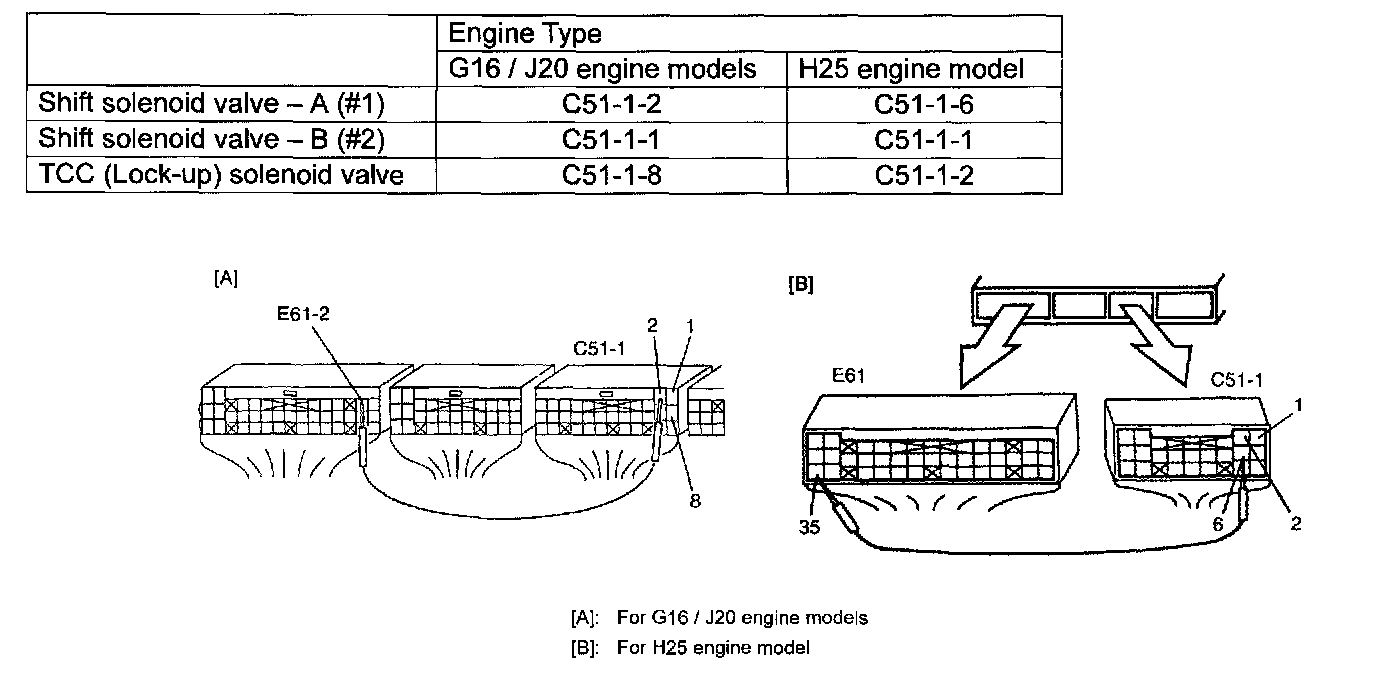

With couplers of PCM disconnected and using service wire as shown, check each solenoid valve for clicking sound.
