Fuel Pump Circuit Inspection

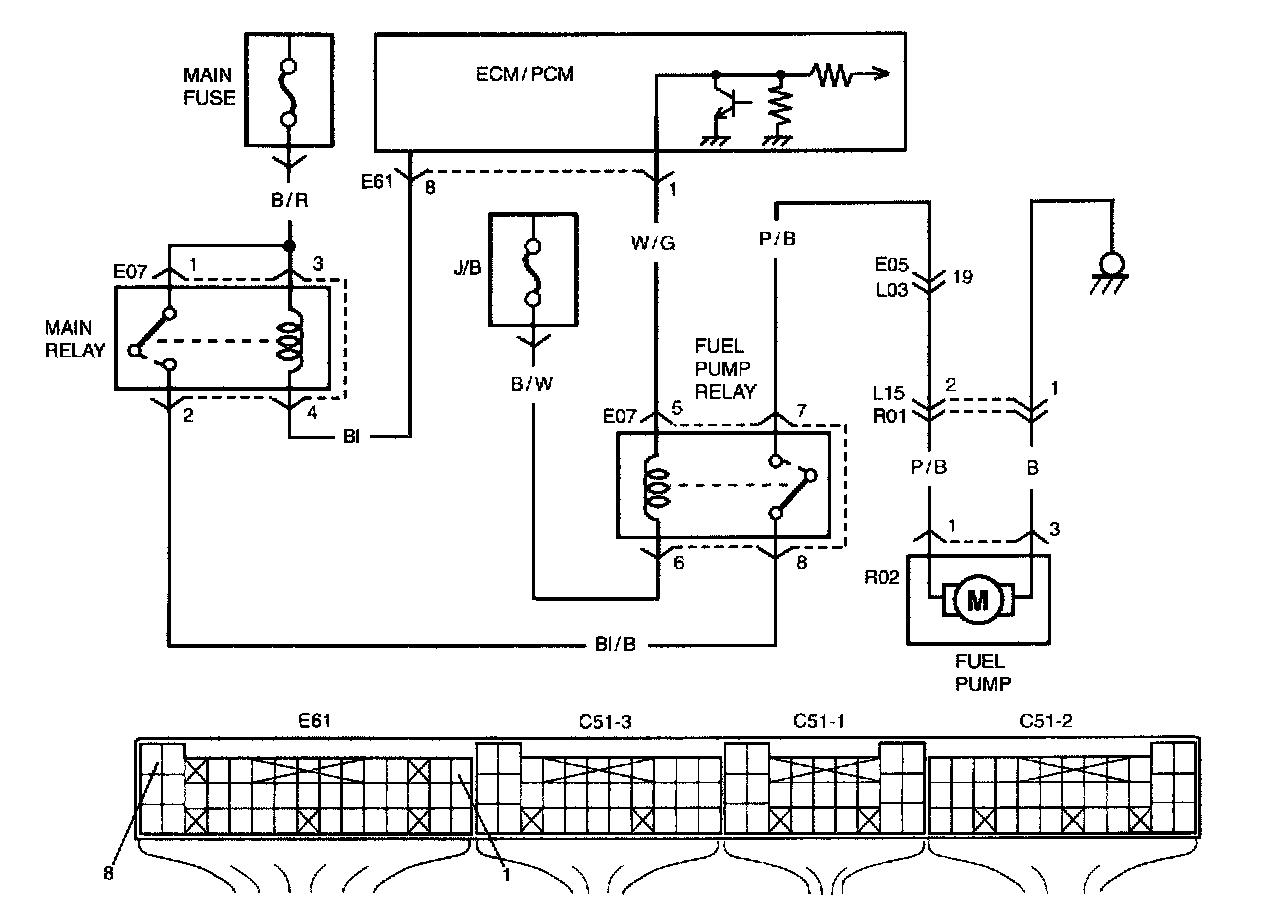

Wiring Diagram:

Circuit Description
Fuel pump relay is turned ON
- for 3 sec. after ignition switch is turned ON
- while start engine signal is inputted.
- while engine is running.

Step 1:

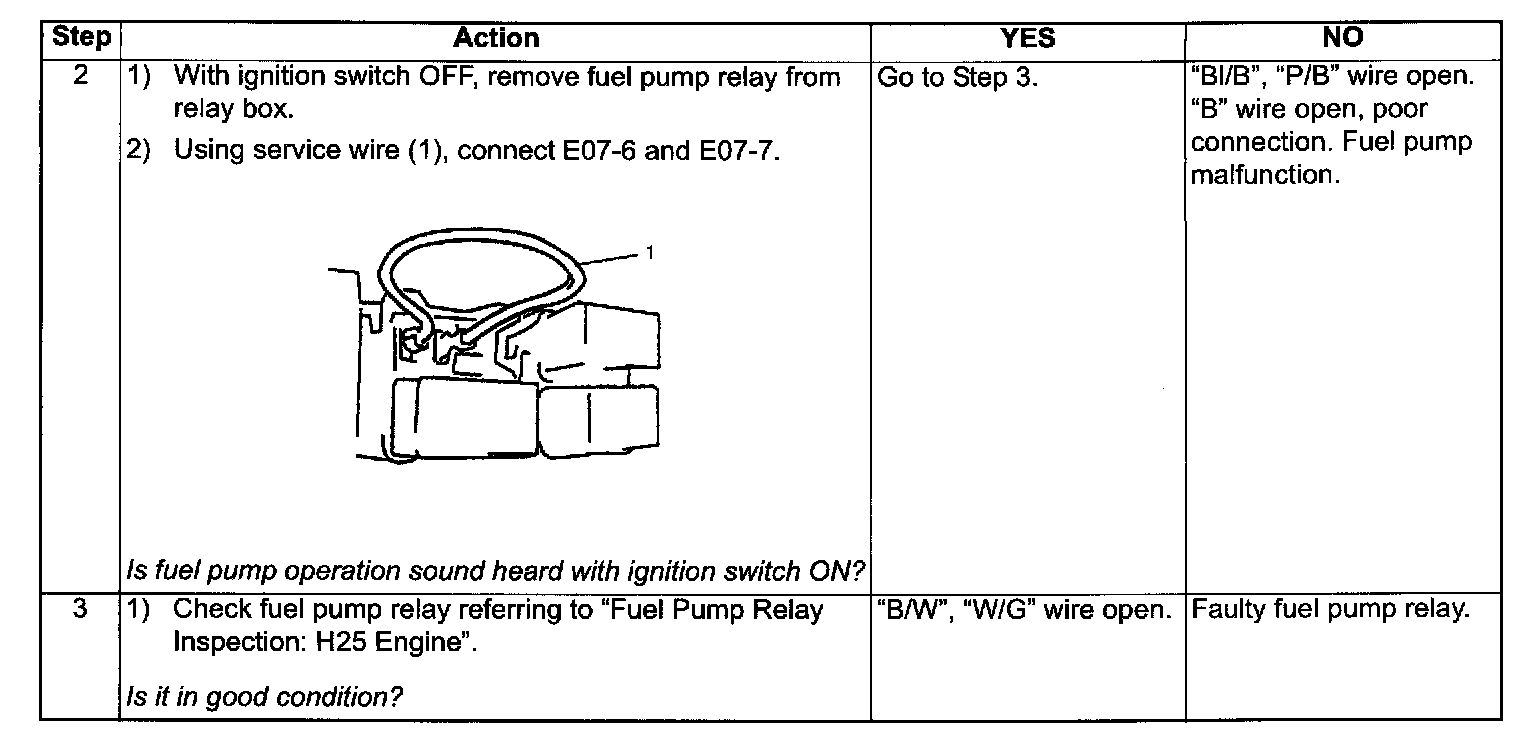

Step 2 - 3:

Troubleshooting
