Blower Motor

Blower Motor Removal and Installation

Removal



1. Disconnect negative (-) cable at battery.
2. Disable air bag system. Refer to Disabling Air Bag System.
3. Remove ECM (PCM) with bracket from blower unit.

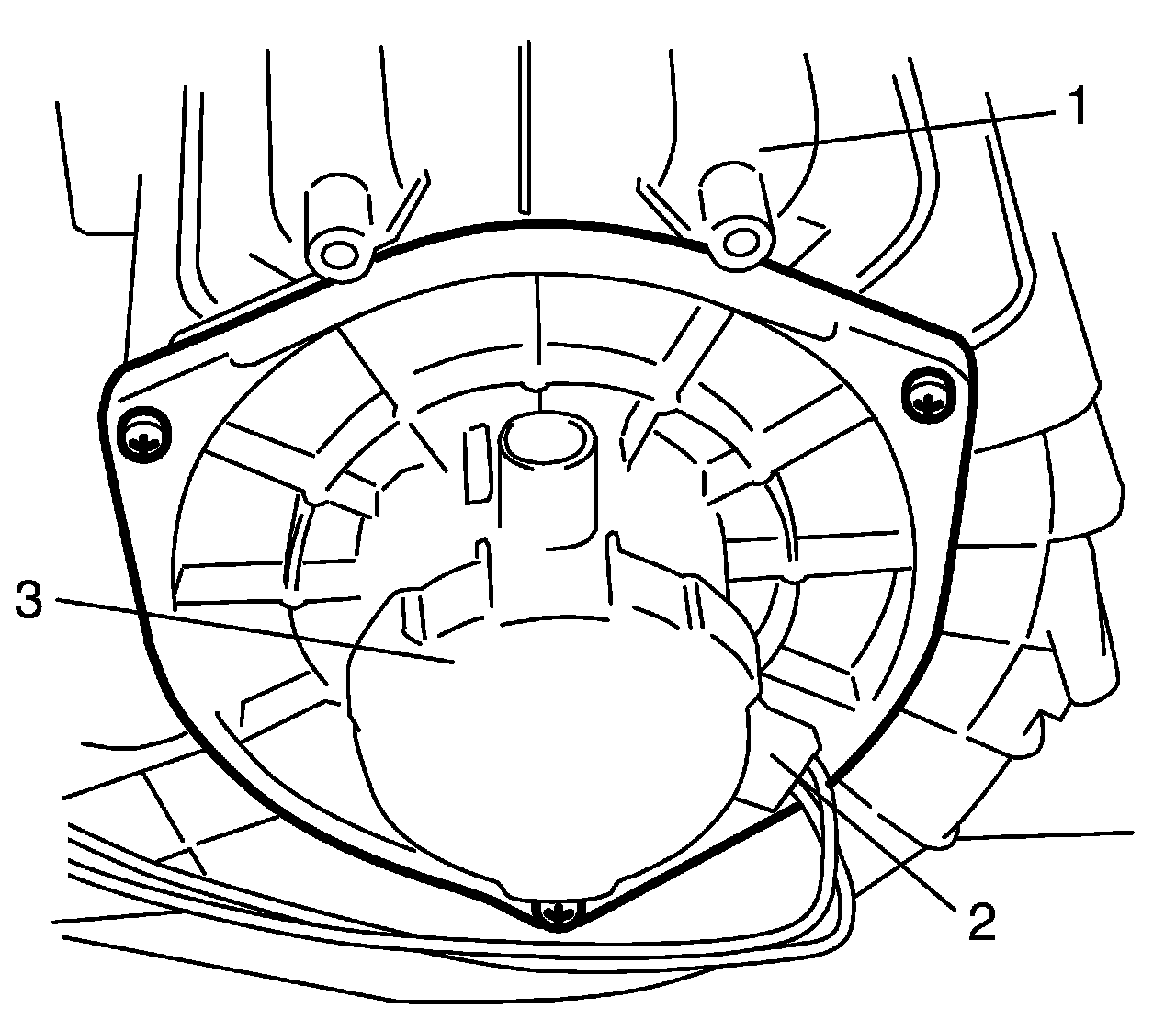

4. Disconnect blower motor lead wire (2) at coupler.
5. Remove blower motor (3) from blower unit (1).

Installation
1. Reverse removal procedure for installation.
2. Enable air bag system. Refer to Enabling Air Bag System.
