Power Door Lock Actuator: Testing and Inspection

Power Door Lock Actuator Inspection

1. Disconnect power door lock actuator coupler.

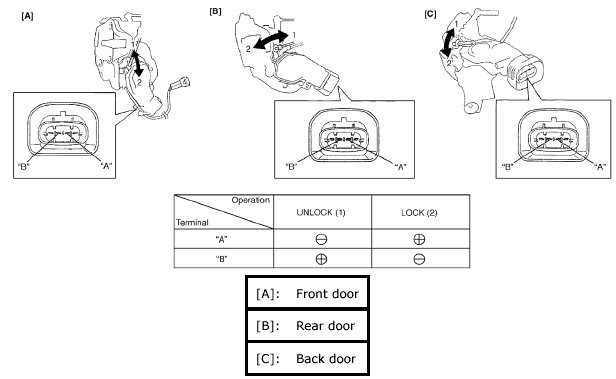

2. Connect 12 V battery positive and negative terminals to the door lock actuator terminals shown below.
If it does not follow the table s operation, replace the faulty door lock actuator.
